ProLine Convection Grilles - 12 Pages

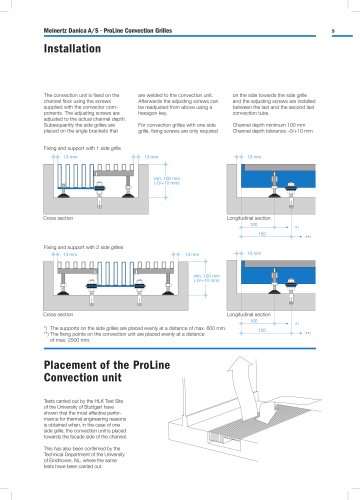

Meinertz Danica A/S ProLine Convection Grille s Installation 9 The convection unit is fixed on the channel floor using the screws supplied with the convector com-ponents . The adjusting screws are adjusted to the actual channel depth . Subsequently the side grilles are placed on the angle brackets that are welded to the convection unit Afterwards the adjusting screws can be readjusted from above using a hexagon key. For convection grilles with one side grille, fixing screws are only required on the side towards the side grille and the adjusting screws are installed between the last and the second last convection tube . Channel depth minimum 100 mm Channel depth tolerance -0/+10 mm Fixing and support with 1 side grille 13 mm innn 9-9- 13 mm min . 100 mm (-0/+10 mm) Cross section Longit udinal section -, 100 , -գ 3-( 150 5-► ) 3 * Fixing and support with 2 side grilles --4-13 mm 6 6 13 mm min 100 mm (-0/+10 mm) Cross section *) The supports on the side grilles are placed evenly at a distance of max . 600 mm . **) The fixing points on the convection unit are placed evenly at a distance of max . 2500 mm . Longitudinal section 100 ) Placement of the ProLine Convection unit Tests carried out by the HLK Test Site of the University of Stuttgart have shown that the most effective performance for thermal engineering reasons is obtained when, in the case of one side grille, the convection unit is placed towards the facade side of the channel . This has also been confirmed by the Technical Department of the University of Eindhoven, NL, where the same tests have been carried out .
-
P. 1
-
P. 4
4 Meinertz Danica A/S ProLine Convection Grilles Type designations and minimum widths Side grille Convection unit Side grille / Connection side Max .... -
P. 5
Meinertz Danica A/S ProLine Convection Grilles 5 Installation possibilities for ProLine Convection Grilխles and ProLine Side Grilles E A E B Meinertz... -
P. 6
SkyLine-Plint_de.indd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:9.00pt... -
P. 7
table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif;... -
P. 8
8 Meinertz Danica A/S ProLine Convection Grilles Socket connections B B Facade C C E - - -■ ■-■ ■- - - _ _ ■ ■... -
P. 9
-
P. 10
10 Meinertz Danica A/S ProLine Convection Grilles Installation in steel channels Meinertz ProLine in steel channels On account of the construction of... -
P. 11
Meinertz Danica A/S ProLine Convection Grilles 11 SkyLine Facade Convectors Meinertz SkyLine Facade Convectors Meinertz SkyLine are heating թlments... -
P. 12
12 Meinertz Danica A/S ProLine Convection Grilles Ordering information For correct processing and exթcution of your order, please let us have the...
