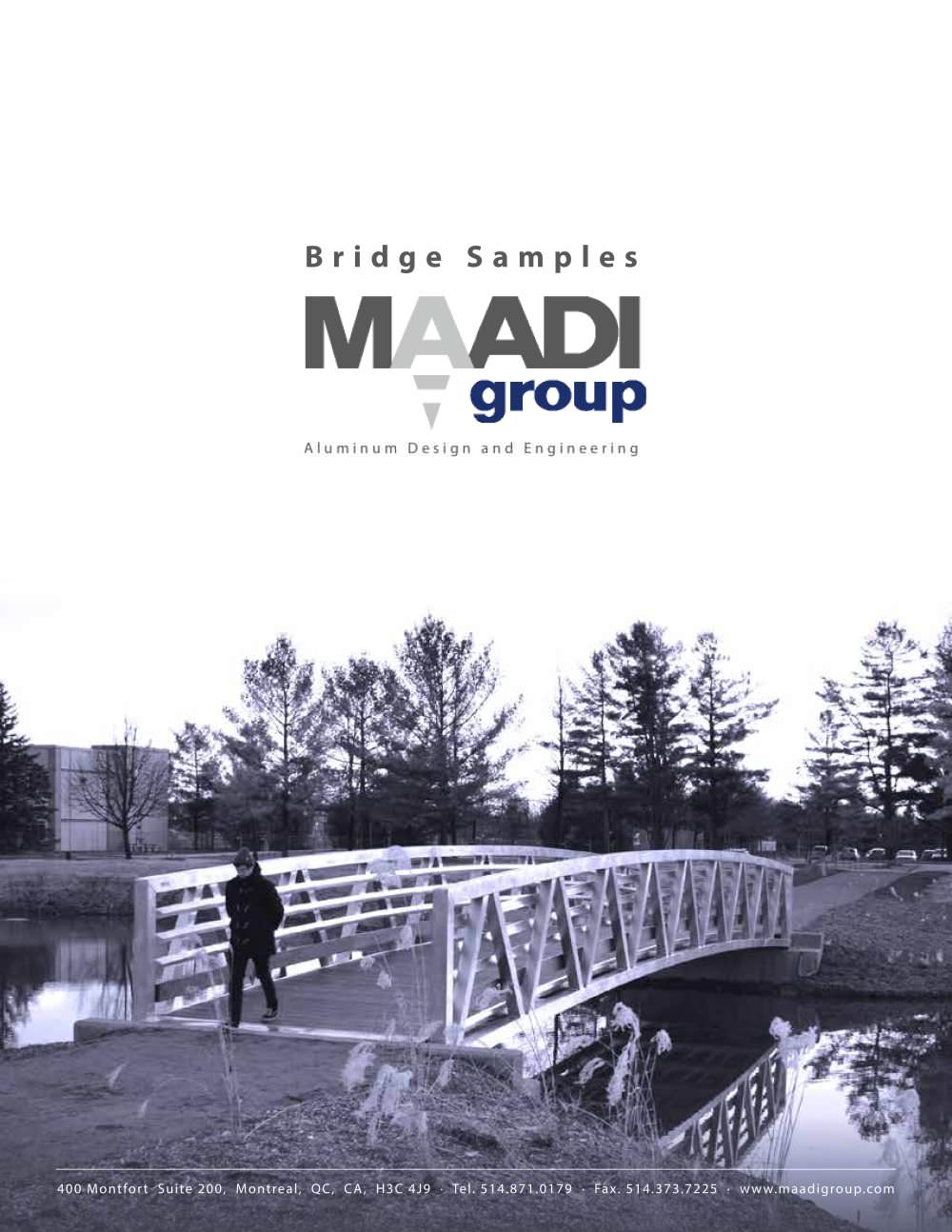

MAADI Group - Aluminum Bridge Samples - 1

Bridge Samples Aluminum Design and Engineering 400 Montfor t Suite 200, Montreal, QC, CA, H3C 4J9 · Tel. 514.871.0179 · Fax. 514.373.7225 · w w w.maadigroup.com

Open the catalog to page 1
MAADI Group - Aluminum Bridge Samples - 2

Specifications, Codes and Standards All of our bridges can conform to any of these codes and standards (or to others upon request), and bear the seal of our in-house Professional Engineers : • CAN/CSA-S6-05 (R2005) Canadian Highway Bridge Design Code (CANADA) • CSA S157-05 Strength Design in Aluminum (CANADA) • Welded Aluminum Construction CSA W59.2 (CANADA) • Certification of Companies for Fusion Welding of Aluminum CSA W47.2 (CANADA) • AASHTO Specifications for Design of Pedestrian Bridges (USA) • AA ADM-1. Aluminum Design Manual, 2005 (USA) • AWS D1.2 Structural Welding Code – Aluminum...

Open the catalog to page 2
MAADI Group - Aluminum Bridge Samples - 3

Aluminum Bridge Systems Customized options including guardrail systems and decking materials are available PONY TRUSS BRIDGE Spans : Up to 100ft (30.5m) Widths: 3ft to 10ft (1m to 3m) ARCHED PONY TRUSS BRIDGE Spans : Up to 150ft (46m) Widths: 3ft to 12ft (1m to 3.65m) BOX TRUSS BRIDGE Spans: Up to 175ft (53.4m) Widths: 6ft to 10ft (1.8m to 3m) © All rights reserved MAADI Group Inc. 2014 400, Montfort street, Suite 200 Montreal, Qc, Canada H3C 4J9 Tel. : 514.871.0179 / Fax. : 514.373.7225 www.maadigroup.com

Open the catalog to page 3
MAADI Group - Aluminum Bridge Samples - 4

Aluminum Bridge Systems Customized options including guardrail systems and decking materials are available H-SECTION TRUSS BRIDGE Spans : Up to 150ft (45.7m) Widths: 4ft to 12ft (1.2m to 3.7m) ® MODULAR PONY TRUSS BRIDGE Our weld-free Make-A-Bridge® system is delivered in easy-to-transport bundles to any challenging or remote job site. Anodized or baked paint finishes and LED lighting system options are also available. Visit www.makeabridge.com BRIDGE WIDENING RETROFIT Multiple single spans : Up to 100ft (30.5m) Widths: 5ft to 10ft (1.5m to 3m) Note: Cantilever bridge systems create a...

Open the catalog to page 4
MAADI Group - Aluminum Bridge Samples - 5

Coke Oven Brook Realignment Project Sydney, N-S Design/build of an aluminum pony truss style bridge for ATV & pedestrians, November 2006 Overall span : 68’-10 1/2” (21.0 m) Clear width : 6’-0” (1.83 m) Pedestrian loading : 85 psf (4.0 kPa) Vehicular load : 1.5 kips (6.7 kN) four-wheeled vehicle Wind pressure : 11 psf (535 Pa) Options : Hemlock 48mm (2”) Timber decking and kick plate, aluminum wire mesh guardrail Bridge self-weight : 6,600 lb (3,000 kg) © All rights reserved MAADI Group Inc. 2014 400, Montfort street, Suite 200 Montreal, Qc, Canada H3C 4J9 Tel. : 514.871.0179 / Fax. :...

Open the catalog to page 5
MAADI Group - Aluminum Bridge Samples - 6

Bayview California Project San Diego, CA Design of an aluminum pony truss style walkway, December 2007 Overall span : 83’-3 7/8” (25.4 m) Clear width : 6’-0 1/2” (1.83 m) Pedestrian loading : 93 psf (4.5 kPa) Vehicular load : N/A Wind pressure : 35 psf (1. 7 kPa) Options : Aluminum decking, glass panel guardrail Bridge self-weight : 8,910 lb (4,050 kg) 400, Montfort street, Suite 200 Montreal, Qc, Canada H3C 4J9 Tel. : 514.871.0179 / Fax. : 514.373.7225 www.maadigroup.com © All rights reserved MAADI Group Inc. 2014

Open the catalog to page 6
MAADI Group - Aluminum Bridge Samples - 7

Port of Quebec Project Quebec city, QC Design of two aluminum pony truss style gangways, July 2008 Overall span : 72’-2” (22.0 m) Clear width : 5’-7” (1.7 m) Pedestrian loading : 100 psf (4.8 kPa) Vehicular load : N/A Wind pressure : 12.6 psf (604 Pa) Options : Aluminum handrails, midrails, horizontal railings, and swan necks Bridge self-weight : 6,600 lb (3,000 kg) © All rights reserved MAADI Group Inc. 2014 400, Montfort street, Suite 200 Montreal, Qc, Canada H3C 4J9 Tel. : 514.871.0179 / Fax. : 514.373.7225 www.maadigroup.com

Open the catalog to page 7
MAADI Group - Aluminum Bridge Samples - 8

St-Martin School Project Laval, QC Design/build of an aluminum bowstring truss style pedestrian bridge & guardrails, October 2008 Overall span : 30’-9 1/2’’ (9.4 m) Clear width : 8’-11 1/2’’ (2.7 m) Pedestrian loading : 100 psf (4.8 kPa) Vehicular load : N/A Wind pressure : 12.5 psf (600 Pa) Options : Polymer decking, aluminum vertical pickets guardrails Bridge self-weight : 8,580 lb (3,900 kg) 400, Montfort street, Suite 200 Montreal, Qc, Canada H3C 4J9 Tel. : 514.871.0179 / Fax. : 514.373.7225 www.maadigroup.com © All rights reserved MAADI Group Inc. 2014

Open the catalog to page 8
MAADI Group - Aluminum Bridge Samples - 9

Tremblant Private Trail Project Tremblant, QC Design/build of an aluminum arched pony truss style bridge for ATV & pedestrians, December 2008 Overall span : 55’-0” (16.7 m) Clear width : 5’-0” (1.5 m) Pedestrian loading : 85 psf (4.0 kPa) Vehicular load : 11 kips (49 kN) four-wheeled vehicle Wind pressure : 12.5 psf (600 Pa) Options : Treated southern yellow pine decking, Aluminum horizontal railings Bridge self-weight : 5,500 lb (2,500 kg) © All rights reserved MAADI Group Inc. 2014 400, Montfort street, Suite 200 Montreal, Qc, Canada H3C 4J9 Tel. : 514.871.0179 / Fax. : 514.373.7225...

Open the catalog to page 9
MAADI Group - Aluminum Bridge Samples - 10

Emergency Exit QMD Project Montreal, QC Design/build of an aluminum modular pony truss style pedestrian bridge & stairs, April 2009 Overall span : 21’-0’’ (6.4 m) Clear width : 3’-9 3/4’’ (1.2 m) Pedestrian loading : 100 psf (4.8 kPa) Vehicular load : N/A Wind pressure : 12.5 psf (600 Pa) Options : Fiberglass decking, lexan guardrails Bridge self-weight : 1,207 lb (547 kg) 400, Montfort street, Suite 200 Montreal, Qc, Canada H3C 4J9 Tel. : 514.871.0179 / Fax. : 514.373.7225 www.maadigroup.com © All rights reserved MAADI Group Inc. 2014

Open the catalog to page 10
MAADI Group - Aluminum Bridge Samples - 11

Spa Bota Bota Project Montreal, QC © All rights reserved MAADI Group Inc. 2013 Design/build of five aluminum modular pony truss style pedestrian bridges & platform, August 2010 Overall spans : 45’-0” & 10’-0” (14.7 m & 3.0 m) Clear widths : 6’-0”& 4’-0’’ (1.8 m & 1.2 m) Pedestrian loading : 100 psf (4.8 kPa) Vehicular load : N/A Wind pressure : 12.5 psf (600 Pa) Options : Aluminum extruded decking and kick plate Bridge self-weight : 2,866 lb & 606 lb (1,300 kg & 275 kg) © All rights reserved MAADI Group Inc. 2014 400, Montfort street, Suite 200 Montreal, Qc, Canada H3C 4J9 Tel. :...

Open the catalog to page 11
