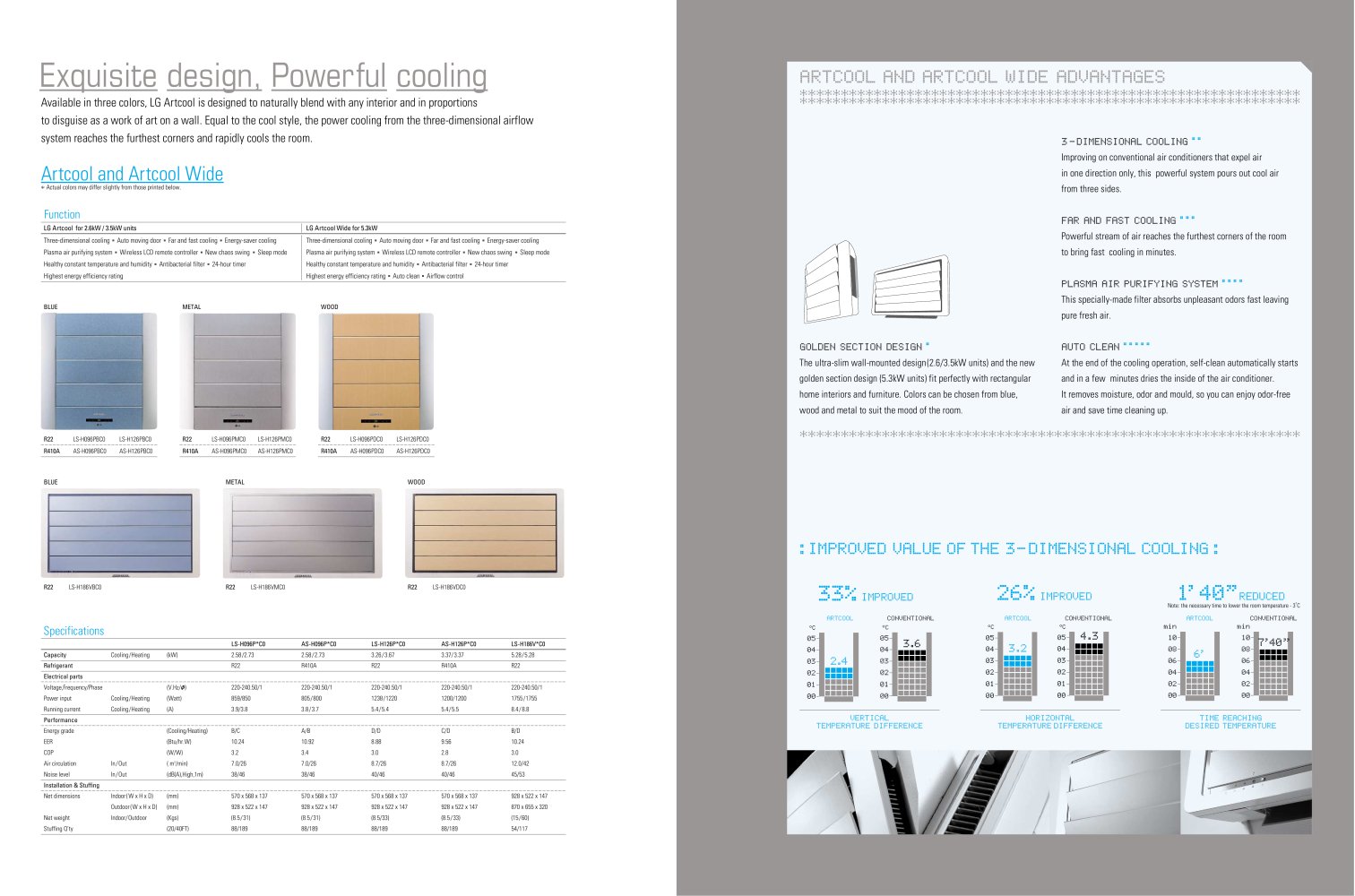

exquisite home design, Powerful cooling
Available in three colors, LG Artcool is designed to naturally blend with any interior and in proportions
to disguise as a work of art on a wall. Equal to the cool style, the power cooling from the three-dimensional airflow
system reaches the furthest corners and rapidly cools the room.
Artcool and Artcool Wide
* Actual colors may differ slightly from those printed below.
Function
LG Artcool for 2.6kW / 3.5kW imits^^^^^^^^^^^^^^^^^^^^H
LG Artcool Wide for 5.3kW^^^^^^^^^^^^^^^^^^^^^^^B
Three-dimensional cooling ■ Auto moving architectural door ■ Far and fast cooling ■ Energy-saver cooling Plasma air purifying system ■ Wireless LCD remote controller ■ New chaos swing furniture ■ Sleep mode Healthy constant temperature and humidity ■ Antibacterial filter ■ 24-hour timer Highest energy efficiency rating
Three-dimensional cooling Auto moving door Far and fast cooling Energy-saver cooling Plasma air purifying system ■ Wireless LCD remote controller ■ New chaos swing ■ Sleep mode Healthy constant temperature and humidity ■ Antibacterial filter ■ 24-hour timer Highest energy efficiency rating ■ Auto clean ■ Airflow control
BLUE
METAL
WOOD
R22
LS-H096PBC0
LS-H126PBC0
R22
LS-H096PMC0 LS-H126PMC0
R22
LS-H096PDC0
LS-H12BPDC0
R410A
AS-H096PBC0 AS-H126PBC0
R410A
AS-H096PMC0 AS-H126PMC0
R410A
AS-H096PDC0 AS-H126PDC0
BLUE
METAL
WOOD
R22 LS-H186VBC0
R22 LS-H186VMC0
R22
LS-H186VDC0
Specifications
LS-H096P»C0
AS-H096P»C0
LS-H126P»C0
AS-H126P»C0
LS-H186VC0
Capacity
Cooling/Heating
(kW)
2.58/2.73
2.58/2.73
3.26/3.67
3.37/3.37
5.28/5.28
Refrigerant
R22
R410A
R22
R410A
R22
Electrical parts
Voltage,Frequency/Phase
(V.Hz/#)
220-240.50/1
220-240.50/1
220-240.50/1
220-240.50/1
220-240.50/1
Power input
Cooling/Heating
(Watt)
859/850
805/800
1238/1220
1200/1200
1755/1755
Running current
Cooling/Heating
(A)
3.9/3.8
3.8/3.7
5.4/5.4
5.4/5.5
8.4/8.8
Performance
Energy grade
(Cooling/Heating)
B/C
A/B
D/D
C/D
B/D
EER
(Btu/hr.W)
10.24
10.92
8.88
9.56
10.24
COP
(W/W)
3.2
3.4
3.0
2.8
3.0
Air circulation
In/Out
( m3/min)
7.0/26
7.0/26
8.7/26
8.7/26
12.0/42
Noise level
In/Out
(dB(A),High,1m)
38/46
38/46
40/46
40/46
45/53
Installation & Stuffing
Net dimensions
Indoor(W x H x D)
(mm)
570 x 568 x 137
570 x 568 x 137
570 x 568 x 137
570 x 568 x 137
928 x 522 x 147
Outdoor(W x H x D)
(mm)
928 x 522 x 147
928 x 522 x 147
928 x 522 x 147
928 x 522 x 147
870 x 655 x 320
Net weight
Indoor/Outdoor
(Kgs)
(8.5/31)
(8.5/31)
(8.5/33)
(8.5/33)
(15/60)
Stuffing Q'ty
(20/40FT)
88/189
88/189
88/189
88/189
54/117
