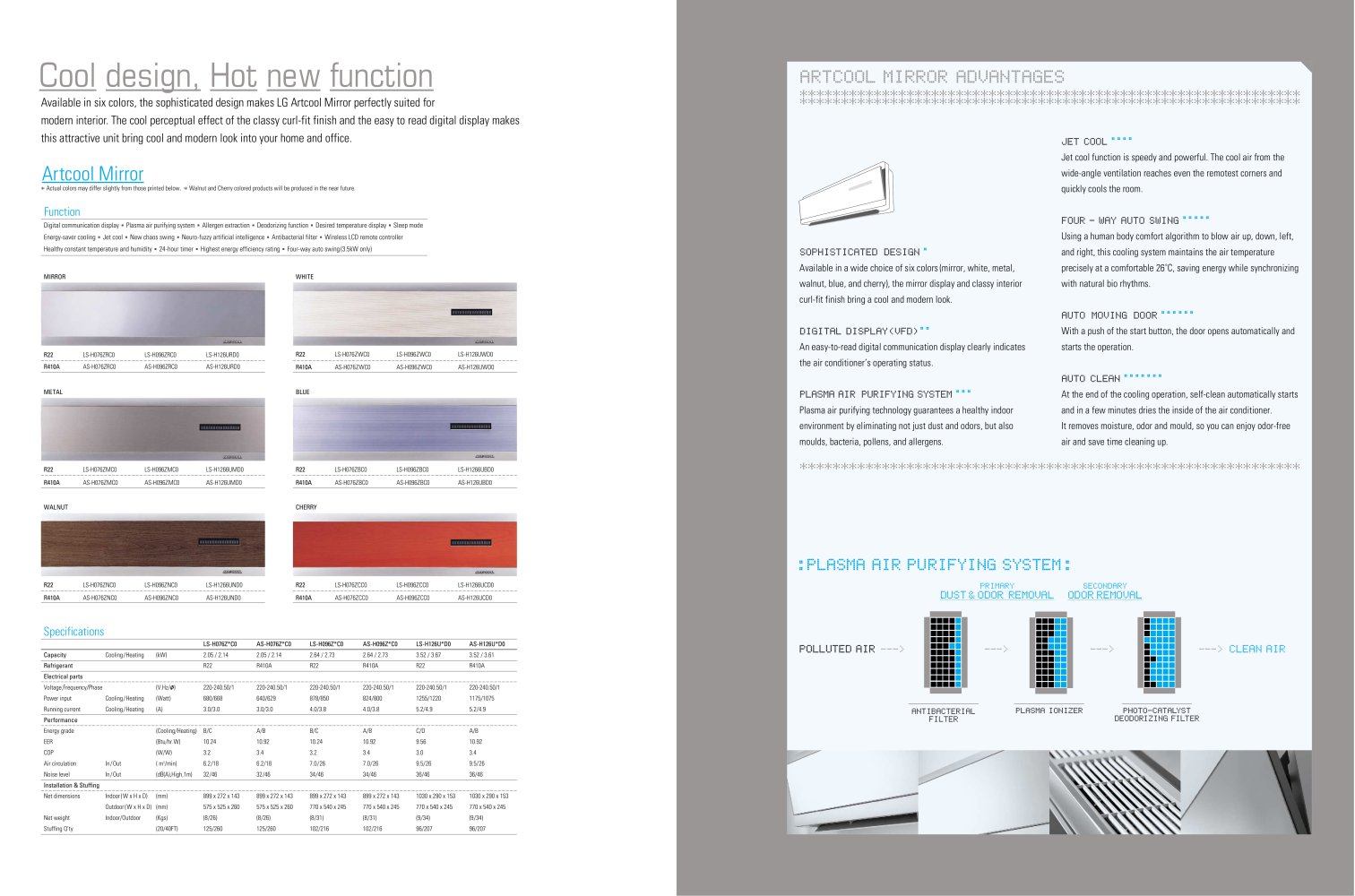

| | | Available in six colors, the sophisticated design makes LG Artcool Modern mirror perfectly suited for modern interior. The cool perceptual effect of the classy curl-fit finish and the easy to read digital modern display makes this attractive unit bring cool and modern look into your home and office. | | |
| | | ARTCOOL MIRROR ADVANTAGES ************************************ ************************************************************* | | |
| | | |
| | | jet cool Jet cool function is speedy and powerful. The cool air from the wide-angle home ventilation reaches even the remotest corners and quickly cools the room. Using a human body comfort algorithm to blow air up, down, left, and right, this cooling system maintains the air temperature precisely at a comfortable 26°C, saving energy while synchronizing with natural bio rhythms. huto moving home door With a push of the start button, the door opens automatically and starts the operation. huto clean At the end of the cooling operation, self-clean automatically starts and in a few minutes dries the inside of the design air conditioner. It removes moisture, odor and mould, so you can enjoy odor-free air and save time cleaning up. | | |
| | | |
| | | Artcool Mirror | | |
| | | |
| | | * Actual colors may differ slightly from those printed below. * Walnut and Cherry colored products will be produced in the near future. | | |
| | | |
| | | Function | | |
| | | |
| | | Digital communication display ■ Plasma air purifying system ■ Allergen extraction ■ Deodorizing function ■ Desired temperature display ■ Sleep mode Energy-saver cooling ■ Jet cool ■ New chaos swing ■ Neuro-fuzzy artificial intelligence ■ Antibacterial filter ■ Wireless LCD remote controller Healthy constant temperature and humidity ■ 24-hour timer ■ Highest energy efficiency rating ■ Four-way auto swing(3.5kW only) | | |
| | | sophistichted design Available in a wide choice of six colors(mirror, white, metal, walnut, blue, and cherry), the mirror display and classy interior curl-fit finish bring a cool and modern look. digital displhy<ufd>!!!! An easy-to-read digital communication display clearly indicates the air conditioner's operating status. plhsmh hir purifying system Plasma air purifying technology guarantees a healthy indoor environment by eliminating not just dust and odors, but also moulds, bacteria, pollens, and allergens. | | |
| | | |
| | | MIRROR | | WHITE | | |
| | | |
| | | R22 | | LS-H076ZWC0 | | LS-H096ZWC0 | | LS-H126UWD0 | | |
| | | R22 | | LS-H076ZRC0 | | LS-H096ZRC0 | | LS-H126URD0 | | |
| | | |
| | | |
| | | R410A | | AS-H076ZRC0 | | AS-H096ZRC0 | | AS-H126URD0 | | |
| | | R410A | | AS-H076ZWC0 | | AS-H096ZWC0 | | AS-H126UWD0 | | |
| | | |
| | | |
| | | METAL | | BLUE | | |
| | | |
| | | |
| | | ************************************************************* | | |
| | | R22 | | LS-H076ZMC0 | | LS-H096ZMC0 | | LS-H1266UMD0 | | R22 | | LS-H076ZBC0 | | LS-H096ZBC0 | | LS-H1266UBD0 | | |
| | | |
| | | |
| | | R410A | | AS-H076ZMC0 | | AS-H096ZMC0 | | AS-H126UMD0 | | R410A | | AS-H076ZBC0 | | AS-H096ZBC0 | | AS-H126UBD0 | | |
| | | |
| | | WALNUT | | CHERRY | | |
| | | |
| | | iPLflSMfl AIR PURIFYING SYSTEM : | | |
| | | |
| | | R22 | | LS-H076ZNC0 | | LS-H096ZNC0 | | LS-H1266UND0 | | R22 | | LS-H076ZCC0 | | LS-H096ZCC0 | | LS-H1266UCD0 | | |
| | | PRIMARY SECONDARY DUST & ODOR REMOVAL ODOR REMOVAL | | |
| | | |
| | | R410A | | AS-H076ZNC0 | | AS-H096ZNC0 | | AS-H126UND0 | | R410A | | AS-H076ZCC0 | | AS-H096ZCC0 | | AS-H126UCD0 | | |
| | | |
| | | |
| | | Specifications | | |
| | | |
| | | | | | | | | | | | | | | | | | | | LS-H076Z*C0 | AS-H076Z*C0 | LS-H096Z*C0 | AS-H096Z*C0 | LS-H126U*D0 | AS-H126U*D0 | | | | Capacity | Cooling/Heating | (kW) | 2.05 / 2.14 | 2.05 / 2.14 | 2.64 / 2.73 | 2.64 / 2.73 | 3.52 / 3.67 | 3.52 / 3.61 | | | | Refrigerant | | | R22 | R410A | R22 | R410A | R22 | R410A | | | | Electrical parts | | | | Voltage,Frequency/Phase | | (V.Hz/0) | 220-240.50/1 | 220-240.50/1 | 220-240.50/1 | 220-240.50/1 | 220-240.50/1 | 220-240.50/1 | | | | Power input | Cooling/Heating | (Watt) | 680/668 | 640/629 | 878/850 | 824/800 | 1255/1220 | 1175/1075 | | | | Running current | Cooling/Heating | (A) | 3.0/3.0 | 3.0/3.0 | 4.0/3.8 | 4.0/3.8 | 5.2/4.9 | 5.2/4.9 | | | | Performance | | | | Energy grade | | (Cooling/Heating) | B/C | A/B | B/C | A/B | C/D | A/B | | | | EER | | (Btu/hr.W) | 10.24 | 10.92 | 10.24 | 10.92 | 9.56 | 10.92 | | | | COP | | (W/W) | 3.2 | 3.4 | 3.2 | 3.4 | 3.0 | 3.4 | | | | Air circulation | In/Out | ( m3/min) | 6.2/18 | 6.2/18 | 7.0/26 | 7.0/26 | 9.5/26 | 9.5/26 | | | | Noise level | In/Out | (dB(A).High.lm) | 32/46 | 32/46 | 34/46 | 34/46 | 36/46 | 36/46 | | | | Installation & Stuffing | | | | Net dimensions | Indoor(W x H x D) | (mm) | 899 x 272 x 143 | 899 x 272 x 143 | 899 x 272 x 143 | 899 x 272 x 143 | 1030 x 290 x 153 | 1030 x 290 x 153 | | | | | Outdoor(W x H x D) | (mm) | 575 x 525 x 260 | 575 x 525 x 260 | 770 x 540 x 245 | 770 x 540 x 245 | 770 x 540 x 245 | 770 x 540 x 245 | | | | Net weight | Indoor/Outdoor | (Kgs) | (8/26) | (8/26) | (8/31) | (8/31) | (9/34) | (9/34) | | | | Stuffing Q'ty | | (20/40FT) | 125/260 | 125/260 | 102/216 | 102/216 | 96/207 | 96/207 | | | | | | | | | | | | | | | | |
| | | POLLUTED AIR ---> | | --- > CLEAN AIR | | |
| | | ------> | | --- > | | |
| | | |
| | | |
| | | ANTIBACTERIAL PLASMA IONIZER PHOTO-CATALYST FILTER DEODORIZING FILTER | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
