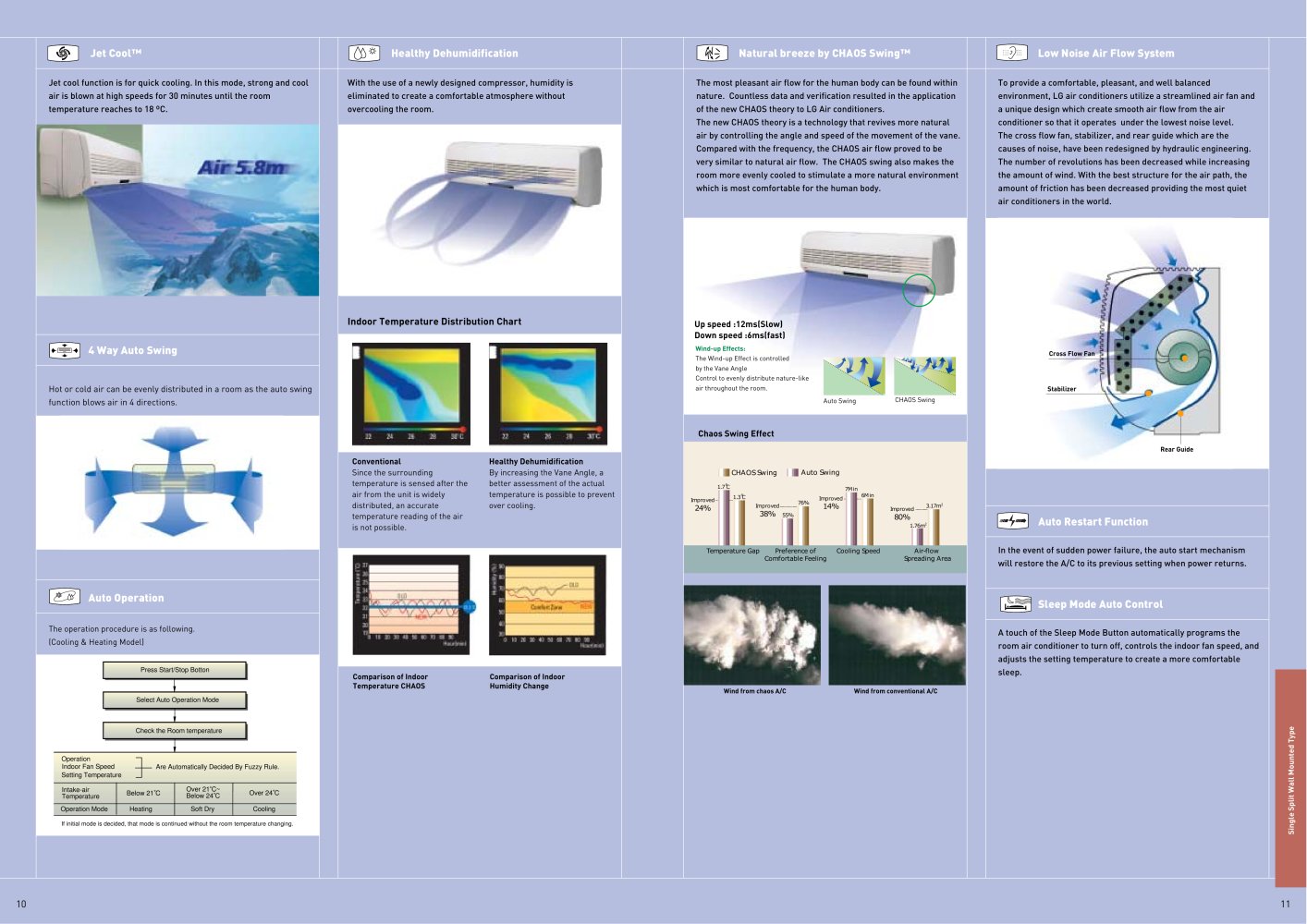

'№ Healthy Dehumidification

ral breeze by CHAOS Design swing™

Low Noise Air Flow System

Jet cool function is for quick cooling. In this mode, strong and cool air is blown at high speeds for 30 minutes until the room temperature reaches to 18 °C.

With the use of a newly designed compressor, humidity is eliminated to create a comfortable atmosphere without overcooling the room.

The most pleasant air flow for the human body can be found within nature. Countless data and verification resulted in the application of the new CHAOS theory to LG Home air conditioners. The new CHAOS theory is a technology that revives more natural air by controlling the angle and speed of the movement of the vane. Compared with the frequency, the CHAOS air flow proved to be very similar to natural air flow. The CHAOS swing also makes the room more evenly cooled to stimulate a more natural environment which is most comfortable for the human body.

To provide a comfortable, pleasant, and well balanced environment, LG air conditioners utilize a streamlined air modern fan and a unique design which create smooth air flow from the air conditioner so that it operates under the lowest noise level. The cross flow fan, stabilizer, and rear guide which are the causes of noise, have been redesigned by hydraulic engineering. The number of revolutions has been decreased while increasing the amount of wind. With the best structure for the air path, the amount of friction has been decreased providing the most quiet air conditioners in the world.

Air 5.&m

Indoor Temperature Distribution Chart

Up speed :12ms|Slow) Down speed :6ms(fast)

Wind-up Effects:

The Wind-up Effect is controlled by the Vane Angle

Control to evenly distribute nature-like air throughout the room.

Hot or cold air can be evenly distributed in a room as the auto swing function blows air in 4 directions.

CHAOS Swing

Auto Swing

Chaos Swing Effect

Healthy Dehumidification

By increasing the Vane Angle, a better assessment of the actual temperature is possible to prevent over cooling.

Conventional

Since the surrounding temperature is sensed after the air from the unit is widely distributed, an accurate temperature reading of the air is not possible.

|CHAOSS/vmg

I Auto Swing



		1 1.3"C
		1	Improved................⁷⁶¿
			38% 55% II

Improved

14%

Improved ■

24%

17m²

Improved............

80%

1.76m²

In the event of sudden power failure, the auto start mechanism will restore the A/C to its previous setting when power returns.

Temperature Gap Reference of

Comfortable Feeling

Cooling Speed

Air-flow Spreading Area

The operation procedure is as following. (Cooling & Heater Model]

A touch of the Sleep Mode Button automatically programs the room air conditioner to turn off, controls the indoor fan speed, and adjusts the setting temperature to create a more comfortable sleep.

it № n fl »

■"■■T-i

■ i] i i t< :i i i i) •

I km.-

Press Start/Stop Botton

Comparison of Indoor Temperature CHAOS

Comparison of Indoor Humidity Change

Wind from chaos A/C

Wind from conventional A/C

Select Auto Operation Mode

Check the Room temperature

Operation Indoor Fan Speed Setting Temperature

Are Automatically Decided By Fuzzy Rule.


Intake-air Temperature	Below 21 °C	Over21°C~ Below 24°C	Over 24°C
Operation Mode	Heating	Soft Dry	Cooling

If initial mode is decided, that mode is continued without the room temperature changing.
