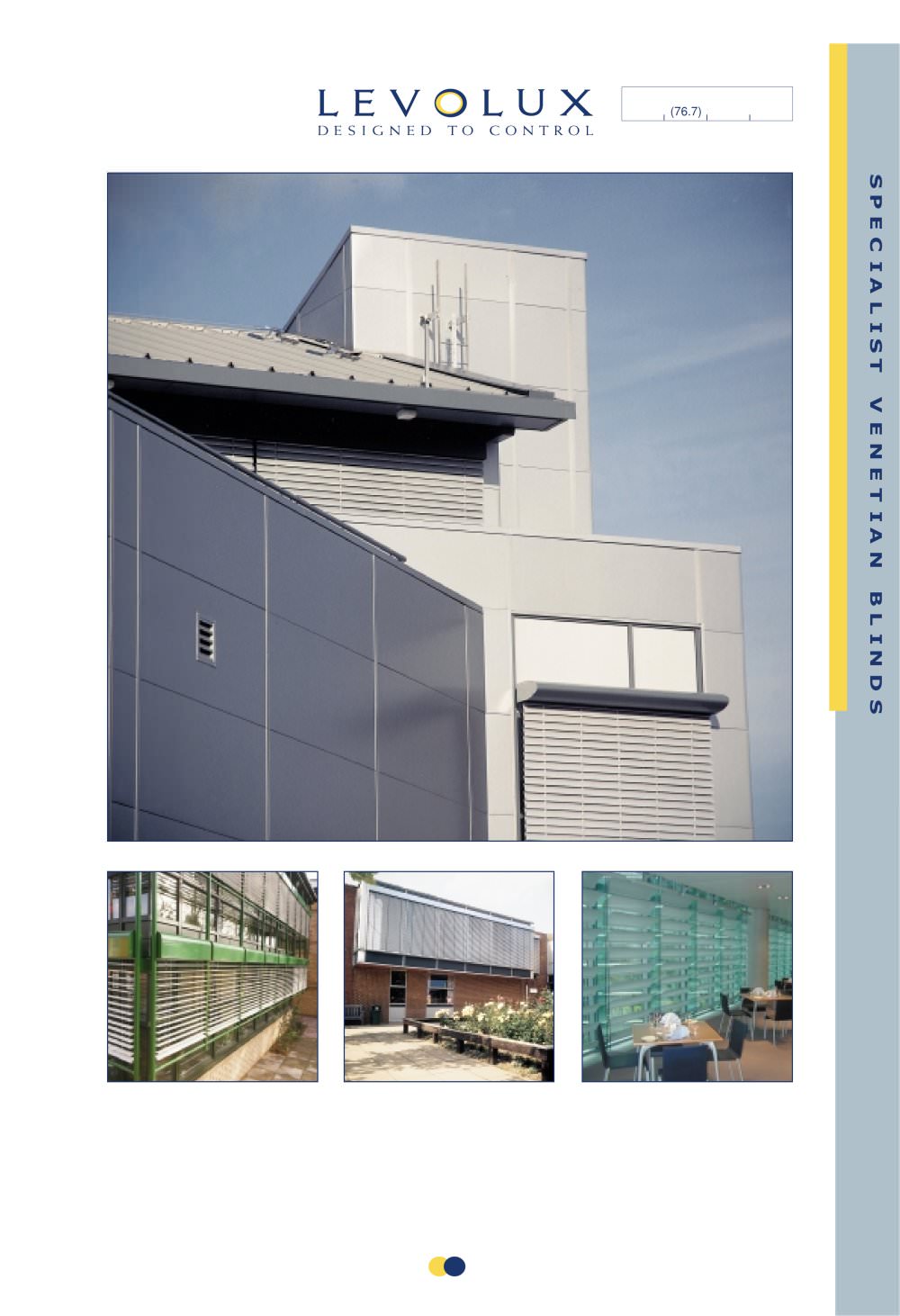

Specialist venetians
4Pages

{{requestButtons}}

Catalog excerpts

Specialist venetians - 2

S P E C I A L I S T V E N E T I A N B L I N D S •• Introduction Levolux 4000 series specialist venetian blinds are designed for a wide range of applications (both commercial and residential) and can be installed both internally and externally. Levolux venetian blinds can provide protection against glare as well as very fine light control as a result of the variable slat positions. Additionally, if the blinds are fitted externally, they can significantly reduce the amount of heat gain entering the building. The Ideal Solar Shading System The ideal solar control solution must meet a number of...

Open the catalog to page 2
Specialist venetians - 3

S P E C I A L I S T V E N E T I A N B L I N D S •• Standard Systems Custom System Sizes: 4050C 4060C 4060R 4080C 4080R 4100C 4200-4425 C: Crowned slat R: Rolled edge slat Headrail and Bottomrail Dimensions *Various types of Aluminium head boxes and facias are available 17 20 24 18 24 18 50 60 80 80 100 100 100 4050 4060 4080 4100 18 18 36 18 24 6 35/45ø 6 Side guides and Side wires Rectangular extruded aluminium guides Circular extruded aluminium guides Side wires Wires to be 3-4mm Perlon or 1.5mm S/S All dimensions in millimetres 20 15 See back page

Open the catalog to page 3
Specialist venetians - 4

Specification •• For further information on Levolux sunscreening systems and effective ways to control light, heat and glare please contact: S P E C I A L I S T V E N E T I A N B L I N D S In line with the policy of continuous product development Levolux reserves the right to alter specifications without prior notice. E&OE Specialist Venetian Blinds to be Levolux 4050/4060/4080/4100*/4… The ……+mm solid/perforated*, crowned/rolled edge* slats to be from the Levolux standard colour range. Colour to be …………………………+. System to have colour matched head and bottom rails. Operation to be manual...

Open the catalog to page 4
