49

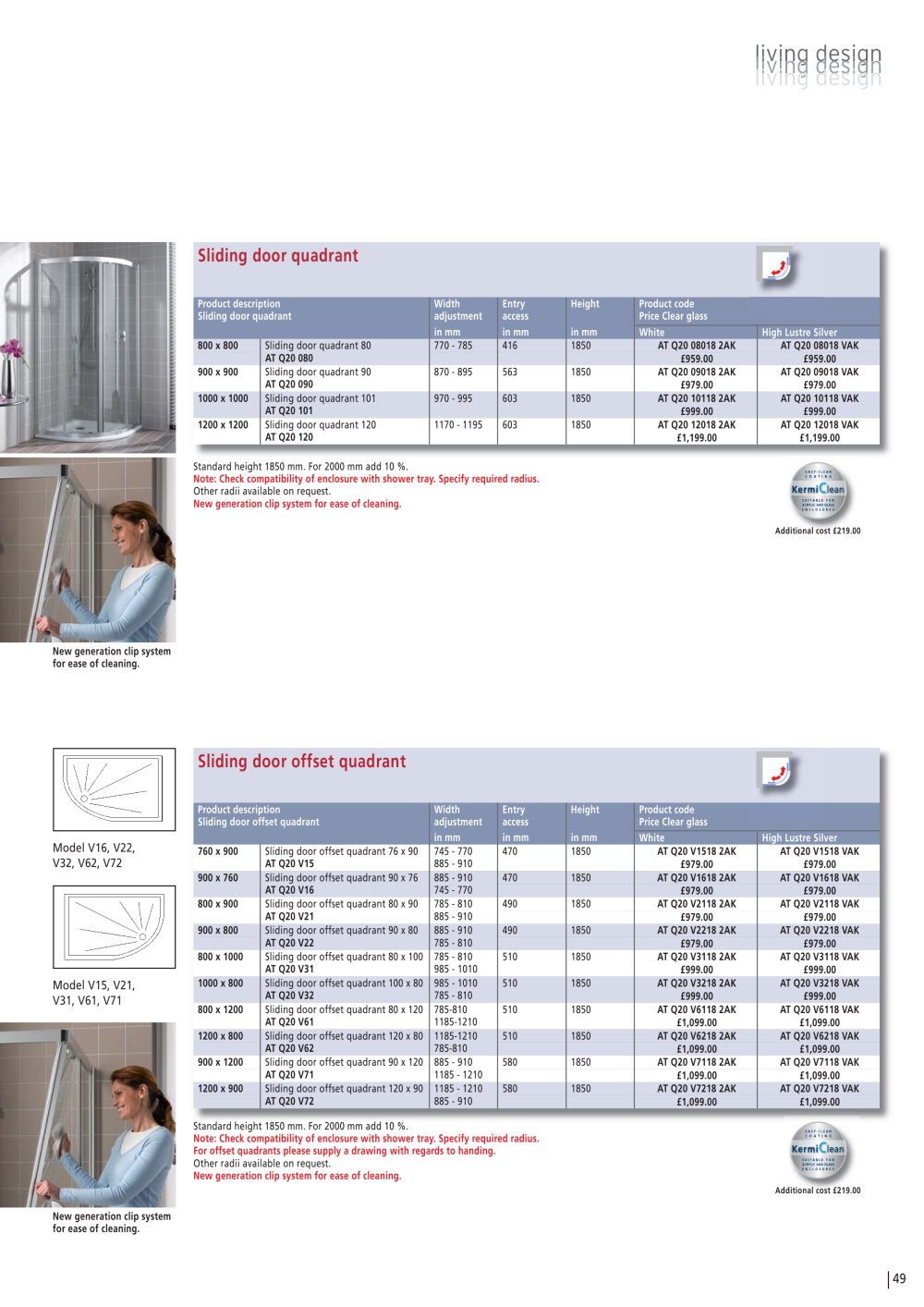

Sliding door offset quadrant
Product description
Sliding door offset quadrant
Width
adjustment
in mm
Entry
access
in mm
Height
in mm
Product code
Price Clear glass
White High Lustre Silver
760 x 900 Sliding door offset quadrant 76 x 90
AT Q20 V15
745 - 770
885 - 910
470 1850 AT Q20 V1518 2AK AT Q20 V1518 VAK
£979.00 £979.00
900 x 760 Sliding door offset quadrant 90 x 76
AT Q20 V16
885 - 910
745 - 770
470 1850 AT Q20 V1618 2AK AT Q20 V1618 VAK
£979.00 £979.00
800 x 900 Sliding door offset quadrant 80 x 90
AT Q20 V21
785 - 810
885 - 910
490 1850 AT Q20 V2118 2AK AT Q20 V2118 VAK
£979.00 £979.00
900 x 800 Sliding door offset quadrant 90 x 80
AT Q20 V22
885 - 910
785 - 810
490 1850 AT Q20 V2218 2AK AT Q20 V2218 VAK
£979.00 £979.00
800 x 1000 Sliding door offset quadrant 80 x 100
AT Q20 V31
785 - 810
985 - 1010
510 1850 AT Q20 V3118 2AK AT Q20 V3118 VAK
£999.00 £999.00
1000 x 800 Sliding door offset quadrant 100 x 80
AT Q20 V32
985 - 1010
785 - 810
510 1850 AT Q20 V3218 2AK AT Q20 V3218 VAK
£999.00 £999.00
800 x 1200 Sliding door offset quadrant 80 x 120
AT Q20 V61
785-810
1185-1210
510 1850 AT Q20 V6118 2AK AT Q20 V6118 VAK
£1,099.00 £1,099.00
1200 x 800 Sliding door offset quadrant 120 x 80
AT Q20 V62
1185-1210
785-810
510 1850 AT Q20 V6218 2AK AT Q20 V6218 VAK
£1,099.00 £1,099.00
900 x 1200 Sliding door offset quadrant 90 x 120
AT Q20 V71
885 - 910
1185 - 1210
580 1850 AT Q20 V7118 2AK AT Q20 V7118 VAK
£1,099.00 £1,099.00
1200 x 900 Sliding door offset quadrant 120 x 90
AT Q20 V72
1185 - 1210
885 - 910
580 1850 AT Q20 V7218 2AK AT Q20 V7218 VAK
£1,099.00 £1,099.00
Sliding door quadrant
Product description
Sliding door quadrant
Width
adjustment
in mm
Entry
access
in mm
Height
in mm
Product code
Price Clear glass
White High Lustre Silver
800 x 800 Sliding door quadrant 80
AT Q20 080
770 - 785 416 1850 AT Q20 08018 2AK AT Q20 08018 VAK
£959.00 £959.00
900 x 900 Sliding door quadrant 90
AT Q20 090
870 - 895 563 1850 AT Q20 09018 2AK AT Q20 09018 VAK
£979.00 £979.00
1000 x 1000 Sliding door quadrant 101
AT Q20 101
970 - 995 603 1850 AT Q20 10118 2AK AT Q20 10118 VAK
£999.00 £999.00
1200 x 1200 Sliding door quadrant 120
AT Q20 120
1170 - 1195 603 1850 AT Q20 12018 2AK AT Q20 12018 VAK
£1,199.00 £1,199.00
Standard height 1850 mm. For 2000 mm add 10 %.
Note: Check compatibility of enclosure with shower tray. Specify required radius.
Other radii available on request.
New generation clip system for ease of cleaning.
Model V15, V21,
V31, V61, V71
Standard height 1850 mm. For 2000 mm add 10 %.
Note: Check compatibility of enclosure with shower tray. Specify required radius.
For offset quadrants please supply a drawing with regards to handing.
Other radii available on request.
New generation clip system for ease of cleaning.
Model V16, V22,
V32, V62, V72
Additional cost £219.00
Additional cost £219.00
New generation clip system
for ease of cleaning.
New generation clip system
for ease of cleaning.
-
