Living Design Radiator - 76 Pages

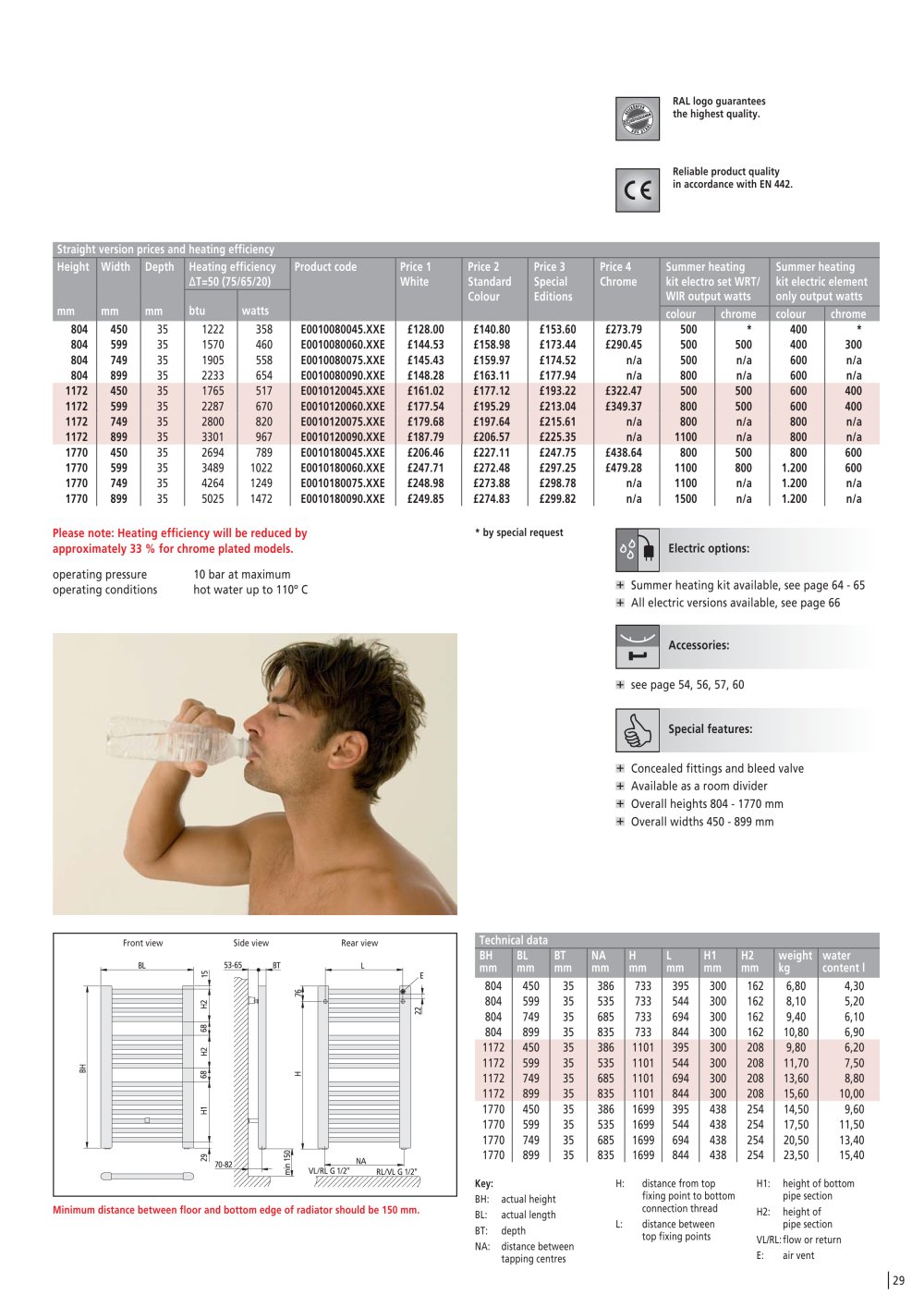

RAL logo guarantees the highest quality. Reliable product quality in accordancewith EN 442. Straight version prices and heating efficiency Height Width Depth Heating efficiency AT=50 (75/65/20) Product code Price 1 White Price 2 Standard Price 3 Special Price 4 Chrome Summer heating kit electro set WRT/ Summer heating kit electric element mm mm mm btu watts Colour Editions WIR output watts only output watts colour colour 804 450 35 1222 358 E0010080045.XXE 128.00 ã140.80 153.60 ã273.79 500 400 804 599 35 1570 460 E0010080060.XXE 144.53 ã158.98 173.44 ã290.45 500 500 400 300 804 749 35 1905 558 E0010080075.XXE 145.43 ã159.97 174.52 n/a 500 n/a 600 n/a 804 899 35 2233 654 E0010080090.XXE ã148.28 163.11 ã177.94 n/a 800 n/a 600 n/a 1172 450 35 1765 517 E0010120045.XXE 161.02 ã177.12 193.22 ã322.47 500 500 600 400 1172 599 35 2287 670 E0010120060.XXE 177.54 ã195.29 213.04 ã349.37 800 500 600 400 1172 749 35 2800 820 E0010120075.XXE 179.68 ã197.64 215.61 n/a 800 n/a 800 n/a 1172 899 35 3301 967 E0010120090.XXE ã187.79 206.57 ã225.35 n/a 1100 n/a 800 n/a 1770 450 35 2694 789 E0010180045.XXE 206.46 ã227.11 247.75 ã438.64 800 500 800 600 1770 599 35 3489 1022 E0010180060.XXE 247.71 ã272.48 297.25 ã479.28 1100 800 1.200 600 1770 749 35 4264 1249 E0010180075.XXE 248.98 ã273.88 298.78 n/a 1100 n/a 1.200 n/a 1770 899 35 5025 1472 E0010180090.XXE ã249.85 274.83 ã299.82 n/a 1500 n/a 1.200 n/a Please note: Heating efficiency will be reduced by approximately 33 % for chrome plated models. * by special request Electric options: operating pressure operating conditions 10 bar at maximum hot water up to 110° C ■ Summer heating kit available, see page 64 - 65 + All electric versions available, see page 66 Accessories: + see page 54, 56, 57, 60 Special features: + Concealed fittings and bleed valve + Available as a room divider + Overall heights 804 - 1770 mm + Overall widths 450 - 899 mm BH H1 weight water mm mm kg content l 804 450 35 386 733 395 300 162 6,80 4,30 804 599 35 535 733 544 300 162 8,10 5,20 804 749 35 685 733 694 300 162 9,40 6,10 804 899 35 835 733 844 300 162 10,80 6,90 1172 450 35 386 1101 395 300 208 9,80 6,20 1172 599 35 535 1101 544 300 208 11,70 7,50 1172 749 35 685 1101 694 300 208 13,60 8,80 1172 899 35 835 1101 844 300 208 15,60 10,00 1770 450 35 386 1699 395 438 254 14,50 9,60 1770 599 35 535 1699 544 438 254 17,50 11,50 1770 749 35 685 1699 694 438 254 20,50 13,40 1770 899 35 835 1699 844 438 254 23,50 15,40 Key: BH: actual height BL: actual length BT: depth NA: distance between tapping centres H: distance from top fixing point to bottom connection thread distance between top fixing points H1: height of bottom pipe section H2: height of pipe section VL/RL: flow or return E: air vent Minimum distance between floor and bottom edge of radiator should be 150 mm. L: 129
-
P. 1
-
P. 26
Timeless linear design -
P. 27
RAL logo guarantees the highest quality. Reliable product quality in accordancewith EN 442. Curved version prices and heating efficiency Height Width Depth... -
P. 28
Squareheatingy design MEZZO QUADRO -
P. 29
Ictuble product quilfty macccfdftTX*wHh in 442 Prite* and heating efficient? Sw MO f 50 f A 1742 511 1200 1600 5Q0 soo 50 50 2509 B11 736 971 JQOICwCOSOZXXfc... -
P. 30
Vertical D shaped profiles and straight horizontal tubes -
P. 31
-
P. 32
Vertical D shaped profiles and curved horizontal tubes -
P. 33
RAL logo guarantees the highest quality. Reliable product quality in accordancewith EN 442. Curved version prices and heating efficiency Height Width Depth... -
P. 34
-
P. 35
RAL logo guarantees the highest quality. Reliable product quality in accordancewith EN 442. Prices and heating efficiency Height Width Heating effi- ciency... -
P. 36
reddot design award winner 2005 -
P. 37
-
P. 38
-
P. 39
-
P. 40
-
P. 50
-
P. 60
-
P. 70
