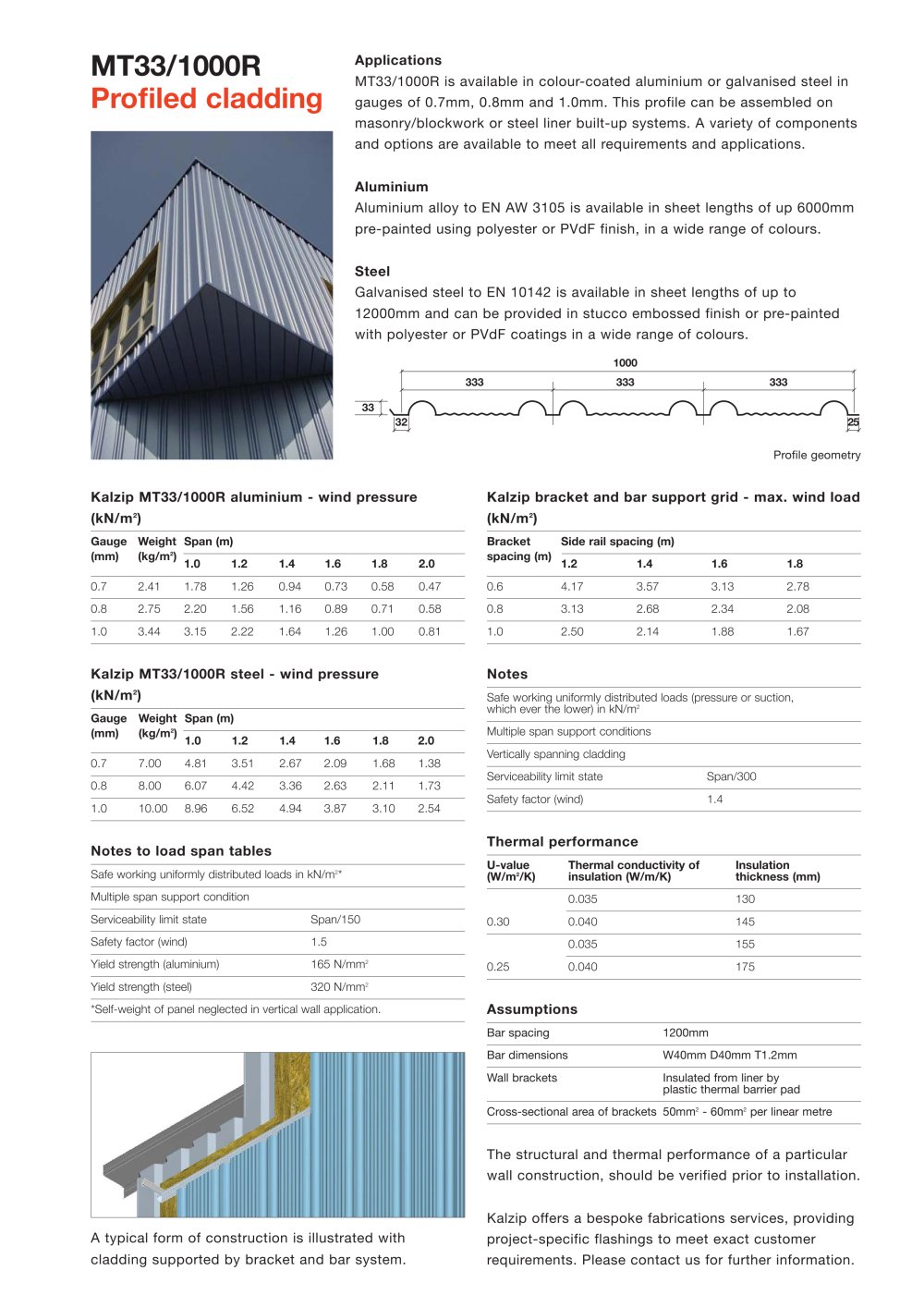

| | | Applications MT33/1000R is available in colour-coated aluminium or galvanised steel in gauges of 0.7mm, 0.8mm and 1.0mm. This profile can be assembled on masonry/blockwork or steel liner built-up systems. A variety of components and options are available to meet all requirements and applications. | | |
| | | |
| | | |
| | | Aluminium Aluminium alloy to EN AW 3105 is available in sheet lengths of up 6000mm pre-painted using polyester or PVdF finish, in a wide range of colours. Steel Galvanised steel to EN 10142 is available in sheet lengths of up to 12000mm and can be provided in stuc embossed finish or pre-painted with polyester or PVdF coatings in a wide range of colours. | | |
| | | |
| | | 1000 | | |
| | | |
| | | 33 | | |
| | | |
| | | Profile geometry | | |
| | | |
| | | Kalzip MT33/1000R aluminium - wind pressure (kN/m2) | | Kalzip bracket and bar support grid - max. wind load (kN/m2) | | |
| | | |
| | | | | | | | | | | | | Bracket spacing (m) | Side rail spacing (m) | | | | | | 1.2 | 1.4 | 1.6 | 1.8 | | | | 0.6 | 4.17 | 3.57 | 3.13 | 2.78 | | | | 0.8 | 3.13 | 2.68 | 2.34 | 2.08 | | | | | | | | | | | | |
| | | Gauge Weight Span (m) | | |
| | | |
| | | | | | | | | | | | | | | | (mm) | (kg/m2) | 1.0 | 1.2 | 1.4 | 1.6 | 1.8 | 2.0 | | | | 0.7 | 2.41 | 1.78 | 1.26 | 0.94 | 0.73 | 0.58 | 0.47 | | | | 0.8 | 2.75 | 2.20 | 1.56 | 1.16 | 0.89 | 0.71 | 0.58 | | | | 1.0 | 3.44 | 3.15 | 2.22 | 1.64 | 1.26 | 1.00 | 0.81 | | | | | | | | | | | | | | | |
| | | |
| | | 1.0 2.50 2.14 1.88 1.67 | | |
| | | |
| | | |
| | | Kalzip MT33/1000R steel - wind pressure (kN/m2) | | |
| | | Notes | | |
| | | |
| | | | | | | | | | Safe furniture working uniformly distributed loads (pressure or suction, which ever the lower) in kN/m2 | | | | Multiple span support conditions | | | | Vertically spanning cladding | | | | Serviceability limit state | Span/300 | | | | Safety factor (wind) | 1.4 | | | | Thermal performance | | | | U-value Thermal conductivity of Insulation (W/m2/K) insulation (W/m/K) thickness (mm) | | | | 0.035 | 130 | | | | 0.30 0.040 | 145 | | | | 0.035 | 155 | | | | 0.25 0.040 | 175 | | | | Assumptions | | | | Bar spacing | 1200mm | | | | Bar dimensions | W40mm D40mm T1.2mm | | | | Wall brackets | Insulated from liner by plastic thermal barrier pad | | | | Cross-sectional area of brackets | 50mm2 - 60mm2 per linear metre | | | | | | | | | |
| | | |
| | | Gauge Weight Span (m) | | |
| | | |
| | | | | | | | | | | | | | | | (mm) | (kg/m2) | 1.0 | 1.2 | 1.4 | 1.6 | 1.8 | 2.0 | | | | 0.7 | 7.00 | 4.81 | 3.51 | 2.67 | 2.09 | 1.68 | 1.38 | | | | 0.8 | 8.00 | 6.07 | 4.42 | 3.36 | 2.63 | 2.11 | 1.73 | | | | 1.0 | 10.00 | 8.96 | 6.52 | 4.94 | 3.87 | 3.10 | 2.54 | | | | | | | | | | | | | | | |
| | | |
| | | Safe working uniformly distributed loads in kN/m2* Multiple span support condition Serviceability limit state Span/150 Safety factor (wind) 1.5 Yield strength (aluminium) 165 N/mm2 Yield strength (steel) 320 N/mm2 *Self-weight of panel neglected in vertical wall application. | | |
| | | |
| | | |
| | | The structural and thermal performance of a particular wall construction, should be verified prior to installation. Kalzip offers a bespoke fabrications services, providing project-specific flashings to meet exact customer requirements. Please contact us for further information. | | |
| | | A typical form of construction is illustrated with cladding supported by bracket and bar system. | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
