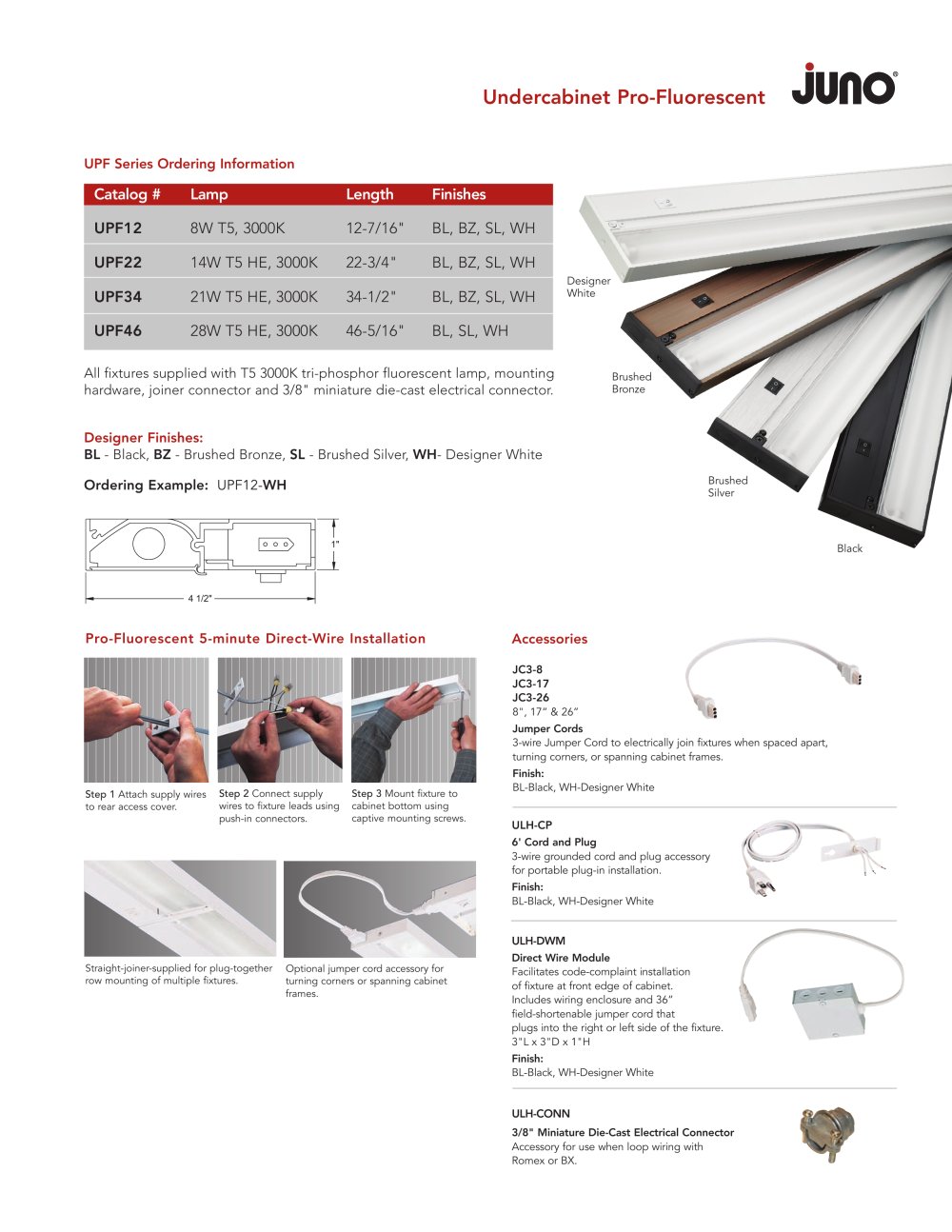

Undercabinet Pro-Fluorescent

UPF Series Ordering Information

Catalog #LampLengthFinishes UPF12 8W T5, 3000K12-7/16"BL, BZ, SL, WH UPF22 14W T5 HE, 3000K22-3/4"BL, BZ, SL, WH

DesignerWhite BrushedSilver BrushedBronze Black

UPF34 21W T5 HE, 3000K34-1/2"BL, BZ, SL, WH UPF46 28W T5 HE, 3000K46-5/16"BL, SL, WH

All fixtures supplied with T5 3000K tri-phosphor fluorescent lamp, mounting hardware, joiner connector and 3/8" miniature die-cast electrical connector. Designer Finishes:BL - Black, BZ - Brushed Bronze, SL - Brushed Silver, WH - Designer White Ordering Example: UPF12- WH

1"4 1/2"

Pro-Fluorescent 5-minute Direct-Wire Installation Accessories

JC3-8 JC3-17 JC3-26

8", 17” & 26” Jumper Cords 3-wire Jumper Cord to electrically join fixtures when spaced apart, turning corners, or spanning cabinet frames. Finish: BL-Black, WH-Designer White
Step 2 Connect supply wires to fixture leads usingpush-in connectors. Step 1 Attach supply wiresto rear access cover. Step 3 Mount fixture to cabinet bottom using captive mounting screws.

ULH-CP

3-wire grounded cord and plug accessory for portable plug-in installation. 6' Cord and Plug Finish: BL-Black, WH-Designer White

ULH-DWM

Finish: Direct Wire Module
Optional jumper cord accessory for turningcorners or spanning cabinet frames.Straight-joiner-supplied for plug-together row mounting of multiple fixtures. BL-Black, WH-Designer White Facilitates code-complaint installationof fixture at front edge of cabinet. Includes wiring enclosure and 36” field-shortenable jumper cord that plugs into the right or left side of the fixture. 3"L x 3"D x 1"H

ULH-CONN

3/8" Miniature Die-Cast Electrical Connector Accessory for use when loop wiring with Romex or BX.
