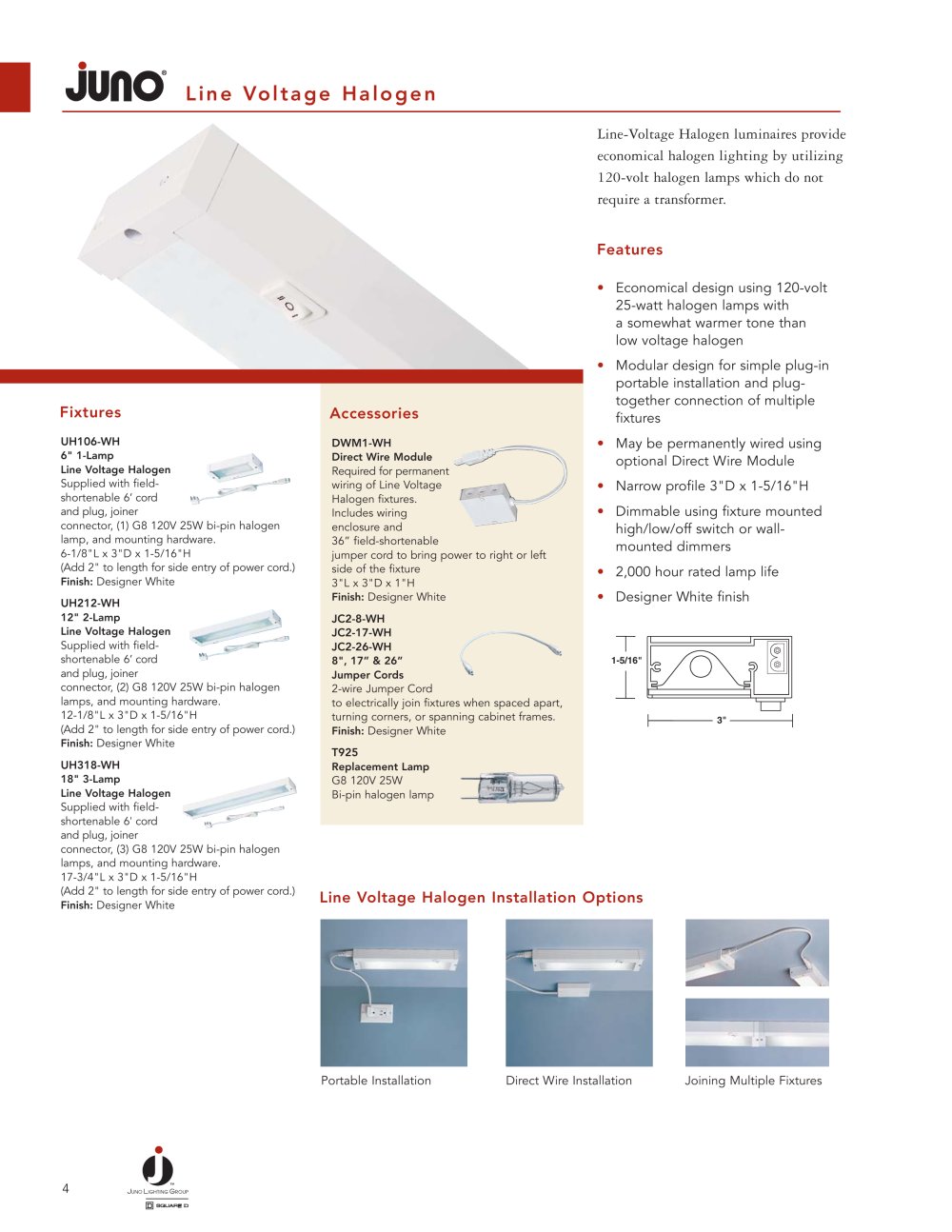

Line Voltage Halogen

Line-Voltage Halogen luminaires provide economical halogen lighting by utilizing 120-volt halogen lamps which do not require a transformer. Features

•Economical design using 120-volt25-watt halogen lamps with a somewhat warmer tone than low voltage halogen•Modular design for simple plug-in portable installation and plug-together connection of multiple fixtures•May be permanently wired usingoptional Direct Wire Module•Narrow profile 3"D x 1-5/16"H•Dimmable using fixture mountedhigh/low/off switch or wall-mounted dimmers•2,000 hour rated lamp life•Designer White finish

UH106-WH DWM1-WH
6" 1-Lamp Line Voltage Halogen Direct Wire Module Required for permanentwiring of Line Voltage Halogen fixtures. Includes wiring enclosure and 36” field-shortenable jumper cord to bring power to right or left side of the fixture 3"L x 3"D x 1"H Supplied with field-shortenable 6’ cord and plug, joinerconnector, (1) G8 120V 25W bi-pin halogen lamp, and mounting hardware. 6-1/8"L x 3"D x 1-5/16"H (Add 2" to length for side entry of power cord.)
Finish: Designer White UH212-WH
Finish: Designer White
12" 2-Lamp Line Voltage Halogen JC2-8-WH JC2-17-WH JC2-26-WH Supplied with field-shortenable 6’ cord and plug, joiner connector, (2) G8 120V 25W bi-pin halogen lamps, and mounting hardware. 12-1/8"L x 3"D x 1-5/16"H (Add 2" to length for side entry of power cord.)
8", 17” & 26” Jumper Cords 1-5/16" 2-wire Jumper Cord to electrically join fixtures when spaced apart, turning corners, or spanning cabinet frames.
3" Finish: Designer White
Finish: Designer White T925 UH318-WH
Replacement Lamp 18" 3-Lamp Line Voltage Halogen G8 120V 25W Bi-pin halogen lamp Supplied with field-shortenable 6' cord and plug, joiner connector, (3) G8 120V 25W bi-pin halogen lamps, and mounting hardware. 17-3/4"L x 3"D x 1-5/16"H (Add 2" to length for side entry of power cord.)
Finish: Designer White

Line Voltage Halogen Installation Options FixturesAccessories

Portable Installation Direct Wire InstallationJoining Multiple Fixtures

4
