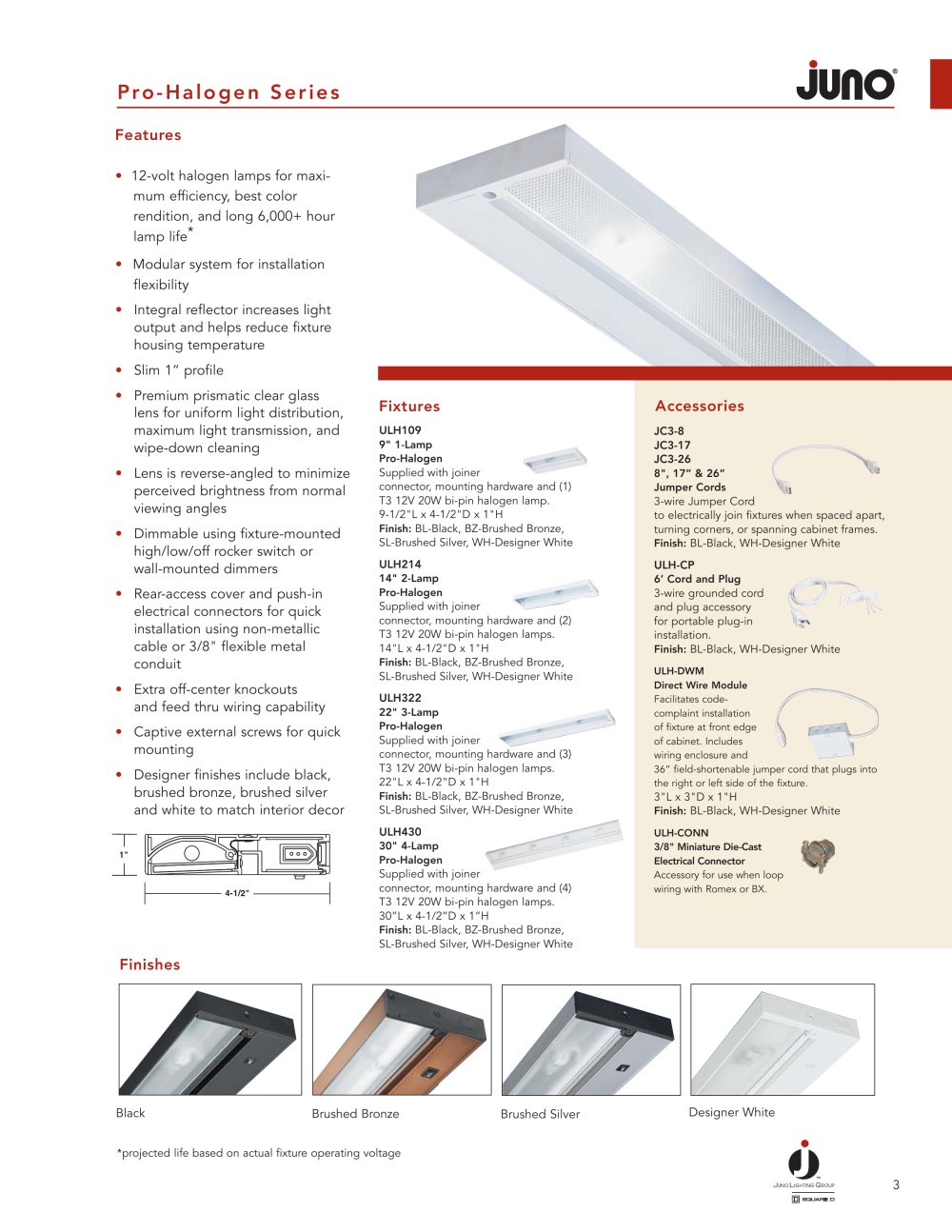

Pro-Halogen Series

Features

•12-volt halogen lamps for maxi- mum efficiency, best color rendition, and long 6,000+ hour lamp life*•Modular system for installationflexibility•Integral reflector increases lightoutput and helps reduce fixture housing temperature•Slim 1” profile•Premium prismatic clear glass lens for uniform light distribution,maximum light transmission, andwipe-down cleaning•Lens is reverse-angled to minimize perceived brightness from normalviewing angles•Dimmable using fixture-mountedhigh/low/off rocker switch or wall-mounted dimmers•Rear-access cover and push-inelectrical connectors for quickinstallation using non-metalliccable or 3/8" flexible metal conduit•Extra off-center knockouts and feed thru wiring capability•Captive external screws for quickmounting•Designer finishes include black,brushed bronze, brushed silverand white to match interior decor

ULH109 JC3-8 JC3-17 JC3-26
9" 1-Lamp Pro-Halogen Supplied with joiner connector, mounting hardware and (1) T3 12V 20W bi-pin halogen lamp. 9-1/2"L x 4-1/2"D x 1"H
8", 17” & 26” Jumper Cords 3-wire Jumper Cord to electrically join fixtures when spaced apart, turning corners, or spanning cabinet frames.
Finish: BL-Black, BZ-Brushed Bronze, SL-Brushed Silver, WH-Designer White
Finish: BL-Black, WH-Designer White ULH214 ULH-CP
14" 2-Lamp Pro-Halogen 6’ Cord and Plug 3-wire grounded cord and plug accessory for portable plug-in installation. Supplied with joiner connector, mounting hardware and (2) T3 12V 20W bi-pin halogen lamps. 14"L x 4-1/2"D x 1"H
Finish: BL-Black, WH-Designer White
Finish: BL-Black, BZ-Brushed Bronze, SL-Brushed Silver, WH-Designer White
ULH-DWMDirect Wire Module Facilitates code- complaint installation of fixture at front edge of cabinet. Includes wiring enclosure and 36” field-shortenable jumper cord that plugs into the right or left side of the fixture. ULH322
22" 3-Lamp Pro-Halogen Supplied with joiner connector, mounting hardware and (3) T3 12V 20W bi-pin halogen lamps. 22"L x 4-1/2"D x 1"H
Finish: BL-Black, BZ-Brushed Bronze, SL-Brushed Silver, WH-Designer White 3"L x 3"D x 1"H
Finish: Accessory for use when loop wiring with Romex or BX. BL-Black, WH-Designer White ULH430
ULH-CONN 3/8" Miniature Die-Cast Electrical Connector 1" 30" 4-Lamp Pro-Halogen Supplied with joiner connector, mounting hardware and (4) T3 12V 20W bi-pin halogen lamps. 30”L x 4-1/2”D x 1”H
4-1/2" Finish: BL-Black, BZ-Brushed Bronze, SL-Brushed Silver, WH-Designer White

Finishes FixturesAccessories

Black Brushed Bronze Brushed Silver Designer White

*projected life based on actual fixture operating voltage
