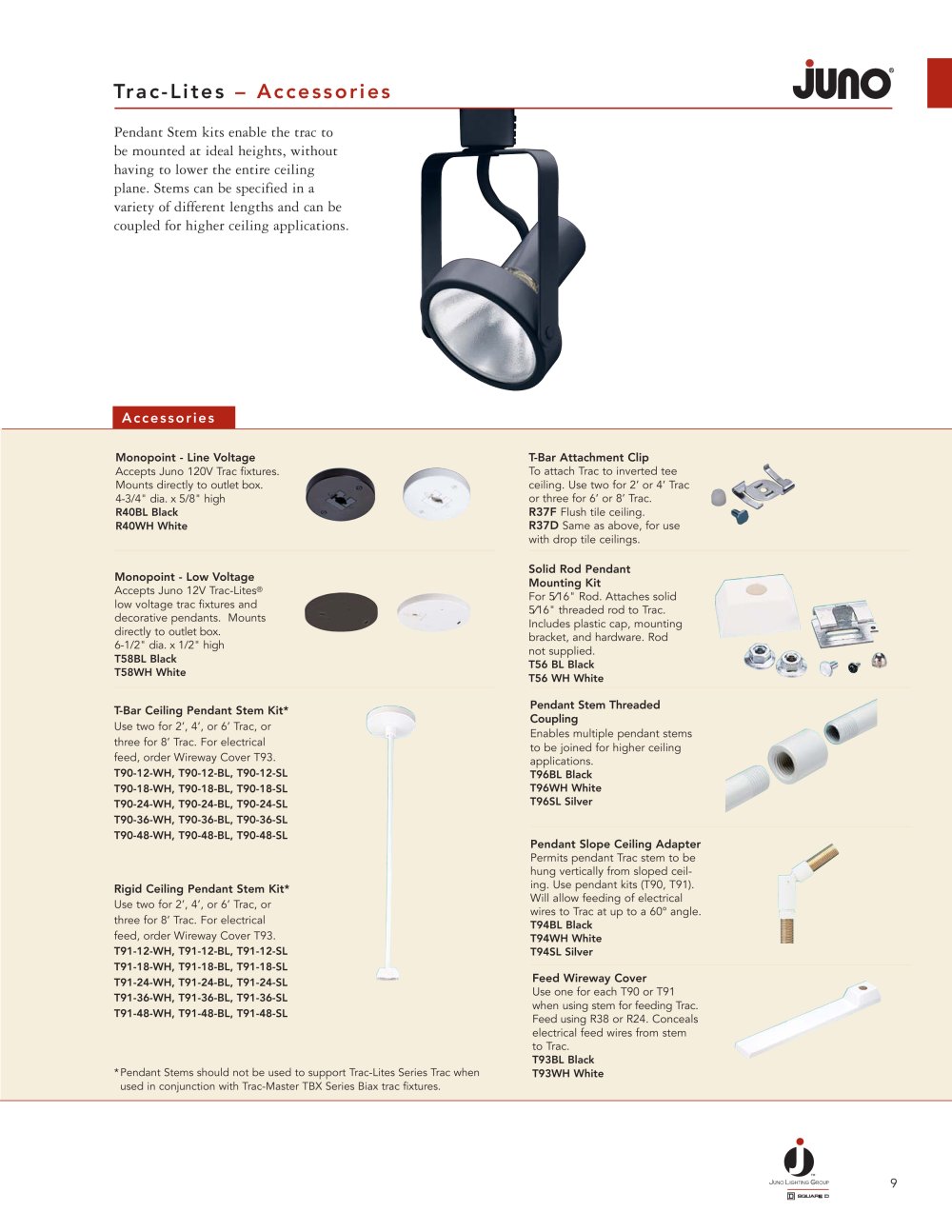

Trac-Lites Accessories

Pendant Stem kits enable the trac tobe mounted at ideal heights, without having to lower the entire ceiling plane. Stems can be specified in a variety of different lengths and can be coupled for higher ceiling applications.

Accessories

Monopoint - Line Voltage T-Bar Attachment Clip
Accepts Juno 120V Trac fixtures. Mounts directly to outlet box. 4-3/4"dia. x 5/8"high To attach Trac to inverted tee ceiling. Use two for 2 or 4 Trac or three for 6 or 8 Trac.
R40BL BlackR40WH White
R37F
Flush tile ceiling.
R37D
Same as above, for use with drop tile ceilings.
Monopoint - Low Voltage Solid Rod Pendant Mounting Kit
Accepts Juno 12V Trac-Lites
low voltage trac fixtures and decorative pendants. Mounts directly to outlet box. 6-1/2"dia. x 1/2"high For 5⁄16"Rod. Attaches solid5⁄16"threaded rod to Trac. Includes plastic cap, mounting bracket, and hardware. Rod not supplied.
T58BL BlackT58WH White T56 BL BlackT56 WH White
T-Bar Ceiling Pendant Stem Kit* Pendant Stem ThreadedCoupling
Use two for 2, 4, or 6 Trac, orthree for 8 Trac. For electricalfeed, order Wireway Cover T93. Enables multiple pendant stems to be joined for higher ceiling applications.
T90-12-WH, T90-12-BL, T90-12-SLT90-18-WH, T90-18-BL, T90-18-SL T90-24-WH, T90-24-BL, T90-24-SL T90-36-WH, T90-36-BL, T90-36-SL T90-48-WH, T90-48-BL, T90-48-SL T96BL BlackT96WH White T96SL Silver
Pendant Slope Ceiling Adapter
Permits pendant Trac stem to behung vertically from sloped ceil- ing. Use pendant kits (T90, T91). Will allow feeding of electricalwires to Trac at up to a 60angle.
Rigid Ceiling Pendant Stem Kit*
Use two for 2, 4, or 6 Trac, orthree for 8 Trac. For electrical feed, order Wireway Cover T93.
T94BL BlackT94WH WhiteT94SL Silver T91-12-WH, T91-12-BL, T91-12-SLT91-18-WH, T91-18-BL, T91-18-SL T91-24-WH, T91-24-BL, T91-24-SLT91-36-WH, T91-36-BL, T91-36-SLT91-48-WH, T91-48-BL, T91-48-SL
Feed Wireway Cover
Use one for each T90 or T91whenusing stem for feeding Trac. Feed usingR38 or R24. Concealselectrical feed wires from stem to Trac.
T93BL BlackT93WH White *Pendant Stems should not be used to support Trac-Lites Series Trac whenused in conjunction with Trac-Master TBX Series Biax trac fixtures.

9
