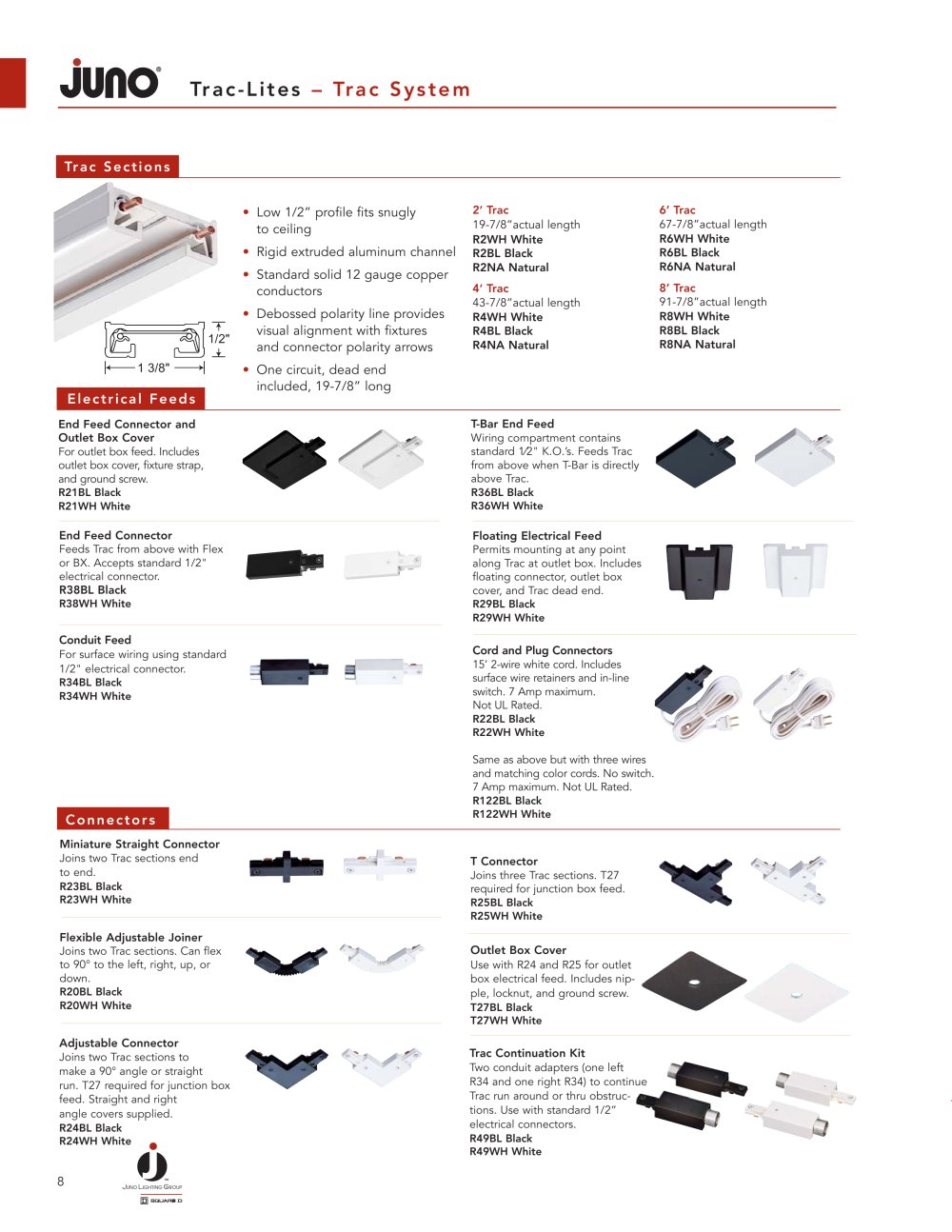

Trac-Lites– Trac System

Trac Sections

67-7/8”actual length

•Low 1/2” profile fits snugly to ceiling•Rigid extruded aluminum channel•Standard solid 12 gauge copper conductors•Debossed polarity line provides visual alignment with fixtures and connector polarity arrows •One circuit, dead end included, 19-7/8” long

2 R2WH WhiteR2BL Black R2NA Natural4
’ Trac R6WH WhiteR6BL Black R6NA Natural8’ Trac 19-7/8”actual length 91-7/8”actual length R8WH WhiteR8BL Black R8NA Natural
’ Trac 43-7/8”actual length R4WH WhiteR4BL Black R4NA Natural 6’ Trac

1 3/8"1/2"

Electrical Feeds

End Feed Connector and Outlet Box Cover T-Bar End Feed
Wiring compartment contains standard 1â„2"K.O.’s. Feeds Trac from above when T-Bar is directlyabove Trac. For outlet box feed. Includes outlet box cover, fixture strap, and ground screw. R21BL Black R21WH White R36BL BlackR36WH White End Feed Connector Floating Electrical Feed
Feeds Trac from above with Flex or BX. Accepts standard 1/2" electrical connector. Permits mounting at any point along Trac at outlet box. Includes floating connector, outlet box cover, and Trac dead end. R38BL Black
R38WH White R29BL Black R29WH White Conduit Feed
For surface wiring using standard1/2"electrical connector. Cord and Plug Connectors
15’ 2-wire white cord. Includes surface wire retainers and in-line switch. 7 Amp maximum. Not UL Rated. R34BL Black R34WH White R22BL Black R22WH White Same as above but with three wires and matching color cords. No switch. 7Amp maximum. Not UL Rated. R122BL Black R122WH White

Connectors

Miniature Straight Connector
Joins two Trac sections end to end. T Connector
Joins three Trac sections. T27required for junction box feed. R23BL Black R23WH White R25BL Black R25WH White Flexible Adjustable Joiner
Joins two Trac sections. Can flexto90°to the left, right, up, or down. Outlet Box Cover
Use with R24 and R25 for outletbox electrical feed. Includes nip-ple, locknut, and ground screw. R20BL BlackR20WH White T27BL BlackT27WH White Adjustable Connector
Joins two Trac sections tomake a 90°angle or straight run. T27 required for junction box feed. Straight and rightangle covers supplied. Trac Continuation Kit
Two conduit adapters (one left R34 and one right R34) to continue Trac run around or thru obstruc- tions. Use with standard 1/2” electrical connectors. R24BL Black R24WH White R49BL BlackR49WH White
