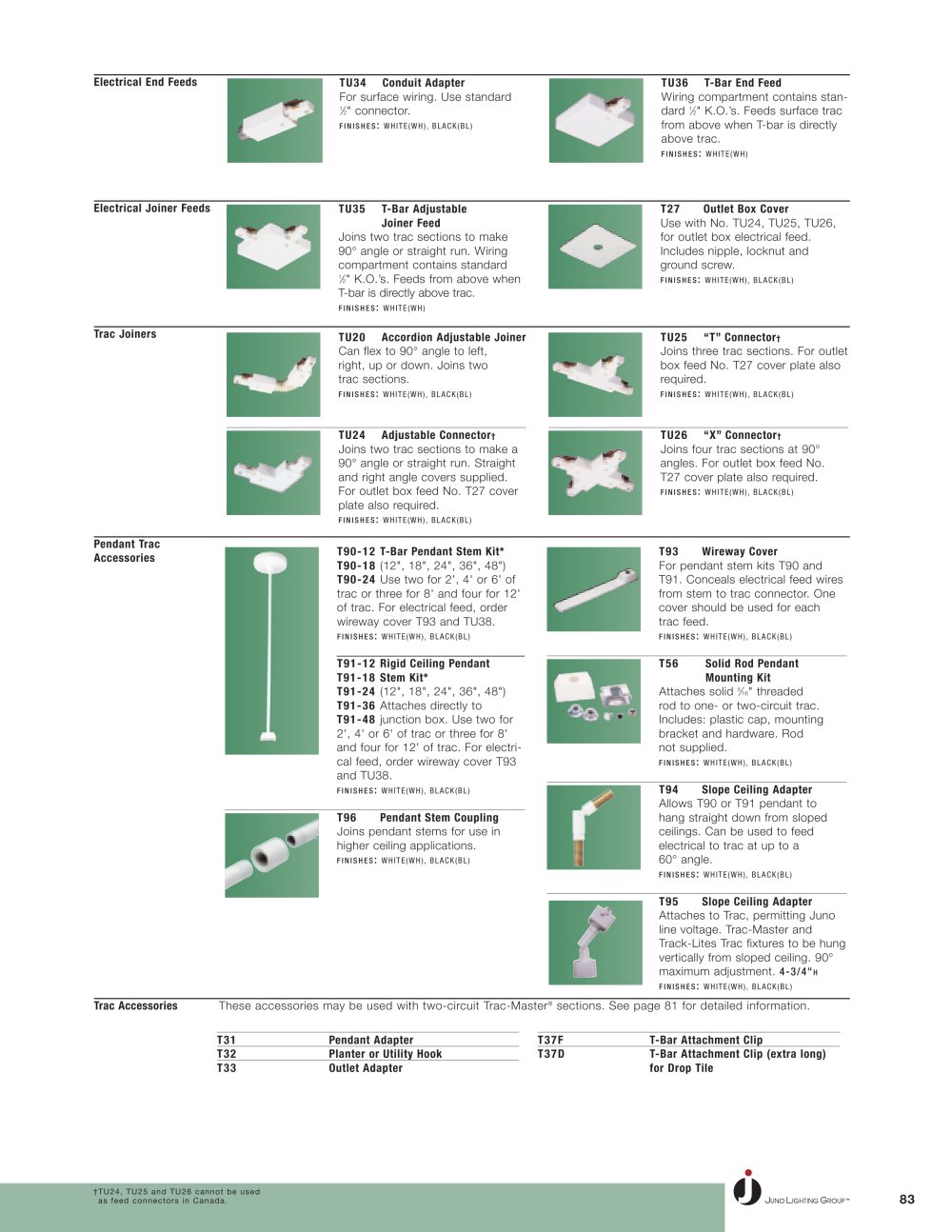

| | | Electrical End Feeds | | |
| | | TU34 Conduit Adapter For surface wiring. Use standard connector. finishes: white(WH), black(BL) | | TU36 T-Bar End Feed Wiring compartment contains standard J/2" K.O.'s. Feeds surface trac from above when T-bar is directly above trac. finishes: white(WH) | | |
| | | |
| | | |
| | | |
| | | Electrical Joiner Feeds | | |
| | | TU35 T-Bar Adjustable Joiner Feed Joins two trac sections to make 90° angle or straight run. Wiring compartment contains standard J/2" K.O.'s. Feeds from above when T-bar is directly above trac. fi ni shes: white(WH) | | T27 Outlet Box Cover Use with No. TU24, TU25, TU26: for outlet box electrical feed. Includes nipple, locknut and ground screw. fi ni shes: white(WH), black(BL) | | |
| | | |
| | | |
| | | |
| | | Trac Joiners | | |
| | | TU20 Accordion Adjustable Joiner Can flex to 90° angle to left right, up or down. Joins two trac sections. fi ni shes: white(WH), black(BL) | | TU25 "T" Connectort Joins three trac sections. For outlet box feed No. T27 cover plate also required. fi ni shes: whi te(WH), black(BL) | | |
| | | |
| | | |
| | | TU24 Adjustable Connectort Joins two trac sections to make a 90° angle or straight run. Straight and right angle covers supplied. For outlet box feed No. T27 cover plate also required. fi ni shes: whi te(WH), black(BL) | | TU26 "X" Connectort Joins four trac sections at 90° angles. For outlet box feed No. T27 cover plate also required. fi ni shes: whi te(WH), black(BL) | | |
| | | ^3 | | |
| | | |
| | | |
| | | |
| | | Pendant Trac Accessories | | |
| | | T90-12 T-Bar Pendant Stem Kit* T90-18 (12", 18", 24", 36", 48") T90-24 Use two for 2', 4' or 6' of trac or three for 8' and four for 12' of trac. For electrical feed, order wireway cover T93 and TU38. fi ni shes: whi te(WH), black(BL) | | T93 Wireway Cover For pendant stem kits T90 and T91. Conceals electrical feed wires from stem to trac connector. One cover should be used for each trac feed. fi ni shes: whi te(WH), black(BL) | | |
| | | |
| | | |
| | | T91-12 Rigid Ceiling Pendant T91-18 Stem Kit* T91-24 (12", 18", 24", 36", 48") T91-36 Attaches directly to T91-48 junction box. Use two for 2', 4' or 6' of trac or three for 8' and four for 12' of trac. For electrical feed, order wireway cover T93 and TU38. fi ni shes: whi te(WH), black(BL) | | T56 Solid Rod Pendant Mounting Kit Attaches solid ^ threaded rod to one- or two-circuit trac. Includes: plastic cap, mounting bracket and hardware. Rod not supplied. fi ni shes: white(WH), black(BL) | | |
| | | |
| | | T94 Slope Ceiling Adapter Allows T90 or T91 pendant to hang straight down from sloped ceilings. Can be used to feed electrical to trac at up to a 60° angle. fi ni shes: white(WH), black(BL) | | |
| | | |
| | | T96 Pendant Stem Coupling Joins pendant stems for use in higher ceiling applications. fi ni shes: whi te(WH), black(BL) | | |
| | | |
| | | |
| | | T95 Slope Ceiling Adapter Attaches to Trac, permitting Juno line voltage. Trac-Master and Track-Lites Trac fixtures to be hung vertically from sloped ceiling. 90° maximum adjustment. 4-3/4"h fi ni shes: whi te(wh), black(bl) | | |
| | | |
| | | Trac Accessories | | These accessories may be used with two-circuit Trac-Master® sections. See page 81 for detailed information. | | |
| | | |
| | | |
| | | T31_Pendant Adapter_ T37F_T-Bar Attachment Clip_ T32_Planter or Utility Hook_ T37D T-Bar Attachment Clip (extra long) T33 Outlet Adapter for Drop Tile | | |
| | | |
| | | 1TU24, TU25 and TU26 cannot be used as feed connectors In Canada. | | |
| | | 83 | | |
| | | Juno Lighting Group™ | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
