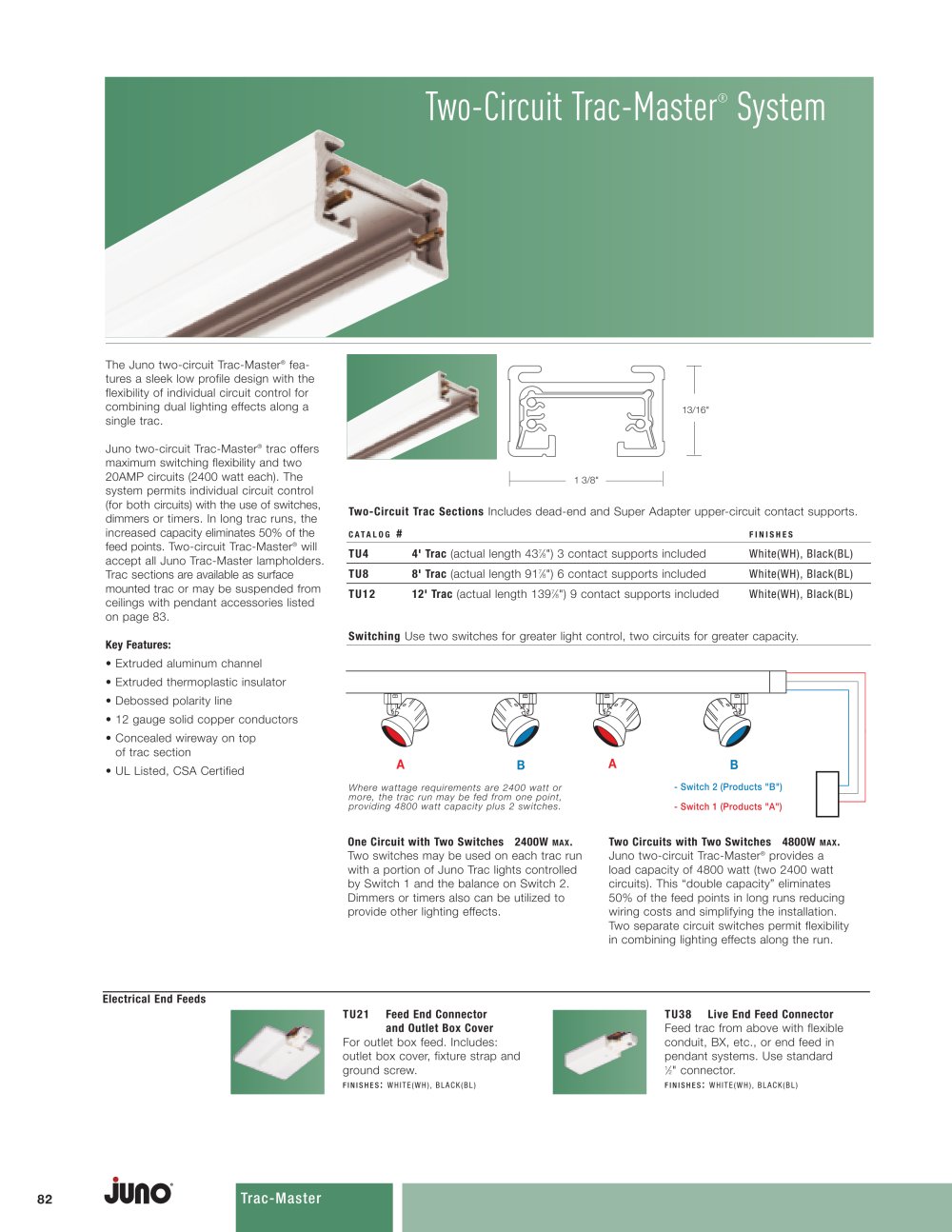

Two-Circuit Trac-Master® System
3
The Juno two-circuit Trac-Master® fea­tures a sleek low profile design with the flexibility of individual circuit control for combining dual lighting effects along a single trac.
Juno two-circuit Trac-Master® trac offers
maximum switching flexibility and two
20AMP circuits (2400 watt each). The
system permits individual circuit control
(for both circuits) with the use of switches, dimmers or timers. In long trac runs, the increased capacity eliminates 50% of the
feed points. Two-circuit Trac-Master® will accept all Juno Trac-Master lampholders. Trac sections are available as surface mounted trac or may be suspended from ceilings with pendant accessories listed
on page 83. Key Features:
• Extruded aluminum channel
• Extruded thermoplastic insulator
• Debossed polarity line
• 12 gauge solid copper conductors
• Concealed wireway on top
of trac section
• UL Listed, CSA Certified
13/16"
Two-Circuit Trac Sections Includes dead-end and Super Adapter upper-circuit contact supports.
catalog finishes
TU4
4' Trac (actual length 43%") 3 contact supports Included
White(WH), Black(BL)
TU8
8' Trac (actual length 917»") 6 contact supports Included
White(WH), Black(BL)
TU12
12' Trac (actual length 1397/8") 9 contact supports Included
White(WH), Black(BL)
Switching Use two switches for greater light control, two circuits for greater capacity.
B
- Switch 2 (Products "B")
- Switch 1 (Products "A")
Where wattage requirements are 2400 watt or more, the trac run may be fed from one point, providing 4800 watt capacity plus 2 switches.
One Circuit with Two Switches 2400W max.
Two switches may be used on each trac run with a portion of Juno Trac lights controlled by Switch 1 and the balance on Switch 2.
Dimmers or timers also can be utilized to
provide other lighting effects.
Two Circuits with Two Switches 4800W max.
Juno two-circuit Trac-Master® provides a load capacity of 4800 watt (two 2400 watt
circuits). This "double capacity" eliminates
50% of the feed points in long runs reducing wiring costs and simplifying the installation. Two separate circuit switches permit flexibility in combining lighting effects along the run.
Electrical End Feeds
TU21 Feed End Connector and Outlet Box Cover
For outlet box feed. Includes: outlet box cover, fixture strap and ground screw. finishes: white(WH), black(BL)
TU38 Live End Feed Connector
Feed trac from above with flexible conduit, BX, etc., or end feed in
pendant systems. Use standard
1/2" connector.
finishes: white(WH), black(BL)
Trac-Master
82
