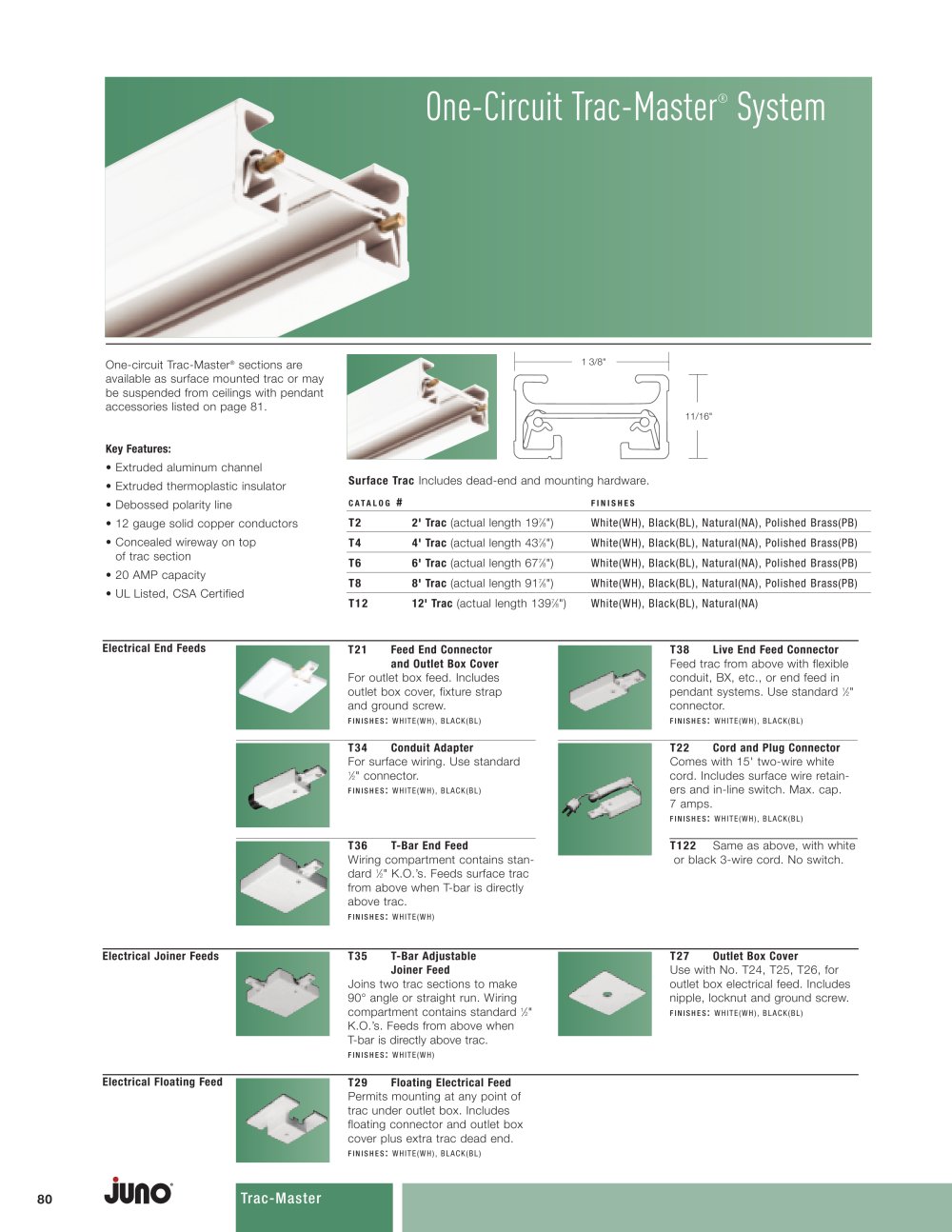

| | | -Circuit Trac-Master® System | | |
| | | |
| | | One-circuit Trac-Master® sections are available as surface mounted trac or may be suspended from ceilings with pendant accessories listed on page 81. | | |
| | | 11/16" | | |
| | | |
| | | |
| | | Key Features: • Extruded aluminum channel • Extruded thermoplastic insulator • Debossed polarity line • 12 gauge solid copper conductors • Concealed wireway on top of trac section • 20 AMP capacity • UL Listed, CSA Certified | | |
| | | Surface Trac Includes dead-end and mounting hardware. | | |
| | | |
| | | | | | | | | | | catalog # | | finishes | | | | T2 | 2' Trac (actual length 19'/8") | White(WH), Black(BL), Natural(NA), Polished Brass(PB) | | | | T4 | 4' Trac (actual length 4378") | White(WH), Black(BL), Natural(NA), Polished Brass(PB) | | | | T6 | 6' Trac (actual length 6778") | White(WH), Black(BL), Natural(NA), Polished Brass(PB) | | | | T8 | 8' Trac (actual length 917") | White(WH), Black(BL), Natural(NA), Polished Brass(PB) | | | | T12 | 12' Trac (actual length 1397") | White(WH), Black(BL), Natural(NA) | | | | | | | | | | |
| | | |
| | | |
| | | Electrical End Feeds | | |
| | | T21 Feed End Connector and Outlet Box Cover For outlet box feed. Includes outlet box cover, fixture strap and ground screw. finishes: white(WH), black(BL) | | T38 Live End Feed Connector Feed trac from above with flexible conduit, BX, etc., or end feed in pendant systems. Use standard V/ connector. fi ni shes: white(WH), black(BL) | | |
| | | |
| | | |
| | | T34 Conduit Adapter For surface wiring. Use standard 1/2" connector. finishes: white(WH), black(BL) | | T22 Cord and Plug Connector Comes with 15' two-wire white cord. Includes surface wire retainers and in-line switch. Max. cap. 7 amps. fi ni shes: white(WH), black(BL) | | |
| | | |
| | | |
| | | T36 T-Bar End Feed Wiring compartment contains standard ^ K.O.'s. Feeds surface trac from above when T-bar is directly above trac. fi ni shes: white(WH) | | T122 Same as above, with white or black 3-wire cord. No switch. | | |
| | | |
| | | |
| | | Electrical Joiner Feeds | | T35 T-Bar Adjustable Joiner Feed Joins two trac sections to make 90° angle or straight run. Wiring compartment contains standard ^" K.O.'s. Feeds from above when T-bar is directly above trac. fi ni shes: white(WH) | | T27 Outlet Box Cover Use with No. T24, T25, T26, for outlet box electrical feed. Includes nipple, locknut and ground screw. fi ni shes: white(WH), black(BL) | | |
| | | |
| | | |
| | | |
| | | Electrical Floating Feed | | |
| | | T29 Floating Electrical Feed Permits mounting at any point of trac under outlet box. Includes floating connector and outlet box cover plus extra trac dead end. fi ni shes: white(WH), black(BL) | | |
| | | |
| | | |
| | | Trac-Master | | |
| | | 80 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
