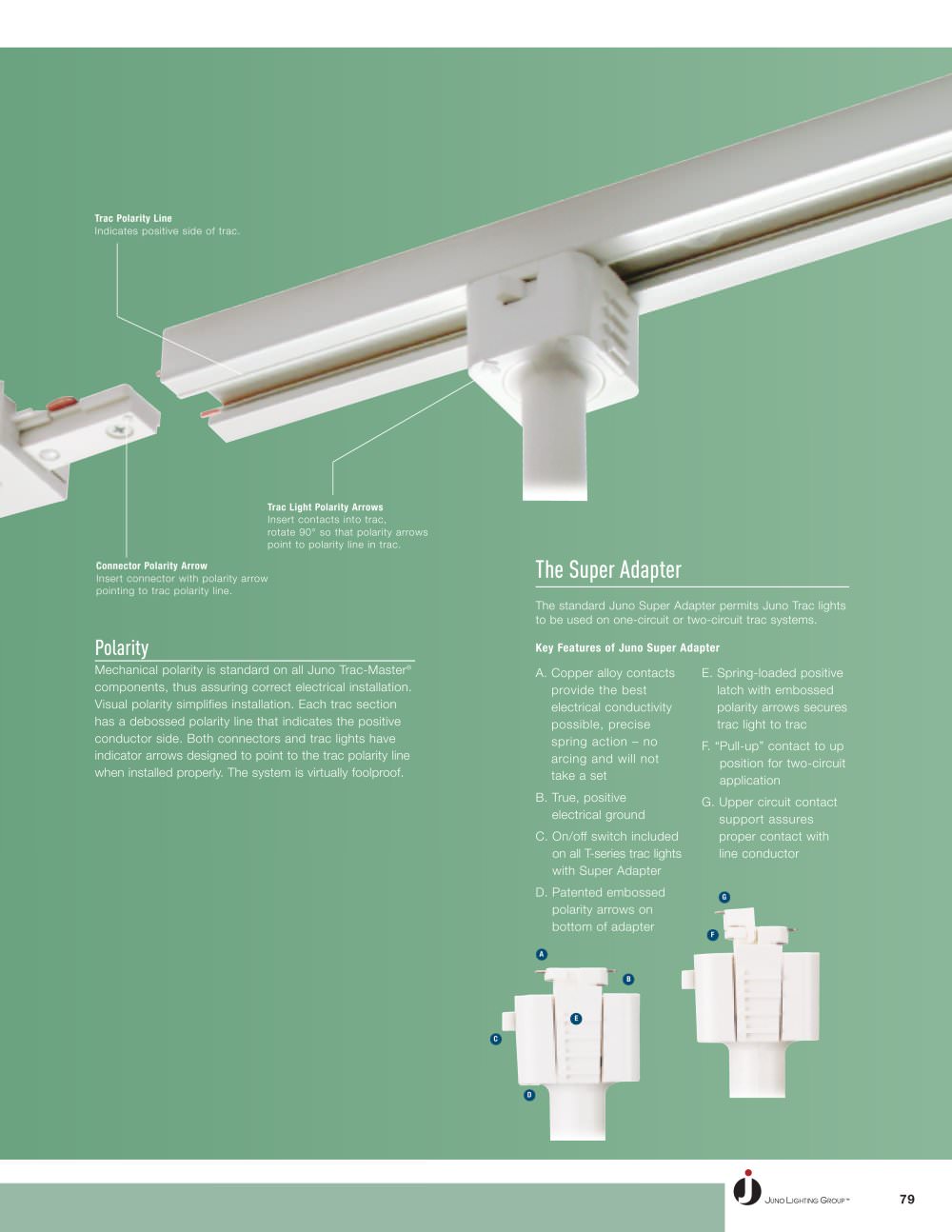

Trac Polarity Line
Indicates positive side of trac.
Trac Light Polarity Arrows
Insert contacts into trac,
rotate 90° so that polarity arrows
point to polarity line in trac.
The Super Adapter
Connector Polarity Arrow
Insert connector with polarity arrow pointing to trac polarity line.
The standard Juno Super Adapter permits Juno Trac lights to be used on one-circuit or two-circuit trac systems.
Key Features of Juno Super Adapter
Polarity_
Mechanical polarity is standard on all Juno Trac-Master® components, thus assuring correct electrical installation. Visual polarity simplifies installation. Each trac section has a debossed polarity line that indicates the positive conductor side. Both connectors and trac lights have indicator arrows designed to point to the trac polarity line when installed properly. The system is virtually foolproof.
A. Copper alloy contacts provide the best electrical conductivity possible, precise spring action - no arcing and will not take a set
B. True, positive electrical ground
C. On/off switch included on all T-series trac lights with Super Adapter
D. Patented embossed polarity arrows on bottom of adapter
E. Spring-loaded positive latch with embossed polarity arrows secures trac light to trac
F. "Pull-up" contact to up
position for two-circuit application
G. Upper circuit contact support assures proper contact with line conductor
G
A
B
Juno Lighting Group- 79
