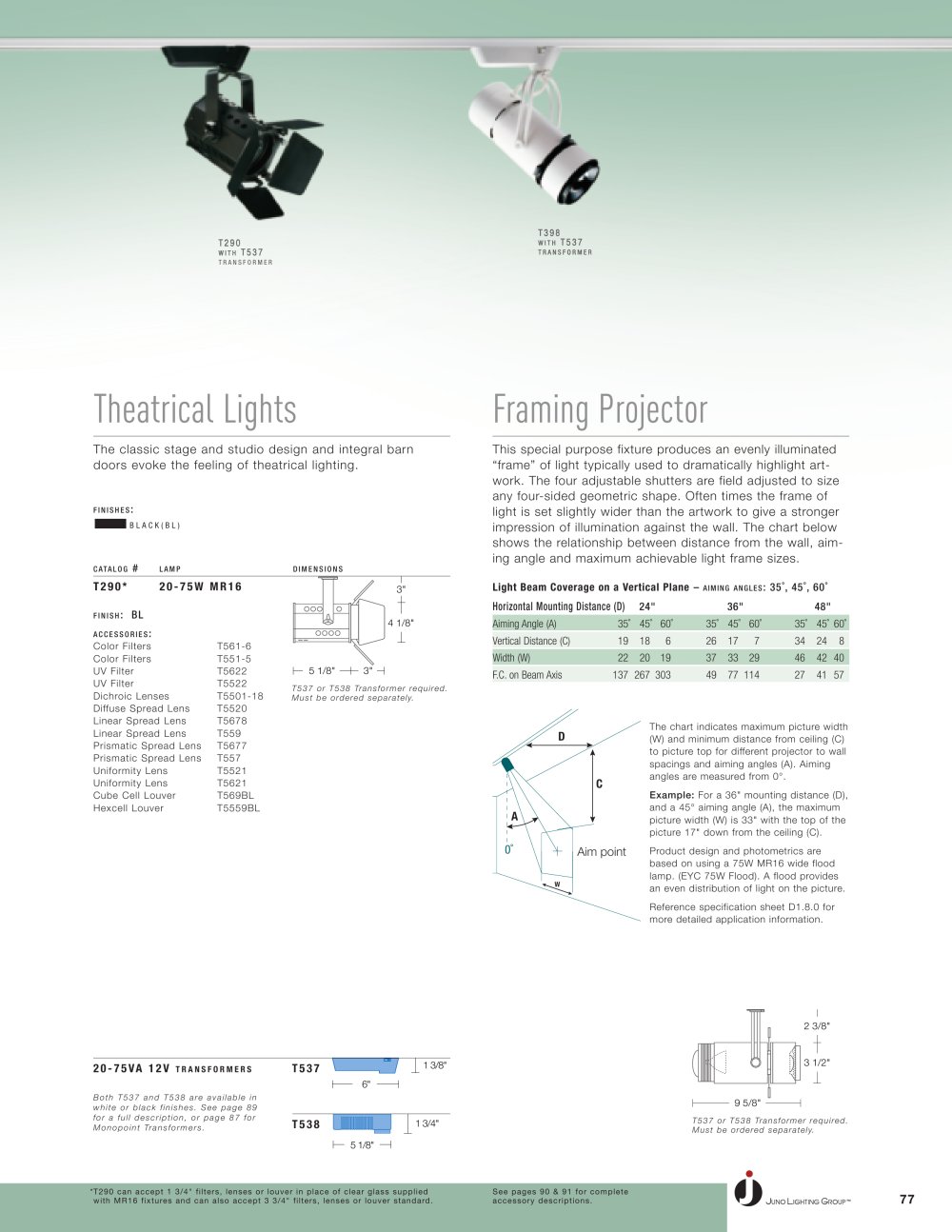

t398

with t537

transformer

t290

with t537

TRANSFORMER

Theatrical Lights

Framing Projector

The classic stage and studio design and integral barn doors evoke the feeling of theatrical lighting.

This special purpose fixture produces an evenly illuminated "frame" of light typically used to dramatically highlight artwork. The four adjustable shutters are field adjusted to size any four-sided geometric shape. Often times the frame of

light is set slightly wider than the artwork to give a stronger impression of illumination against the wall. The chart below

shows the relationship between distance from the wall, aiming angle and maximum achievable light frame sizes.

finishes:

huh black(bl)


	catalog # lamp
	*T290 20-75W**	MR16
	finish:BL
	accessories:
	Color Filters	T561-6
	Color Filters	T551-5
	UV Filter	T5622
	UV Filter	T5522
	Dichroic Lenses	T5501-18
	Diffuse Spread Lens	T5520
	Linear Spread Lens	T5678
	Linear Spread Lens	T559
	Prismatic Spread Lens	T5677
	Prismatic Spread Lens	T557
	Uniformity Lens	T5521
	Uniformity Lens	T5621
	Cube Cell Louver
	Hexcell Louver	T5559BL

di mensi ons


		_J	/
ooo		o
	è-
oooo


Light Beam Coverage on a Vertical Plane		-aiming angles: 35°, 45°, 60'
Horizontal Mounting Distance (D) 24"		36"	48"
Aiming Angle (A)	35" 45" 60"	35" 45" 60"	35" 45" 60"
Vertical Distance (C)	19 18 6	26 17 7	34 24 8
Width (W)	22 20 19	37 33 29	46 42 40
F.C. on Beam Axis	137 267 303	49 77 114	27 41 57

4 1/8"

5 1/8"

T537 or T538 Transformer required Must be ordered separately.

The chart indicates maximum picture width

(W) and minimum distance from ceiling (C)

to picture top for different projector to wall

spacings and aiming angles (A). Aiming angles are measured from 0°.

Example: For a 36" mounting distance (D), and a 45° aiming angle (A), the maximum

picture width (W) is 33" with the top of the

picture 17" down from the ceiling (C).

Product design and photometrics are based on using a 75W MR16 wide flood lamp. (EYC 75W Flood). A flood provides an even distribution of light on the picture.

Reference specification sheet D1.8.0 for more detailed application information.

2 3/8"

3 1/2"

1 3/8"

20-75VA 12V transformers

T537

Both T537 and T538 are available in white or black finishes. See page 89 for a full description, or page 87 for

Monopoint Transformers.

T537 or T538 Transformer required

Must be ordered separately.

T538

1 3/4"

5 1/8"

*T290 can accept 1 3/4" filters, lenses or louver In place of clear glass supplied with MR16 fixtures and can also accept 3 3/4" filters, lenses or louver standard.

See pages 90 & 91 for complete accessory descriptions.
