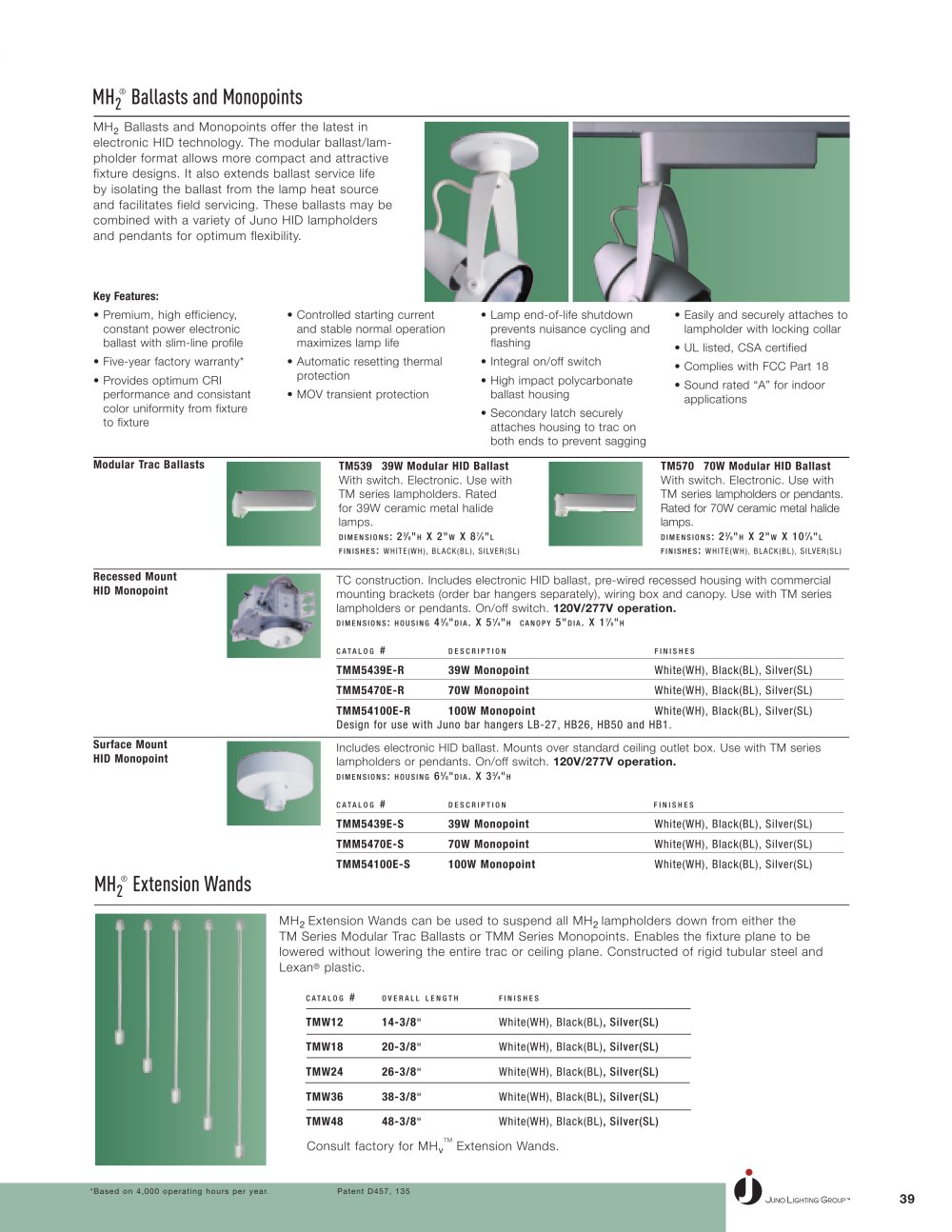

| | | MH2® Ballasts and Monopoints | | |
| | | |
| | | MH2 Ballasts and Monopoints offer the latest In electronic HID technology. The modular ballast/lampholder format allows more compact and attractive fixture designs. It also extends ballast service life by isolating the ballast from the lamp heat source and facilitates field servicing. These ballasts may be combined with a variety of Juno HID lampholders and pendants for optimum flexibility. | | |
| | | |
| | | Key Features: • Premium, high efficiency constant power electronic ballast with slim-line profile • Five-year factory warranty* • Provides optimum CRI performance and consistant color uniformity from fixture to fixture | | |
| | | • Controlled starting current and stable normal operation maximizes lamp life • Automatic resetting thermal protection • MOV transient protection | | • Lamp end-of-life shutdown prevents nuisance cycling and flashing • Integral on/off switch • High impact polycarbonate ballast housing • Secondary latch securely attaches housing to trac on both ends to prevent sagging | | • Easily and securely attaches to lampholder with locking collar • UL listed, CSA certified • Complies with FCC Part 18 • Sound rated "A" for indoor applications | | |
| | | |
| | | |
| | | |
| | | |
| | | Modular Trac Ballasts | | |
| | | TM539 39W Modular HID Ballast With switch. Electronic. Use with TM series lampholders. Rated for 39W ceramic metal halide lamps. dimensions:23/8"h X 2"w X 8%"l finishes: white(wh), black(bl), silver(sl) | | TM570 70W Modular HID Ballast With switch. Electronic. Use with TM series lampholders or pendants. Rated for 70W ceramic metal halide lamps. dimensions:2%"h X 2"w X 107/s"l finishes: white(wh), blackS), silver(sl) | | |
| | | |
| | | |
| | | Recessed Mount HID Monopoint | | |
| | | TC construction. Includes electronic HID ballast, pre-wlred recessed housing with commercial mounting brackets (order bar hangers separately), wiring box and canopy. Use with TM series lampholders or pendants. On/off switch. 120V/277V operation. dimensions: housing 4%"dia. X 5,/1"h canopy 5"dia. X 1%"h | | |
| | | |
| | | |
| | | | | | | | | | | catalog # | description | finishes | | | | TMM5439E-R | 39W Monopoint | White(WH), Black(BL), Silver(SL) | | | | TMM5470E-R | 70W Monopoint | White(WH), Black(BL), Silver(SL) | | | | | | | | | | |
| | | |
| | | TMM54100E-R 100W Monopoint White(WH), Black(BL), Silver(SL) Design for use with Juno bar hangers LB-27, HB26, HB50 and HB1. | | |
| | | |
| | | Surface Mount HID Monopoint | | |
| | | Includes electronic HID ballast. Mounts over standard ceiling outlet box. Use with TM series lampholders or pendants. On/off switch. 120V/277V operation. di mensi ons: housing 65/8"di a. X 33/4"h | | |
| | | |
| | | |
| | | I | | |
| | | catalog # | | |
| | | descr pt on | | finishes | | |
| | | |
| | | | | | | | | | | | | TMM5439E-S | 39W Monopoint | White(WH), | Black(BL), | Silver(SL) | | | | TMM5470E-S | 70W Monopoint | White(WH), | Black(BL), | Silver(SL) | | | | TMM54100E-S | 100W Monopoint | White(WH), | Black(BL), | Silver(SL) | | | | | | | | | | | | |
| | | |
| | | MH2® Extension Wands | | |
| | | |
| | | |
| | | MH2 Extension Wands can be used to suspend all MH2 lampholders down from either the TM Series Modular Trac Ballasts or TMM Series Monopoints. Enables the fixture plane to be lowered without lowering the entire trac or ceiling plane. Constructed of rigid tubular steel and Lexan® plastic. | | |
| | | |
| | | | | | | | | | | catalog # | overall length | f n shes | | | | TMW12 | 14-3/8" | White(WH), Black(BL), Silver(SL) | | | | TMW18 | 20-3/8" | White(WH), Black(BL), Silver(SL) | | | | TMW24 | 26-3/8" | White(WH), Black(BL), Silver(SL) | | | | TMW36 | 38-3/8" | White(WH), Black(BL), Silver(SL) | | | | TMW48 | 48-3/8" | White(WH), Black(BL), Silver(SL) | | | | | | | | | | |
| | | |
| | | Consult factory for MHv Extension Wands. | | |
| | | |
| | | *Based on 4,000 operating hours per year. | | Patent D457, 135 | | |
| | | 39 | | |
| | | |
| | | |
