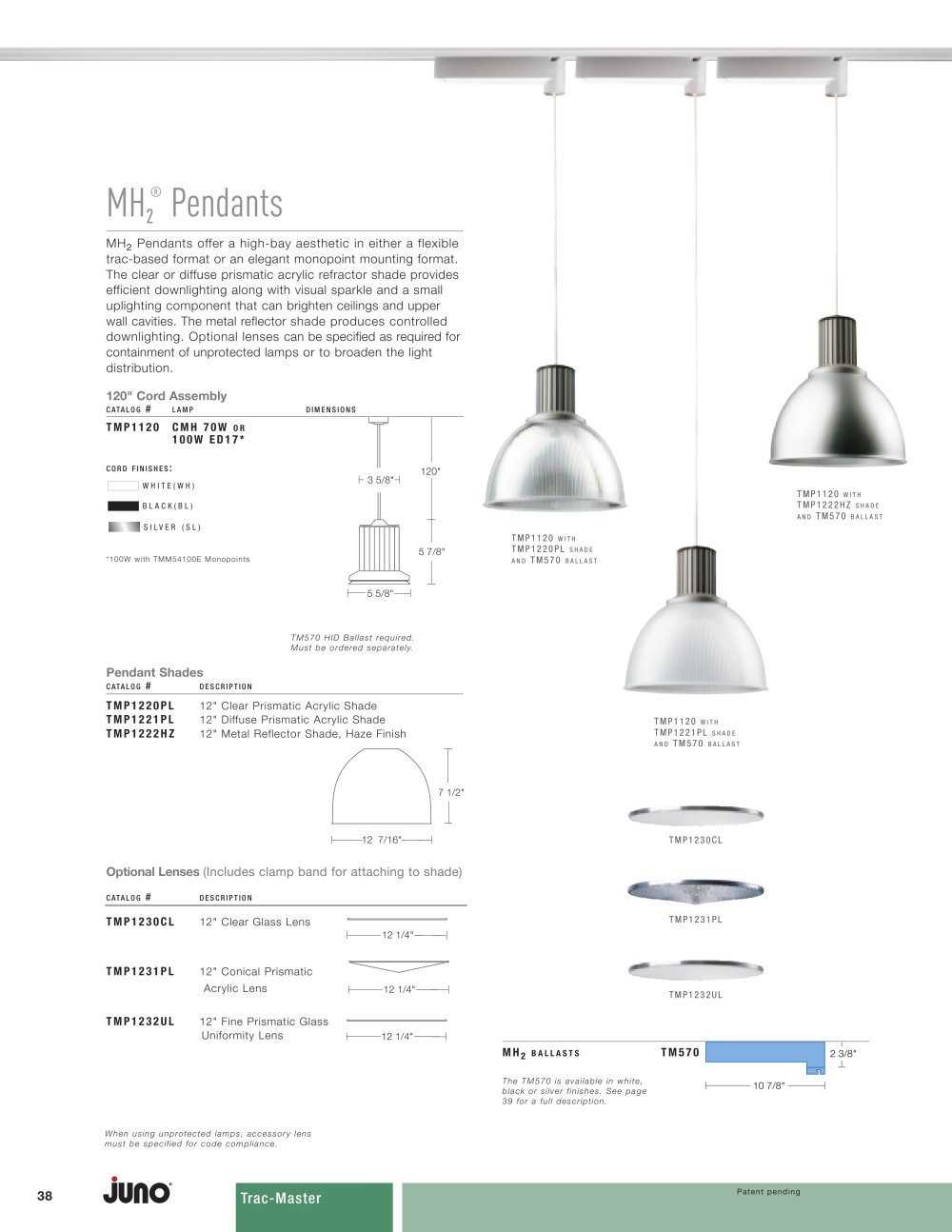

| | | MH ,* Pendants | | |
| | | |
| | | MH2 Pendants offer a high-bay aesthetic in either a flexible trac-based format or an elegant monopoint mounting format. The clear or diffuse prismatic acrylic refractor shade provides efficient downlighting along with visual sparkle and a small uplighting component that can brighten ceilings and upper wall cavities. The metal reflector shade produces controlled downlighting. Optional lenses can be specified as required for containment of unprotected lamps or to broaden the light distribution. | | |
| | | 1 | | |
| | | |
| | | 120" Cord Assembly catalog # lamp | | |
| | | dimensions | | |
| | | |
| | | |
| | | TMP1120 CMH 70W or 100W ED17* cord finishes: i i white(wh) black(bl) silver (sl) *100W with TMM54100E Monopoints | | |
| | | 120" | | |
| | | |
| | | 3 5/8" | | |
| | | |
| | | TMP1120 with TMP1 222HZ shade and TM570 ballast | | |
| | | |
| | | TMP1120 with TMP1 220PL shade and TM570 ballast | | |
| | | I | | |
| | | 5 7/8" | | |
| | | |
| | | |
| | | 5 5/8" | | |
| | | |
| | | |
| | | TM570 HID Ballast required Must be ordered separately | | |
| | | |
| | | Pendant Shades catalog # description | | |
| | | |
| | | TMP1 220PL 12" Clear Prismatic Acrylic Shade TMP1221PL 12" Diffuse Prismatic Acrylic Shade TMP1 222HZ 12" Metal Reflector Shade, Haze Finish | | |
| | | TMP1120 with TMP1221PL shade and TM570 ballast | | |
| | | |
| | | |
| | | 7 1/2" | | |
| | | |
| | | 12 7/16" | | TMP1 230CL | | |
| | | |
| | | |
| | | Optional Lenses (Includes clamp band for attaching to shac | | |
| | | |
| | | catalog # | | |
| | | description | | |
| | | |
| | | TMP1231PL | | |
| | | TMP1 230CL 12" Clear Glass Lens | | |
| | | |
| | | |
| | | -12 1/4"- | | |
| | | |
| | | TMP1231PL 12" Conical Prismatic Acrylic Lens | | |
| | | 12 1/4" | | |
| | | TMP1 232UL | | |
| | | |
| | | |
| | | |
| | | TMP1 232UL 12" Fine Prismatic Glass '- Uniformity Lens |-12 1/4"- | | |
| | | | | | | | | | | MH2 ballasts | TM570 | 1 2 3/8" | | | | | | 1 -L | | | | | | | | | | |
| | | |
| | | The TM570 is available in white, black or silver finishes. See page 39 for a full description. | | |
| | | -10 7/8" - | | |
| | | |
| | | |
| | | When using unprotected lamps, accessory lens must be specified for code compliance. | | |
| | | |
| | | Juno | | |
| | | Patent pending | | |
| | | 38 | | |
| | | Trac-Master | | |
| | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
