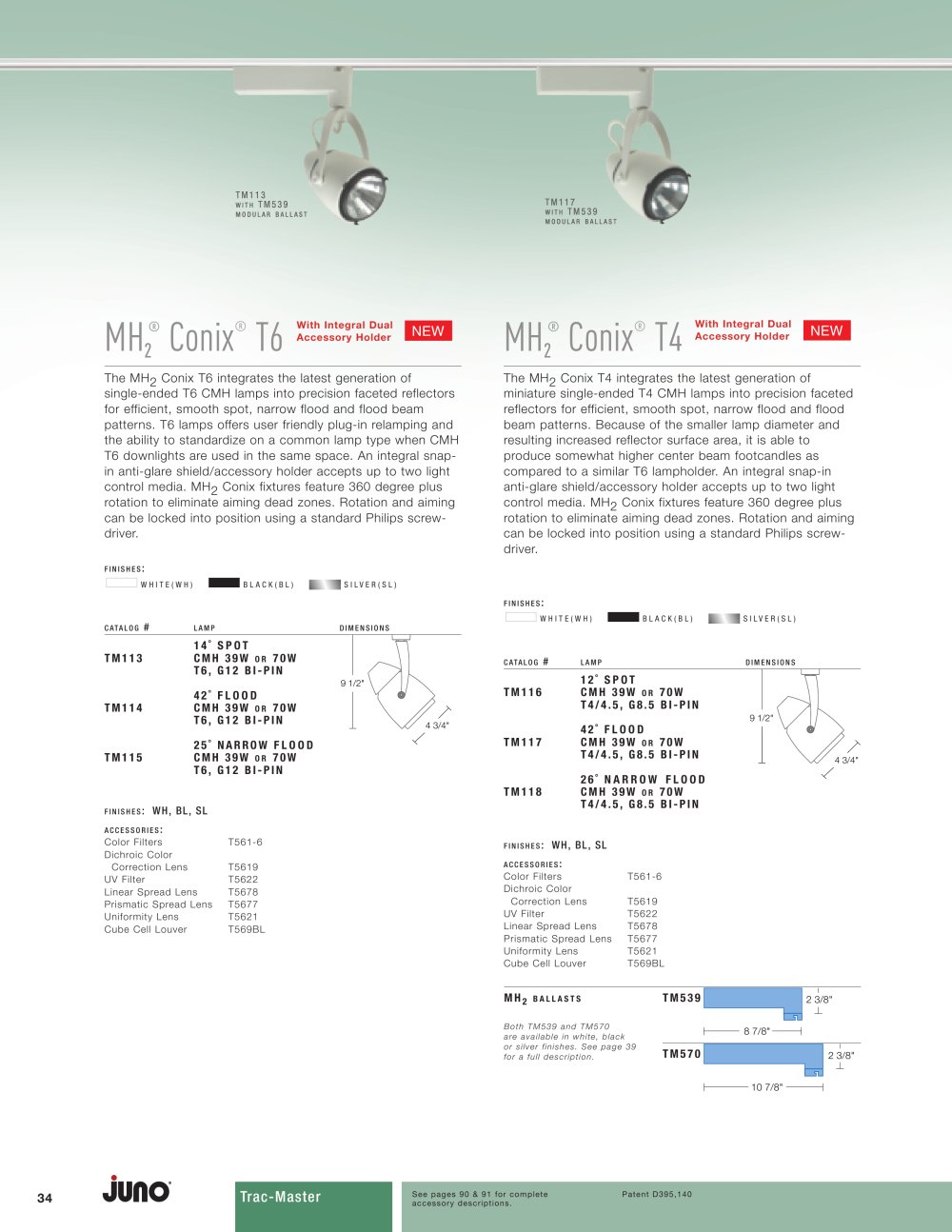

| | | tm113 with tm539 modular ballast | | |
| | | |
| | | With Integral Dual Accessory Holder | | |
| | | MH2® Conix® T6 | | MH2® Conix® T4 | | |
| | | With Integral Dual Accessory Holder | | |
| | | NEW | | | NEW | | |
| | | |
| | | |
| | | |
| | | |
| | | |
| | | The MH2 Conix T6 integrates the latest generation of single-ended T6 CMH lamps into precision faceted reflectors for efficient, smooth spot, narrow flood and flood beam patterns. T6 lamps offers user friendly plug-in relamping and the ability to standardize on a common lamp type when CMH T6 downlights are used in the same space. An integral snap-in anti-glare shield/accessory holder accepts up to two light control media. MH2 Conix fixtures feature 360 degree plus rotation to eliminate aiming dead zones. Rotation and aiming can be locked into position using a standard Philips screwdriver. | | The MH2 Conix T4 integrates the latest generation of miniature single-ended T4 CMH lamps into precision faceted reflectors for efficient, smooth spot, narrow flood and flood beam patterns. Because of the smaller lamp diameter and resulting increased reflector surface area, it is able to produce somewhat higher center beam footcandles as compared to a similar T6 lampholder. An integral snap-in anti-glare shield/accessory holder accepts up to two light control media. MH2 Conix fixtures feature 360 degree plus rotation to eliminate aiming dead zones. Rotation and aiming can be locked into position using a standard Philips screwdriver. | | |
| | | |
| | | |
| | | finishes: white(wh) | | |
| | | IbLACK(BL) SILVER(SL) | | |
| | | |
| | | finishes: WHITE(WH) | | |
| | | IbLACK(BL) SILVER(SL) | | |
| | | catalog # | | |
| | | DIMENSIONS | | |
| | | lamp | | |
| | | |
| | | 14° SPOT TM113 CMH 39W or 70W T6, G12 BI-PIN 42° FLOOD TM114 CMH 39W or 70W T6, G12 BI-PIN 25° NARROW FLOOD TM115 CMH 39W or 70W T6, G12 BI-PIN | | |
| | | catalog # | | |
| | | lamp | | dimensions | | |
| | | |
| | | 12° SPOT TM116 CMH 39W or 70W T4/4.5, G8.5 BI-PIN 42° FLOOD TM117 CMH 39W or 70W T4/4.5, G8.5 BI-PIN 26° NARROW FLOOD TM118 CMH 39W or 70W T4/4.5, G8.5 BI-PIN | | |
| | | 9 1/2" | | |
| | | |
| | | 9 1/2" | | |
| | | |
| | | 4 3/4" | | |
| | | |
| | | |
| | | finishes: WH, BL, SL accessories: Color Filters Dichroic Color Correction Lens UV Filter Linear Spread Lens Prismatic Spread Lens Uniformity Lens Cube Cell Louver | | |
| | | |
| | | | | | | | | | | T561-6 | finishes: WH, BL, SL | | | | | T5619 | accessories: | | | | | T5622 | Color Filters | T561-6 | | | | T5678 | Dichroic Color | | | | | T5677 | Correction Lens | T5619 | | | | T5621 | UV Filter | T5622 | | | | T569BL | Linear Spread Lens | T5678 | | | | | Prismatic Spread Lens | T5677 | | | | | Uniformity Lens | T5621 | | | | | Cube Cell Louver | T569BL | | | | | | | | | | |
| | | |
| | | |
| | | | | | | | | | | | MH2 ballasts | TM539 | | 2 3/8" | | | | | | be | _L | | | | | | | | | | | |
| | | |
| | | Both TM539 and TM570 are available in white, black or silver finishes. See page 39 for a full description. | | |
| | | - 8 7/8"- | | |
| | | |
| | | | | |
| | | |
| | | |
| | | -10 7/8"- | | |
| | | |
| | | juno | | |
| | | See pages 90 & 91 for complete accessory descriptions. | | Patent D395,140 | | |
| | | Trac-Master | | |
| | | 34 | | |
| | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
