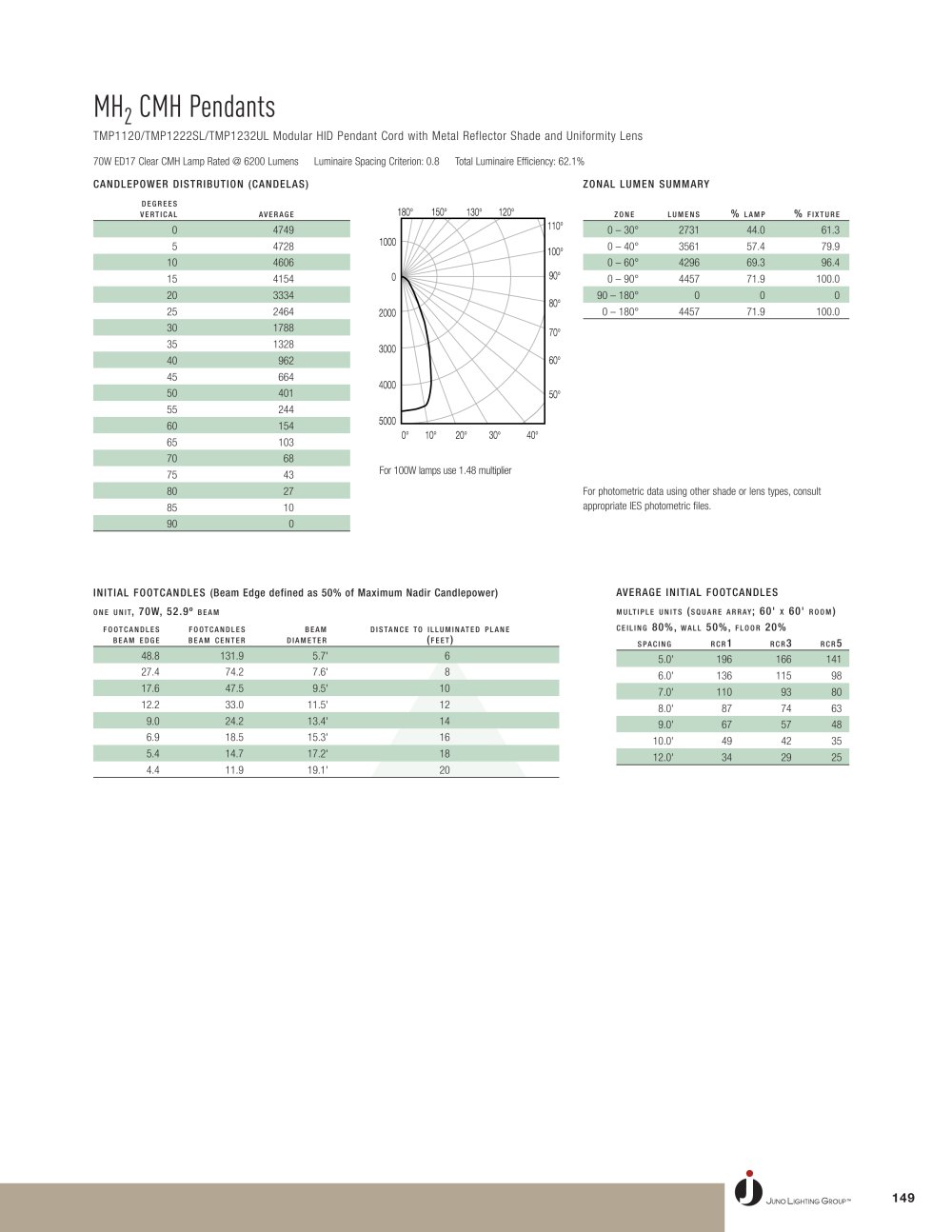

MH2 CMH Pendants
TMP1120/TMP1 222SL/TMP1232UL Modular HID Pendant Cord with Metal Reflector Shade and Uniformity Lens
70W ED17 Clear CMH Lamp Rated @ 6200 Lumens Luminaire Spacing Criterion: 0.8 CANDLEPOWER DISTRIBUTION (CANDELAS)
Total Luminaire Efficiency: 62.1%
ZONAL LUMEN SUMMARY
DEGREES VERTICAL
ZONE
LUMENS
% LAMP
% FIXTURE
110"
0 - 30°
2731
44.0
61.3
100°
0 - 40°
3561
57.4
79.9
0 - 60°
4296
69.3
96.4
90°
0 - 90°
4457
71.9
100.0
Qflo
90 - 180°
0
0
0
8U
0 - 180°
4457
71.9
100.0
AVERAGE
0
4749
5
4728
10
4606
15
4154
20
3334
25
2464
30
1788
35
1328
40
962
45
664
50
401
55
244
60
154
65
103
70
68
75
43
80
27
85
10
90
0
For 100W lamps use 1.48 multiplier
For photometric data using other shade or lens types, consult appropriate IES photometric files.
AVERAGE INITIAL FOOTCANDLES
INITIAL FOOTCANDLES (Beam Edge defined as 50% of Maximum Nadir Candlepower)
MULTIPLE UNITS (SQUARE ARRAY; 60' X 60' ROOM) CEILING 80%, WALL 50%, FLOOR 20%
SPACING RCR1 RCR3 RCR5
5.0'
196
166
141
6.0'
136
115
98
7.0'
110
93
80
8.0'
87
74
63
9.0'
67
57
48
10.0'
49
42
35
12.0'
34
29
25
FOOTCANDLES BEAM EDGE
FOOTCANDLES BEAM CENTER
BEAM DIAMETER
DISTANCE TO ILLUMINATED PLANE
(FEET)
48.8
131.9
5.7'
6
27.4
74.2
7.6'
8
17.6
47.5
9.5'
10
12.2
33.0
11.5'
12
9.0
24.2
13.4'
14
6.9
18.5
15.3'
16
5.4
14.7
17.2'
18
4.4
11.9
19.1'
20
149
