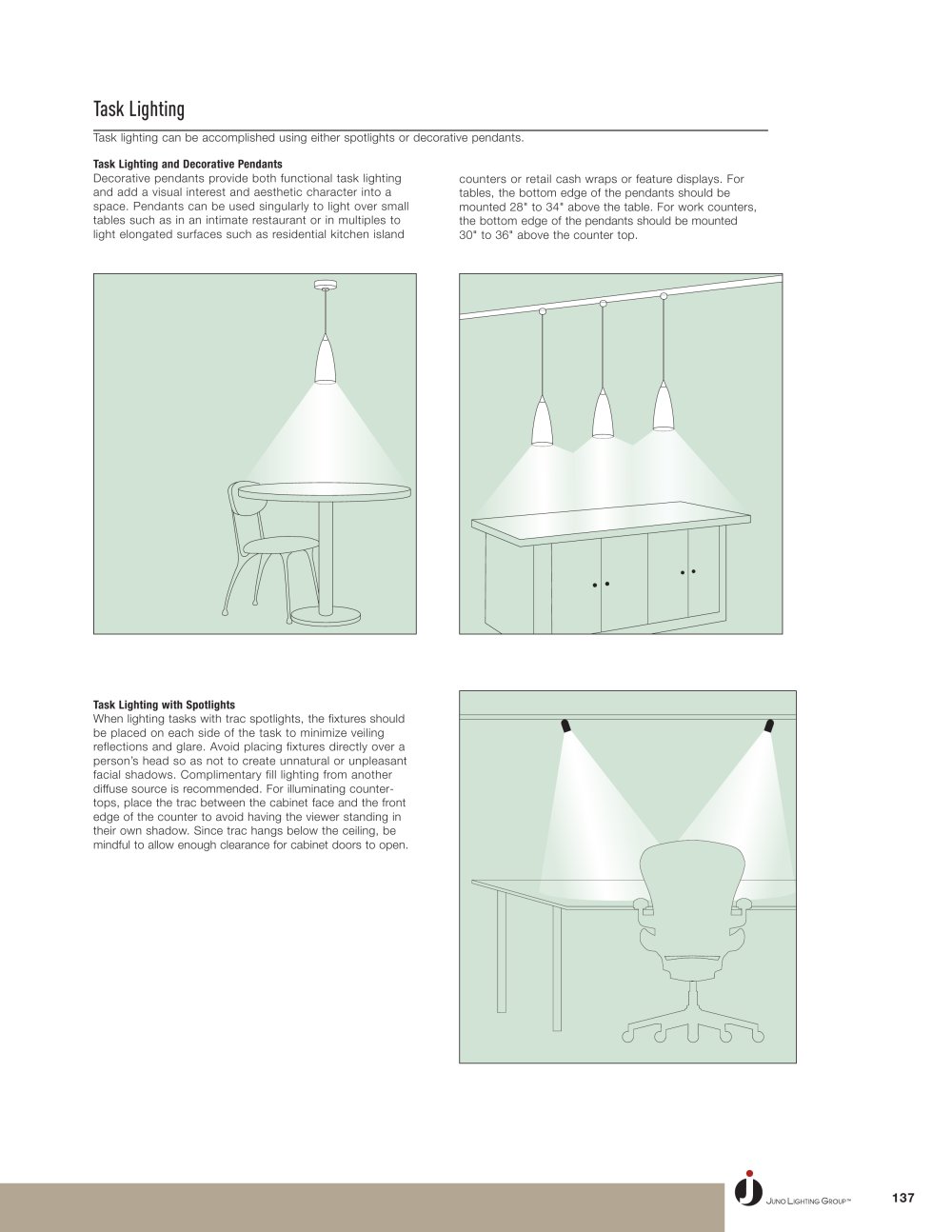

Task Lighting
Task lighting can be accomplished using either spotlights or decorative pendants.
Task Lighting and Decorative Pendants
Decorative pendants provide both functional task lighting and add a visual interest and aesthetic character into a space. Pendants can be used singularly to light over small tables such as in an intimate restaurant or in multiples to
light elongated surfaces such as residential kitchen island
counters or retail cash wraps or feature displays. For tables, the bottom edge of the pendants should be mounted 28" to 34" above the table. For work counters,
the bottom edge of the pendants should be mounted
30" to 36" above the counter top.
Task Lighting with Spotlights
When lighting tasks with trac spotlights, the fixtures should be placed on each side of the task to minimize veiling reflections and glare. Avoid placing fixtures directly over a person's head so as not to create unnatural or unpleasant facial shadows. Complimentary fill lighting from another diffuse source is recommended. For illuminating counter-
tops, place the trac between the cabinet face and the front edge of the counter to avoid having the viewer standing in
their own shadow. Since trac hangs below the ceiling, be
mindful to allow enough clearance for cabinet doors to open.
137
