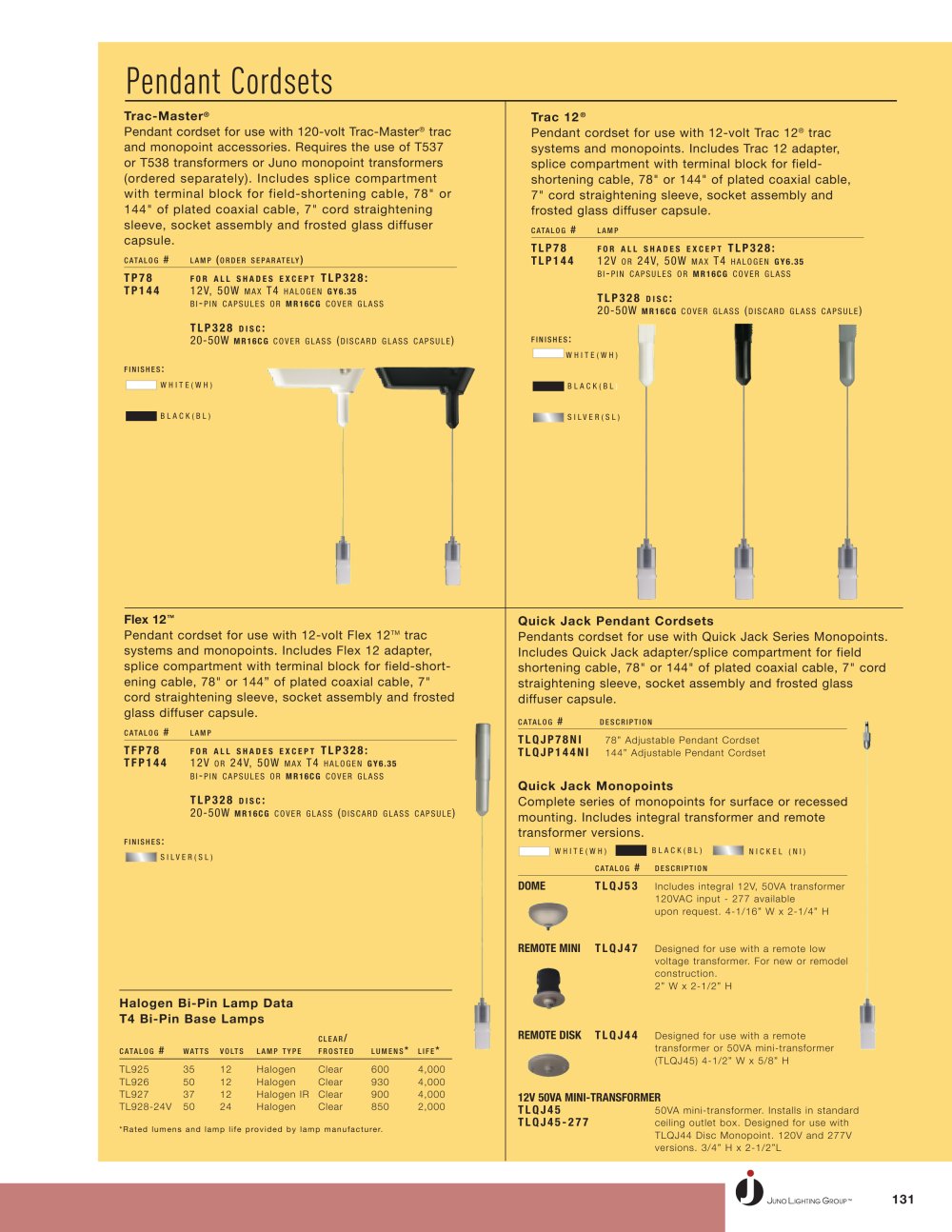

| | | Pendant Cordsets | | |
| | | |
| | | Trac-Master® Pendant cordset for use with 120-volt Trac-Master® trac and monopoint accessories. Requires the use of T537 or T538 transformers or Juno monopoint transformers (ordered separately). Includes splice compartment with terminal block for field-shortening cable, 78" or 144" of plated coaxial cable, 7" cord straightening sleeve, socket assembly and frosted glass diffuser capsule. catalog # lamp (order separately) TP78 for all shades except TLP328: TP144 12V, 50W max T4 halogen gy6.35 bi-pin capsules or mr16cg cover glass TLP328 disc: 20-50W mr16cg cover glass (discard glass capsule) | | |
| | | Trac 12® Pendant cordset for use with 12-volt Trac 12® trac systems and monopoints. Includes Trac 12 adapter, splice compartment with terminal block for field-shortening cable, 78" or 144" of plated coaxial cable, 7" cord straightening sleeve, socket assembly and frosted glass diffuser capsule. catalog # lamp TLP78 for all shades except TLP328: TLP144 12V or 24V, 50W max T4 halogen gy6.35 bi-pin capsules or mr16cg cover glass TLP328 disc: 20-50W mr16cg cover glass (discard glass capsule) | | |
| | | |
| | | finishes: | | |
| | | |
| | | |
| | | white(wh) | | |
| | | |
| | | fi ni shes: | | |
| | | |
| | | white(wh) | | I black(bl) | | |
| | | |
| | | |
| | | I black(bl) | | |
| | | silver(sl) | | |
| | | |
| | | |
| | | fi i fi | | |
| | | |
| | | Flex 12™ Pendant cordset for use with 12-volt Flex 12TM trac systems and monopoints. Includes Flex 12 adapter, splice compartment with terminal block for field-shortening cable, 78" or 144" of plated coaxial cable, 7" cord straightening sleeve, socket assembly and frosted glass diffuser capsule. catalog # lamp TFP78 for all shades except TLP328: TFP144 12V or 24V, 50W max T4 halogen gy6.35 bi-pin capsules or mr16cg cover glass TLP328 disc: 20-50W mr16cg cover glass (discard glass capsule) finishes: silver(sl) | | |
| | | Quick Jack Pendant Cordsets Pendants cordset for use with Quick Jack Series Monopoints. Includes Quick Jack adapter/splice compartment for field shortening cable, 78" or 144" of plated coaxial cable, 7" cord straightening sleeve, socket assembly and frosted glass diffuser capsule. | | |
| | | |
| | | catalog # TLQJP78NI TLQJP144NI | | description 78" Adjustable Pendant Cordset 144" Adjustable Pendant Cordset | | |
| | | |
| | | |
| | | Quick Jack Monopoints Complete series of monopoints for surface or recessed mounting. Includes integral transformer and remote transformer versions. | | |
| | | |
| | | |_| white(wh) black(bl) I | | nickel (ni) | | |
| | | | | |
| | | |
| | | |
| | | catalog # | | |
| | | descr pt on | | |
| | | |
| | | |
| | | DOME | | TLQJ53 | | |
| | | Includes integral 12V, 50VA transformer 120VAC input - 277 available upon request. 4-1/16" W x 2-1/4" H | | |
| | | |
| | | |
| | | |
| | | REMOTE MINI TLQJ47 | | |
| | | Designed for use with a remote low voltage transformer. For new or remodel construction. 2" W x 2-1/2" H | | |
| | | |
| | | t | | |
| | | É | | |
| | | |
| | | Halogen Bi-Pin Lamp Data T4 Bi-Pin Base Lamps | | |
| | | |
| | | |
| | | REMOTE DISK TLQJ44 | | |
| | | | | | | | | | | | | | | catalog # | watts | volts | lamp type | clear/ frosted | lumens* | l fe* | | | | TL925 | 35 | 12 | Halogen | Clear | 600 | 4,000 | | | | TL926 | 50 | 12 | Halogen | Clear | 930 | 4,000 | | | | TL927 | 37 | 12 | Halogen IR | Clear | 900 | 4,000 | | | | TL928-24V | 50 | 24 | Halogen | Clear | 850 | 2,000 | | | | | | | | | | | | | | | Designed for use with a remote transformer or 50VA mini-transformer (TLQJ45) 4-1/2" W x 5/8" H | | |
| | | |
| | | |
| | | |
| | | 12V 50VA MINI-TRANSFORMER | | |
| | | |
| | | TLQJ45 TLQJ45-277 | | |
| | | 50VA mini-transformer. Installs in standard ceiling outlet box. Designed for use with TLQJ44 Disc Monopoint. 120V and 277V versions. 3/4" H x 2-1/2"L | | |
| | | |
| | | | | |
| | | |
| | | |
| | | |
| | | 131 | | |
| | | Juno Lighting Group™ | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
