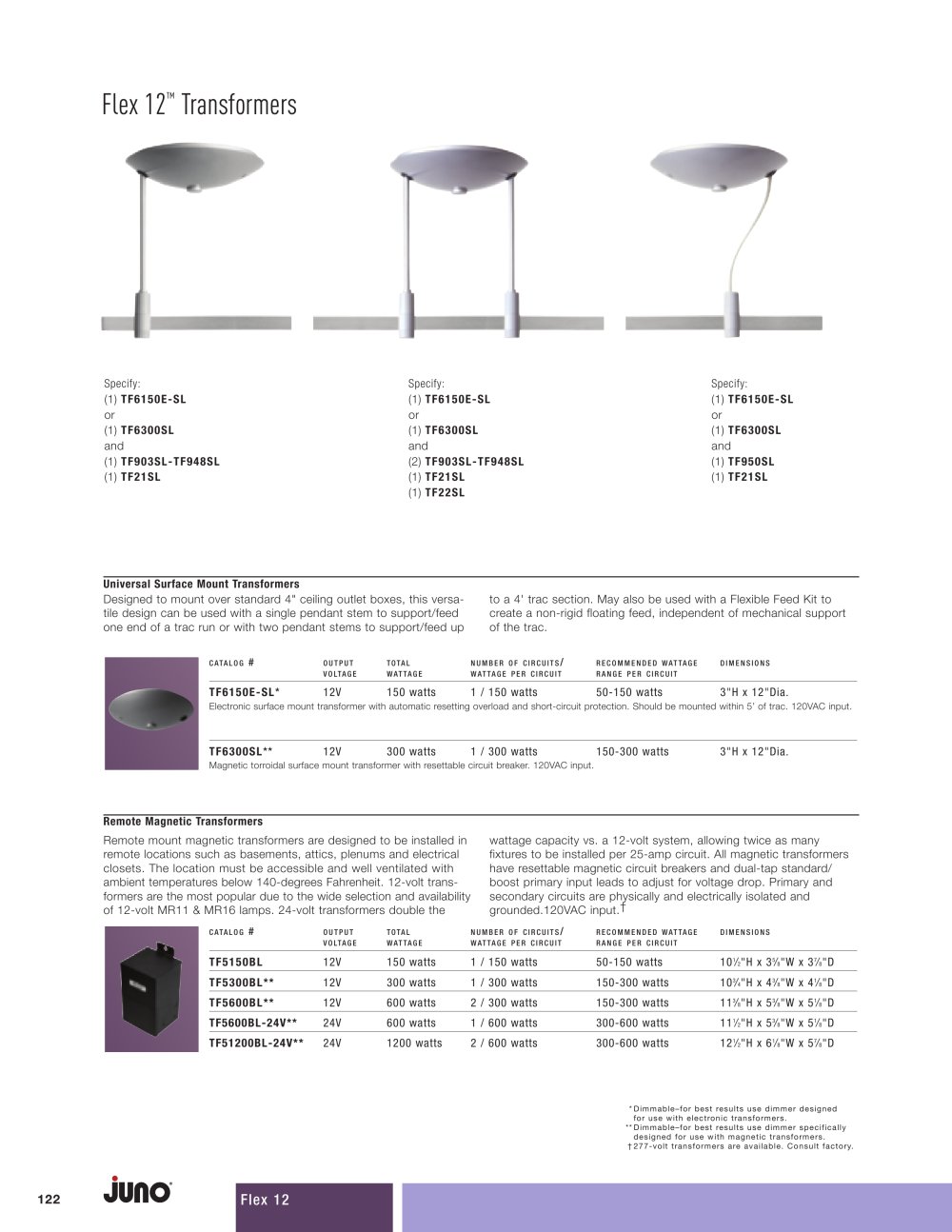

| | | Flex 12™ Transformers | | |
| | | |
| | | Specify: (1) TF6150E-SL or (1) TF6300SL and (1) TF903SL-TF948SL (1) TF21SL | | Specify: (1) TF6150E-SL or (1) TF6300SL and (2) TF903SL-TF948SL (1) TF21SL (1) TF22SL | | Specify: (1) TF6150E-SL or (1) TF6300SL and (1) TF950SL (1) TF21SL | | |
| | | | |
| | | |
| | | Universal Surface Mount Transformers Designed to mount over standard 4" ceiling outlet boxes, this versatile design can be used with a single pendant stem to support/feed one end of a trac run or with two pendant stems to support/feed up | | |
| | | to a 4' trac section. May also be used with a Flexible Feed Kit to create a non-rigid floating feed, independent of mechanical support of the trac. | | |
| | | |
| | | |
| | | catalog # | | number of circuits/ wattage per c rcu t | | |
| | | output voltage | | total wattage | | | recommended wattage range per circuit | | d mens ons | | |
| | | |
| | | |
| | | |
| | | TF6150E-SL* 12V 150 watts 1 / 150 watts 50-150 watts 3"H x 12"Dia. Electronic surface mount transformer with automatic resetting overload and short-circuit protection. Should be mounted within 5' of trac. 120VAC input. | | |
| | | |
| | | TF6300SL** 12V 300 watts 1 / 300 watts 150-300 watts Magnetic torroidal surface mount transformer with resettable circuit breaker. 120VAC input. | | 3"H x 12"Dia. | | |
| | | |
| | | |
| | | Remote Magnetic Transformers Remote mount magnetic transformers are designed to be installed in remote locations such as basements, attics, plenums and electrical closets. The location must be accessible and well ventilated with ambient temperatures below 140-degrees Fahrenheit. 12-volt transformers are the most popular due to the wide selection and availability of 12-volt MR11 & MR16 lamps. 24-volt transformers double the | | |
| | | wattage capacity vs. a 12-volt system, allowing twice as many fixtures to be installed per 25-amp circuit. All magnetic transformers have resettable magnetic circuit breakers and dual-tap standard/ boost primary input leads to adjust for voltage drop. Primary and secondary circuits are physically and electrically isolated and grounded.120VAC inputJ | | |
| | | |
| | | | | | | | | | | | | | catalog # | output voltage | total wattage | number of circuits/ wattage per circuit | recommended wattage range per circuit | dimensions | | | | TF5150BL | 12V | 150 watts | 1 / 150 watts | 50-150 watts | 10/2"H x 35/b"W x 37/b"D | | | | TF5300BL** | 12V | 300 watts | 1 / 300 watts | 150-300 watts | 103/4"H x 43/b"W x 4/b"D | | | | TF5600BL** | 12V | 600 watts | 2 / 300 watts | 150-300 watts | 11 3/b"H x 53/b"W x 5/b"D | | | | TF5600BL-24V** | 24V | 600 watts | 1 / 600 watts | 300-600 watts | 11y2"H x 53/b"W x 5/b"D | | | | TF51200BL-24V** | 24V | 1200 watts | 2 / 600 watts | 300-600 watts | 12y2"H x 6/b"W x 57/b"D | | | | | | | | | | | | | |
| | | |
| | | *Dimmable-for best results use dimmer designed for use with electronic transformers. **Dimmable-for best results use dimmer specifically designed for use with magnetic transformers. t277-volt transformers are available. Consult factory. | | |
| | | |
| | | Flex 12 | | |
| | | 122 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
