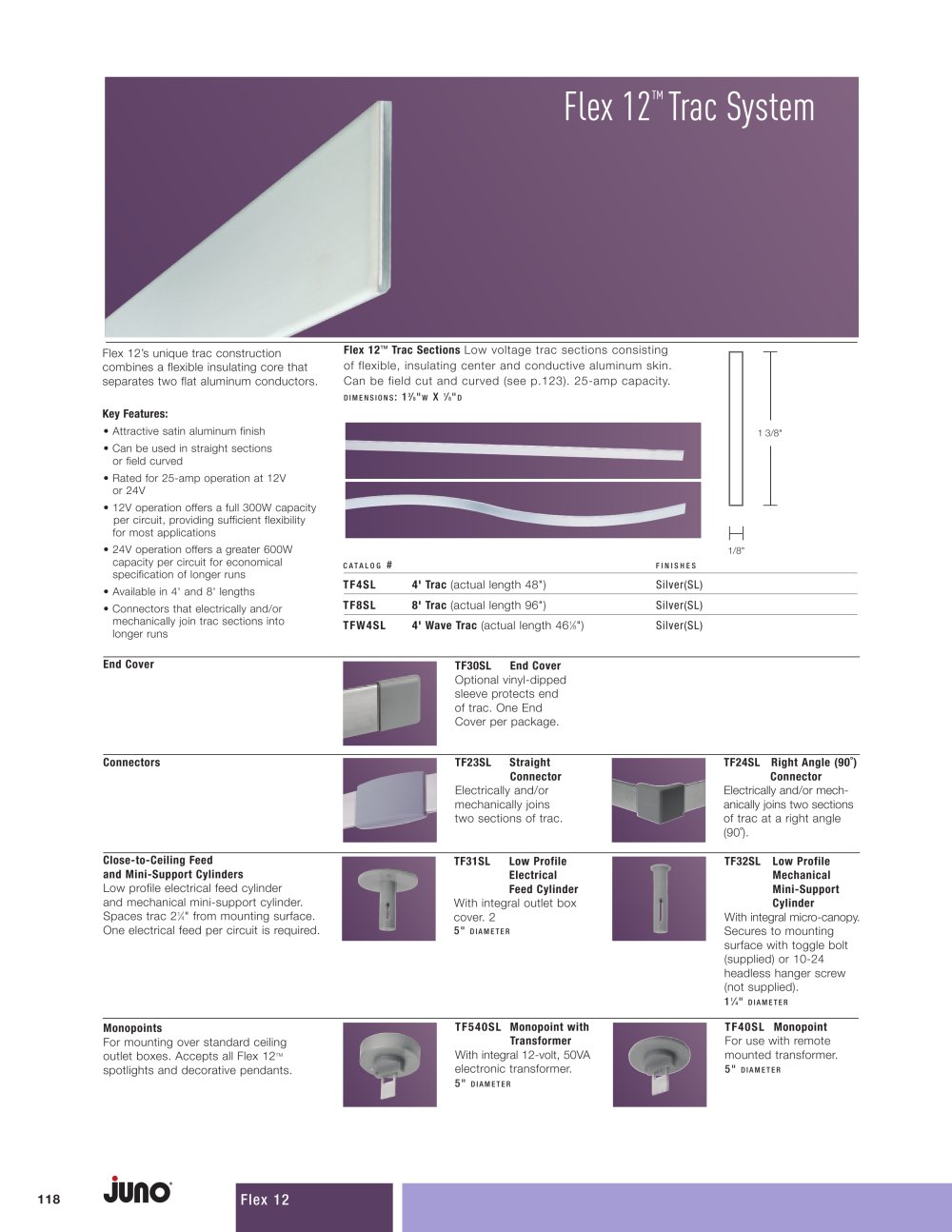

Flex 12™Trac System

Flex 12^TM Trac Sections Low voltage trac sections consisting of flexible, insulating center and conductive aluminum skin. Can be field cut and curved (see p.123). 25-amp capacity. dimensionsMWw X '/₈"d

Flex 12's unique trac construction combines a flexible insulating core that separates two flat aluminum conductors.

Key Features:

• Attractive satin aluminum finish

• Can be used in straight sections or field curved

• Rated for 25-amp operation at 12V or 24V

• 12V operation offers a full 300W capacity per circuit, providing sufficient flexibility

for most applications

• 24V operation offers a greater 600W

capacity per circuit for economical specification of longer runs

• Available in 4' and 8' lengths

• Connectors that electrically and/or mechanically join trac sections into

longer runs

1 3/8'

1/8'


catalog #		finishes
TF4SL	4' Trac (actual length 48")	Silver(SL)
TF8SL	8' Trac (actual length 96")	Silver(SL)
TFW4SL	4' Wave Trac (actual length 46¹/8")	Silver(SL)

End Cover

TF30SL End Cover

Optional vinyl-dipped sleeve protects end of trac. One End Cover per package.

TF24SL Right Angle (90°)

Connector

Electrically and/or mechanically joins two sections of trac at a right angle

(90°).

Connectors

TF23SL Straight Connector

Electrically and/or

mechanically joins

two sections of trac.

Close-to-Ceiling Feed

and Mini-Support Cylinders

Low profile electrical feed cylinder and mechanical mini-support cylinder Spaces trac 2¹/i" from mounting surface. One electrical feed per circuit is required.

TF31SL Low Profile Electrical Feed Cylinder

With integral outlet box

cover. 2

5" diameter

TF32SL Low Profile

Mechanical Mini-Support

Cylinder

With integral micro-canopy. Secures to mounting

surface with toggle bolt (supplied) or 10-24 headless hanger screw

(not supplied).

1%" diameter

TF540SL Monopoint with Transformer

With Integral 12-volt, 50VA electronic transformer.

5" diameter

TF40SL Monopoint

For use with remote mounted transformer.

5" diameter

Monopoints

For mounting over standard ceiling

outlet boxes. Accepts all Flex 12^TMspotlights and decorative pendants.

Flex 12
