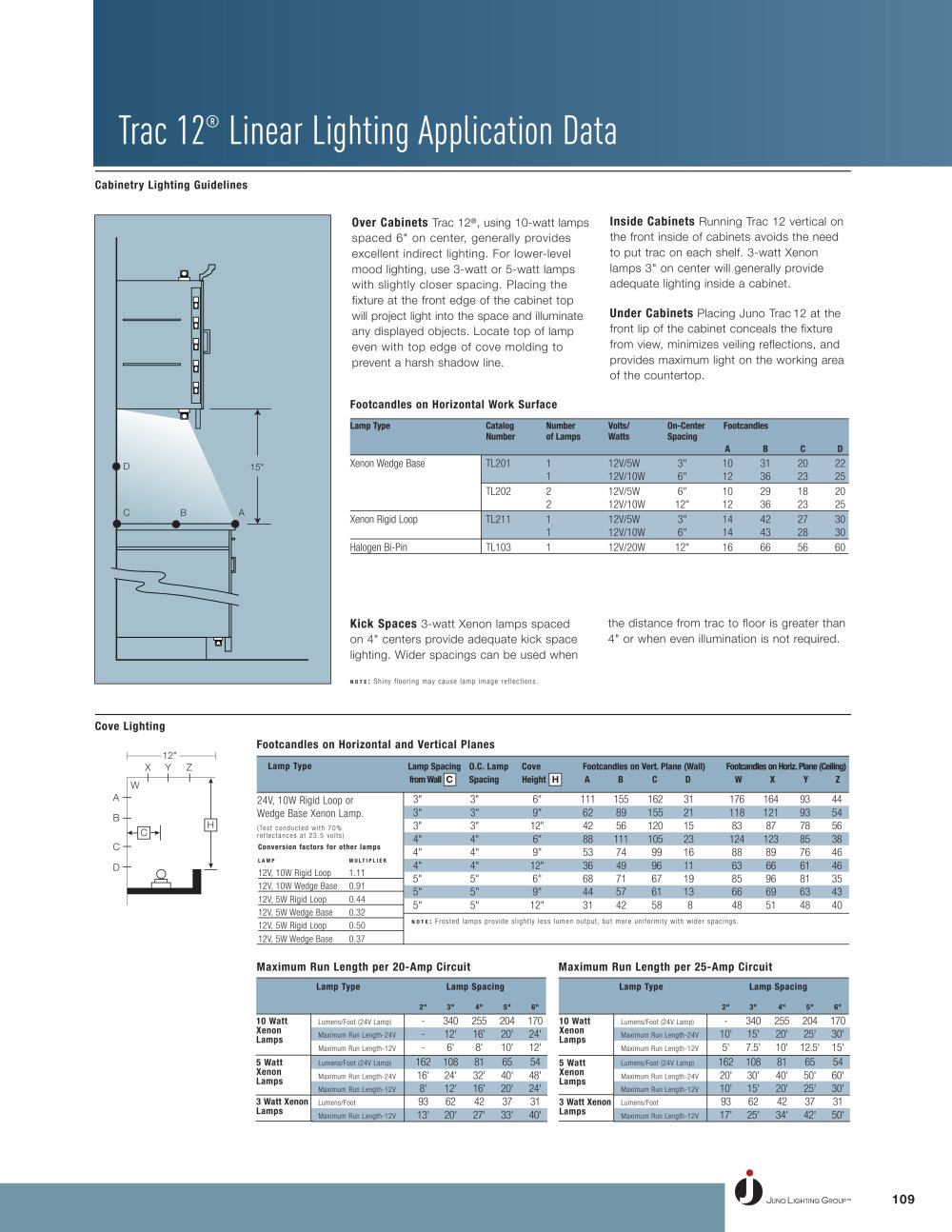

Cabinetry Lighting Guidelines

Inside Cabinets Running Trac 12 vertical on

the front inside of cabinets avoids the need to put trac on each shelf. 3-watt Xenon lamps 3" on center will generally provide adequate lighting inside a cabinet.

Under Cabinets Placing Juno Trac 12 at the

front lip of the cabinet conceals the fixture from view, minimizes veiling reflections, and provides maximum light on the working area of the countertop.

Over Cabinets Trac 12®, using 10-watt lamps spaced 6" on center, generally provides excellent indirect lighting. For lower-level mood lighting, use 3-watt or 5-watt lamps

with slightly closer spacing. Placing the fixture at the front edge of the cabinet top will project light into the space and illuminate any displayed objects. Locate top of lamp even with top edge of cove molding to prevent a harsh shadow line.

Footcandles on Horizontal Work Surface


Lamp Type	Catalog	Number	Volts/	On-Center	Footcandles
	Number	of Lamps	Watts	Spacing
					AB C D
Xenon Wedge Base	TL201	1	12V/5W	3"	10	31	20 22
		1	12V/10W	6"	12	36	23 25
	TL202	2	12V/5W	6"	10	29	18 20
		2	12V/10W	12"	12	36	23 25
Xenon Rigid Loop	TL211	1	12V/5W	3"	14	42	27 30
		1	12V/10W	6"	14	43	28 30
Halogen Bi-Pin	TL103	1	12V/20W	12"	16	66	56 60

Kick Spaces 3-watt Xenon lamps spaced on 4" centers provide adequate kick space

lighting. Wider spacings can be used when

note: Shiny flooring may cause lamp image reflections

the distance from trac to floor is greater than 4" or when even illumination is not required.

Cove Lighting

Footcandles on Horizontal and Vertical Planes

12"-

Y Z —I-\-


Lamp Type	Lamp Spacing	O.C. Lamp	Cove	Footcandles on Vert. Plane (Wall)	Footcandles on Horiz. Plane (Ceiling)
	from wallfç]	Spacing	Height [ÏÏ]	ABCD	W X Y Z

6" 9" 12" 6" 9" 12" 6" 9" 12"

111

62 42 88 53 36 68 44

155 89 56 111 74 49 71 57

162 155 120 105 99 96 67 61 58

31 21 15 23 16 11 19 13 8

176 118 83 124 88 63 85 66 48

164 121

87 123 89 66 96 69 51

93 93 78 85 76 61 81 63 48

44 54 56 38 46 46 35 43 40

24V, 10W Rigid Loop or Wedge Base Xenon Lamp.

(Test conducted with 70% ■eflectances at 23.5 volts;

*~LC}*|


	Conversion factors for other lamps
	lamp	multiplier
	12V, 10W Rigid Loop	1.11
	12V, 10W Wedge Base	0.91
	12V, 5W Rigid Loop	0.44
	12V, 5W Wedge Base	0.32
	12V, 5W Rigid Loop	0.50

note: Frosted lamps provide slightly less lumen output, but more uniformity with wider spacings

12V, 5W Wedge Base 0.37

Maximum Run Length per 20-Amp Circuit

Maximum Run Length per 25-Amp Circuit

Lamp Type

Lamp Spacing

Lamp Type

Lamp Spacing

10 Watt Xenon

Lamps

Lumens/Foot (24V Lamp)

340

255

204

170

10 Watt

Xenon

Lamps

Lumens/Foot (24V Lamp)

340

255

204

170

Maximum Run Length-24V

12'

16'

20'

24'

Maximum Run Length-24V

10'

15'

20'

25'

30'

Maximum Run Length-12V

10'

12'

Maximum Run Length-12V

7.5'

10'

12.5'

15'

5 Watt

Lumens/Foot (24V Lamp)

162

108

5 Watt

Lumens/Foot (24V Lamp)

162

108

Xenon

Lamps

Maximum Run Length-24V

16'

24'

32'

40'

48'

Xenon Lamps

Maximum Run Length-24V

20'

30'

40'

50'

60'

Maximum Run Length-12V

12'

16'

20'

24'

Maximum Run Length-12V

10'

15'

20'

25'

30'

3 Watt Xenon

Lumens/Foot

3 Watt Xenon

Lumens/Foot

Lamps

Maximum Run Length-12V

13'

20'

27'

33'

40'

Lamps

Maximum Run Length-12V

17'

25'

34'

42'

50'
