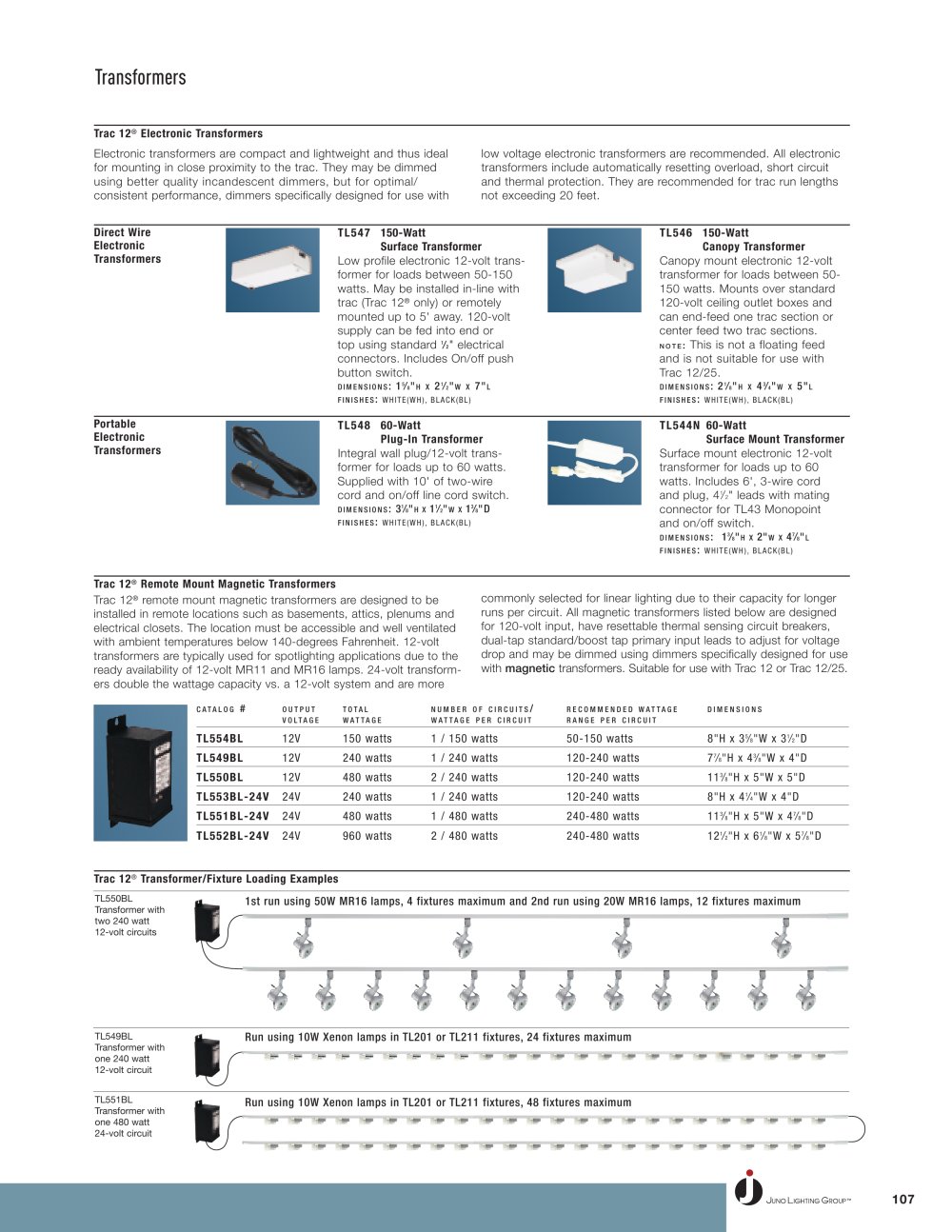

| | | Transformers | | |
| | | |
| | | Trac 12® Electronic Transformers Electronic transformers are compact and lightweight and thus ideal for mounting in close proximity to the trac. They may be dimmed using better quality incandescent dimmers, but for optimal/ consistent performance, dimmers specifically designed for use with | | |
| | | low voltage electronic transformers are recommended. All electronic transformers include automatically resetting overload, short circuit and thermal protection. They are recommended for trac run lengths not exceeding 20 feet. | | |
| | | |
| | | Direct Wire Electronic Transformers | | |
| | | TL547 150-Watt Surface Transformer Low profile electronic 12-volt transformer for loads between 50-150 watts. May be installed in-line with trac (Trac 12® only) or remotely mounted up to 5' away. 120-volt supply can be fed into end or top using standard '/2" electrical connectors. Includes On/off push button switch. dimensions:15/8"hx 2l/,,»i 7"L finishes: white(WH), black(BL) | | TL546 150-Watt Canopy Transformer Canopy mount electronic 12-volt transformer for loads between 50150 watts. Mounts over standard 120-volt ceiling outlet boxes and can end-feed one trac section or center feed two trac sections. note: This is not a floating feed and is not suitable for use with Trac 12/25. DIMENSIONS:2'/8"HX 43/4"WX 5"L finishes: white(WH), black(BL) | | |
| | | |
| | | |
| | | Portable Electronic Transformers | | |
| | | TL548 60-Watt Plug-In Transformer Integral wall plug/12-volt transformer for loads up to 60 watts. Supplied with 10' of two-wire cord and on/off line cord switch. dimensions:3'/8"hx 1'/2"wx 1%"D finishes: white(WH), black(BL) | | TL544N 60-Watt Surface Mount Transformer Surface mount electronic 12-volt transformer for loads up to 60 watts. Includes 6', 3-wire cord and plug, 41/2" leads with mating connector for TL43 Monopoint and on/off switch. dimensions:13/8"hx2"wx47/8"l finishes: white(WH), black(BL) | | |
| | | |
| | | |
| | | |
| | | Trac 12® Remote Mount Magnetic Transformers Trac 12® remote mount magnetic transformers are designed to be installed in remote locations such as basements, attics, plenums and electrical closets. The location must be accessible and well ventilated with ambient temperatures below 140-degrees Fahrenheit. 12-volt transformers are typically used for spotlighting applications due to the ready availability of 12-volt MR11 and MR16 lamps. 24-volt transformers double the wattage capacity vs. a 12-volt system and are more | | |
| | | commonly selected for linear lighting due to their capacity for longer runs per circuit. All magnetic transformers listed below are designed for 120-volt input, have resettable thermal sensing circuit breakers, dual-tap standard/boost tap primary input leads to adjust for voltage drop and may be dimmed using dimmers specifically designed for use with magnetic transformers. Suitable for use with Trac 12 or Trac 12/25. | | |
| | | |
| | | |
| | | | | | | | | | | | | | catalog # | output voltage | total wattage | number of circuits/ wattage per circuit | recommended wattage range per circuit | dimensions | | | | TL554BL | 12V | 150 watts | 1 / 150 watts | 50-150 watts | 8"H x 3%"W x 3V2"D | | | | TL549BL | 12V | 240 watts | 1 / 240 watts | 120-240 watts | 77/8"H x 43/8"W x 4"D | | | | TL550BL | 12V | 480 watts | 2 / 240 watts | 120-240 watts | 113/8"H x 5"W x 5"D | | | | TL553BL-24V | 24V | 240 watts | 1 / 240 watts | 120-240 watts | 8"H x 41/4"W x 4"D | | | | TL551BL-24V | 24V | 480 watts | 1 / 480 watts | 240-480 watts | 113/8"H x 5"W x 47/8"D | | | | TL552BL-24V | 24V | 960 watts | 2 / 480 watts | 240-480 watts | 12/2"H x 6/8"W x 57/8"D | | | | | | | | | | | | | |
| | | |
| | | Trac 12® Transformer/Fixture Loading Examples | | |
| | | |
| | | TL550BL Transformer with two 240 watt 12-volt circuits | | |
| | | y 1st run using 50W MR16 lamps, 4 fixtures maximum and 2nd run using 20W MR16 lamps, 12 fixtures maximum ^ 4 4 4 4~ ^44444444444 | | |
| | | |
| | | |
| | | TL549BL Transformer with one 240 watt 12-volt circuit | | Run using 10W Xenon lamps in TL201 or TL211 fixtures, 24 fixtures maximum | | |
| | | |
| | | |
| | | TL551BL Transformer with one 480 watt 24-volt circuit | | |
| | | Run using 10W Xenon lamps in TL201 or TL211 fixtures, 48 fixtures maximum | | |
| | | |
| | | |
| | | Juno Lighting Group- 107 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
