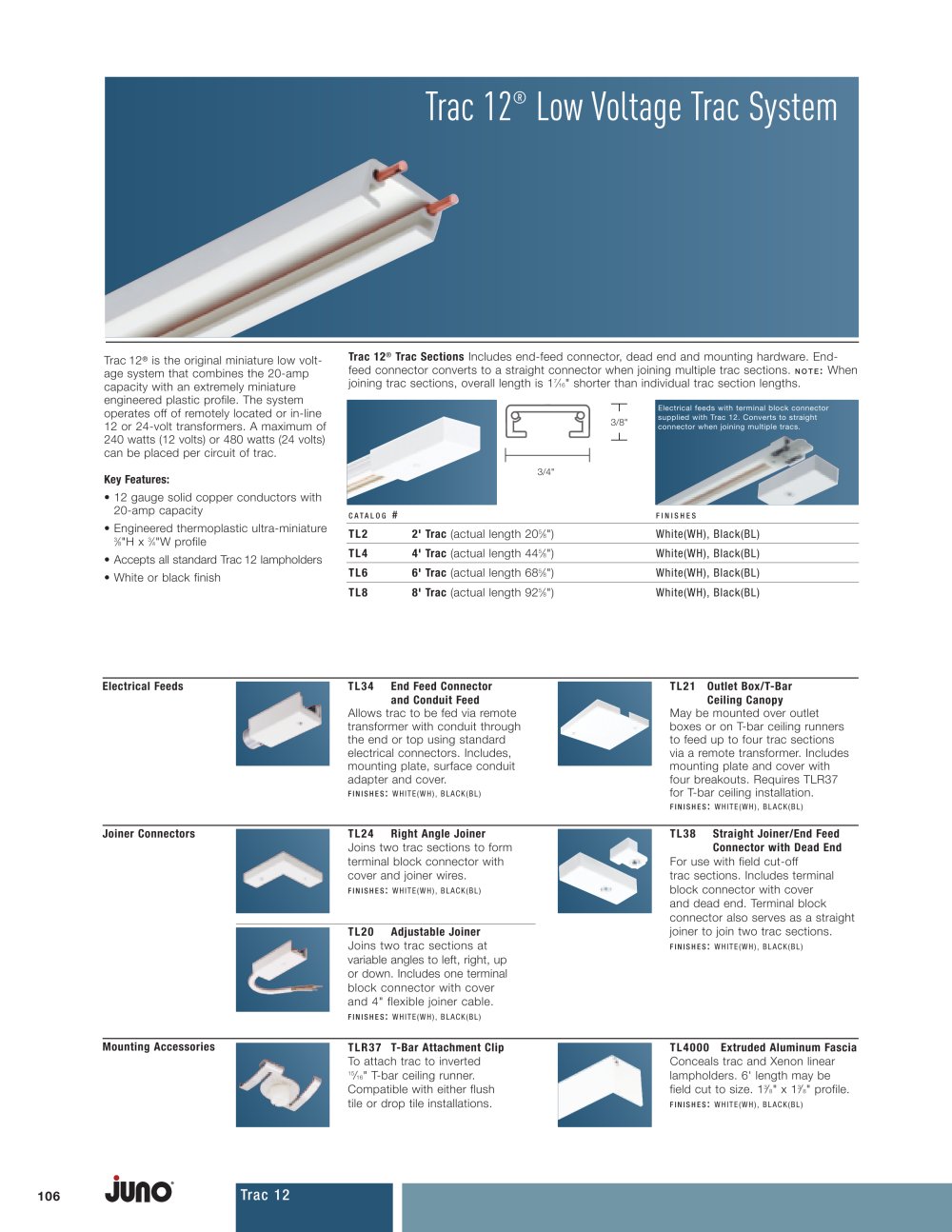

| | | Trac 12® Low Voltage Trac System ir | | |
| | | |
| | | Trac 12® Trac Sections Includes end-feed connector, dead end and mounting hardware. End-feed connector converts to a straight connector when joining multiple trac sections. note: When joining trac sections, overall length is 1'/6" shorter than individual trac section lengths. | | |
| | | Trac 12® is the original miniature low voltage system that combines the 20-amp capacity with an extremely miniature engineered plastic profile. The system operates off of remotely located or in-line 12 or 24-volt transformers. A maximum of 240 watts (12 volts) or 480 watts (24 volts) can be placed per circuit of trac. Key Features: • 12 gauge solid copper conductors with 20-amp capacity • Engineered thermoplastic ultra-miniature 3/8"H x 3/4MW profile • Accepts all standard Trac 12 lampholders • White or black finish | | |
| | | |
| | | 3/8" | | |
| | | |
| | | catalog # | | |
| | | finishes | | |
| | | |
| | | | | | | | | | | TL2 | 2' Trac (actual length 206/8") | White(WH), Black(BL) | | | | TL4 | 4' Trac (actual length 446/8") | White(WH), Black(BL) | | | | TL6 | 6' Trac (actual length 686/8") | White(WH), Black(BL) | | | | | | | | | | |
| | | |
| | | |
| | | TL8 | | 8' Trac (actual length 926/8") | | White(WH), Black(BL) | | |
| | | |
| | | |
| | | |
| | | TL34 End Feed Connector and Conduit Feed Allows trac to be fed via remote transformer with conduit through the end or top using standard electrical connectors. Includes, mounting plate, surface conduit adapter and cover. finishes: white(WH), black(BL) | | TL21 Outlet Box/T-Bar Ceiling Canopy May be mounted over outlet boxes or on T-bar ceiling runners to feed up to four trac sections via a remote transformer. Includes mounting plate and cover with four breakouts. Requires TLR/7 for T-bar ceiling installation. finishes: white(WH), black(BL) | | |
| | | Electrical Feeds | | |
| | | |
| | | |
| | | |
| | | Joiner Connectors | | TL24 Right Angle Joiner Joins two trac sections to form terminal block connector with cover and joiner wires. fi ni shes: white(wh), black(bl) | | TL38 Straight Joiner/End Feed Connector with Dead End For use with field cut-off trac sections. Includes terminal block connector with cover and dead end. Terminal block connector also serves as a straight joiner to join two trac sections. fi ni shes: white(wh), black(bl) | | |
| | | |
| | | |
| | | TL20 Adjustable Joiner Joins two trac sections at variable angles to left, right, up or down. Includes one terminal block connector with cover and 4" flexible joiner cable. fi ni shes: white(wh), black(bl) | | |
| | | |
| | | |
| | | Mounting Accessories | | |
| | | TLR37 T-Bar Attachment Clip To attach trac to inverted ,6/i6M T-bar ceiling runner. Compatible with either flush tile or drop tile installations. | | TL4000 Extruded Aluminum Fascia Conceals trac and Xenon linear lampholders. 6' length may be field cut to size. W x W profile. fi ni shes: white(wh), black(bl) | | |
| | | |
| | | |
| | | |
| | | Trac 12 | | |
| | | 106 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
