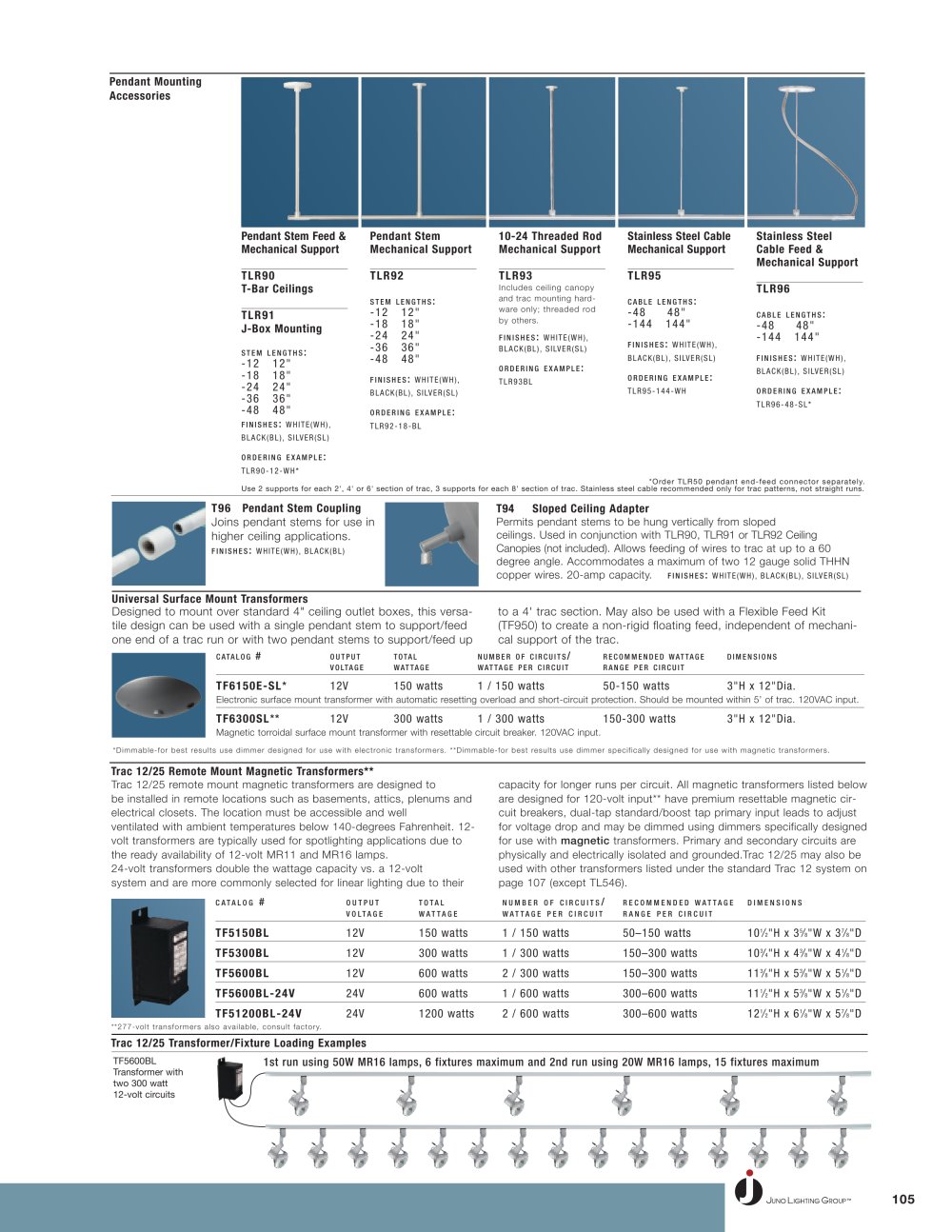

| | | Pendant Mounting Accessories | | |
| | | |
| | | Pendant Stem Feed & Mechanical Support | | Pendant Stem Mechanical Support | | 10-24 Threaded Rod Mechanical Support | | Stainless Steel Cable Mechanical Support | | Stainless Steel Cable Feed & Mechanical Support | | |
| | | |
| | | |
| | | TLR90 | | TLR92 stem lengths: -12 12" -18 18" -24 24" -36 36" -48 48" finishes: white(WH). black(bl), silver(sl) ordering example: TLR92-18-BL | | TLR93 Includes celling canopy and trac mounting hardware only; threaded rod by others. finishes: white(WH). black(bl), silver(sl) ordering example: TLR93BL | | TLR95 cable lengths: -48 48" -144 144" fi ni shes: white(WH). black(bl), silver(sl) orderi ng example: tlr95-144-wh | | |
| | | TLR96 cable lengths: -48 48" -144 144" fi ni shes: white(WH). black(bl), silver(sl) orderi ng example: tlr96-48-sl* | | |
| | | |
| | | TLR91 J-Box Mounting stem lengths: -12 12" -18 18" -24 24" | | |
| | | |
| | | |
| | | -36 36" -48 48" fi ni shes: white(WH).
| | | |
| | | |
| | | |
| | | black(bl), silver(sl) orderi ng example: tlr90-12-wh* •Order TLR50 pendant end-feed connector separately Use 2 supports for each 2', 4' or 6' section of trac, 3 supports for each 8' section of trac. Stainless steel cable recommended only for trac patterns, not straight runs. | | |
| | | |
| | | T96 Pendant Stem Coupling Joins pendant stems for use in higher ceiling applications. fi ni shes: white(WH), black(bl) | | |
| | | T94 Sloped Ceiling Adapter Permits pendant stems to be hung vertically from sloped ceilings. Used in conjunction with TLR90, TLR91 or TLR92 Ceiling Canopies (not included). Allows feeding of wires to trac at up to a 60 degree angle. Accommodates a maximum of two 12 gauge solid THHN copper wires. 20-amp capacity. fi ni shes: white(WH), black(BL), silver(SL) | | |
| | | |
| | | |
| | | Universal Surface Mount Transformers Designed to mount over standard 4" ceiling outlet boxes, this versatile design can be used with a single pendant stem to support/feed one end of a trac run or with two pendant stems to support/feed up | | |
| | | to a 4' trac section. May also be used with a Flexible Feed Kit (TF950) to create a non-rigid floating feed, independent of mechanical support of the trac. number of ci rcui ts/ recommended wattage di mensi ons wattage per ci rcui t range per ci rcui t | | |
| | | |
| | | catalog # | | |
| | | output voltage | | total wattage | | |
| | | |
| | | |
| | | TF6150E-SL* 12V 150 watts 1 / 150 watts 50-150 watts 3"H x 12"Dia. Electronic surface mount transformer with automatic resetting overload and short-circuit protection. Should be mounted within 5' of trac. 120VAC input. TF6300SL** 12V 300 watts 1 / 300 watts 150-300 watts 3"H x 12"Dia. Magnetic torroidal surface mount transformer with resettable circuit breaker. 120VAC input. •Dimmable-for best results use dimmer designed for use with electronic transformers. **Dimmable-for best results use dimmer specifically designed for use with magnetic transformers | | |
| | | |
| | | Trac 12/25 Remote Mount Magnetic Transformers** Trac 12/25 remote mount magnetic transformers are designed to be installed in remote locations such as basements, attics, plenums and electrical closets. The location must be accessible and well ventilated with ambient temperatures below 140-degrees Fahrenheit. 12- volt transformers are typically used for spotlighting applications due to the ready availability of 12-volt MR11 and MR16 lamps. 24-volt transformers double the wattage capacity vs. a 12-volt system and are more commonly selected for linear lighting due to their | | |
| | | capacity for longer runs per circuit. All magnetic transformers listed below are designed for 120-volt input** have premium resettable magnetic circuit breakers, dual-tap standard/boost tap primary input leads to adjust for voltage drop and may be dimmed using dimmers specifically designed for use with magnetic transformers. Primary and secondary circuits are physically and electrically isolated and grounded.Trac 12/25 may also be used with other transformers listed under the standard Trac 12 system on page 107 (except TL546). | | |
| | | |
| | | | | | | | | | | | | | catalog # | output voltage | total wattage | number of circuits/ wattage per c rcu t | recommended wattage range per c rcu t | dimensions | | | | TF5150BL | 12V | 150 watts | 1 / 150 watts | 50-150 watts | 10y2MH x 35/b"W x 37/b"D | | | | TF5300BL | 12V | 300 watts | 1 / 300 watts | 150-300 watts | 103/4"H x 43/b"W x 4/b"D | | | | TF5600BL | 12V | 600 watts | 2 / 300 watts | 150-300 watts | 11 3/b"H x 53/b"W x 5/b"D | | | | TF5600BL-24V | 24V | 600 watts | 1 / 600 watts | 300-600 watts | 11/2"H x 53/b"W x 5/b"D | | | | TF51200BL-24V | 24V | 1200 watts | 2 / 600 watts | 300-600 watts | 12/2"H x 6/b"W x 57/b"D | | | | | | | | | | | | | |
| | | |
| | | "277-volt transformers also available, consult factory | | |
| | | |
| | | Trac 12/25 Transformer/Fixture Loading Examples | | |
| | | |
| | | TF5600BL 1st run using 50W MR16 lamps, 6 fixtures maximum and 2nd run using 20W MR16 lamps, 15 fixtures maximum Transformer with _ _ _ _ | | |
| | | |
| | | two 300 watt HJ I 12-volt circuits | | i 4 i 4 4 ■ ¿ k ¿ ¿ ¿ | | |
| | | |
| | | |
| | | 'Juno Lighting Group- 105 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
