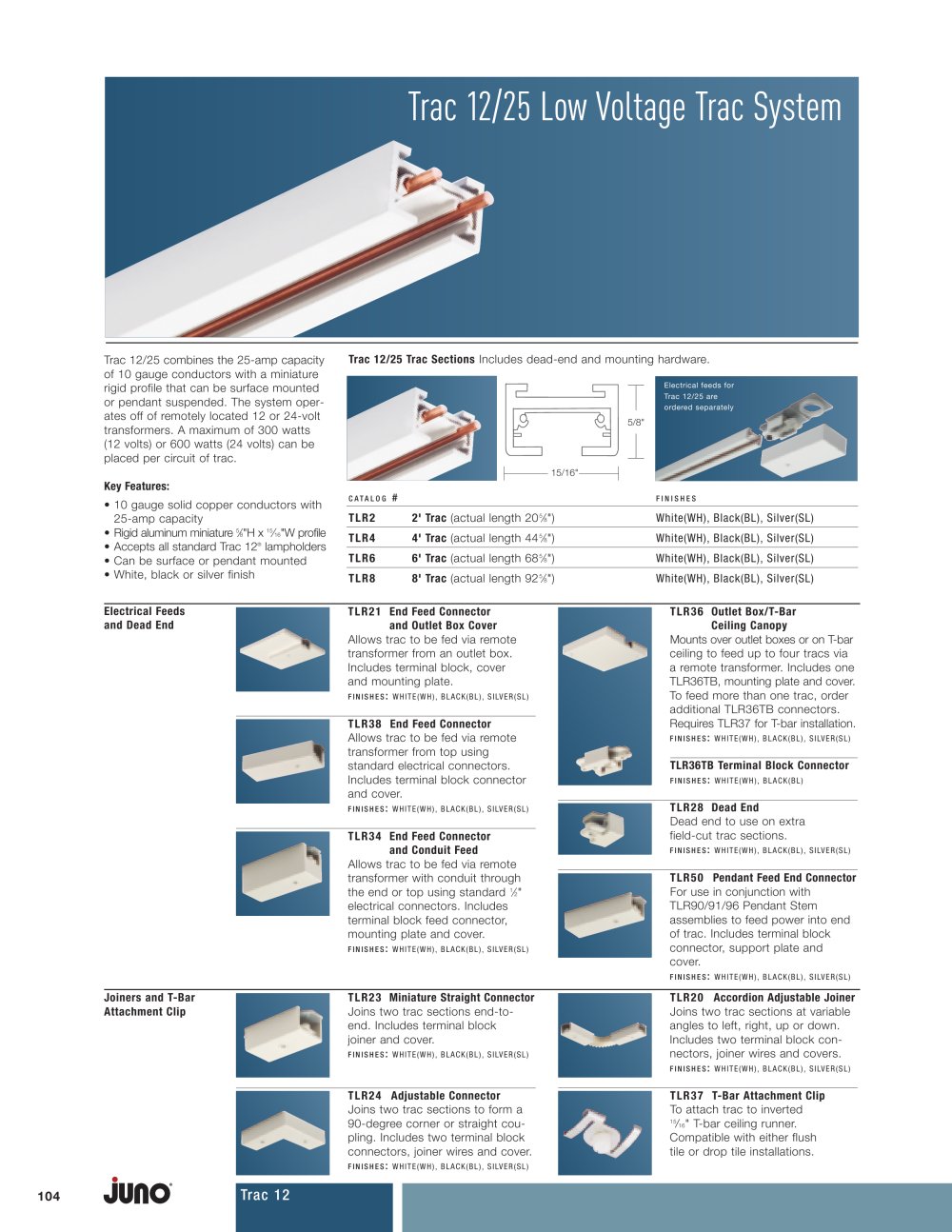

| | | Trac 12/25 Trac Sections Includes dead-end and mounting hardware. | | |
| | | Trac 12/25 combines the 25-amp capacity of 10 gauge conductors with a miniature rigid profile that can be surface mounted or pendant suspended. The system operates off of remotely located 12 or 24-volt transformers. A maximum of 300 watts (12 volts) or 600 watts (24 volts) can be placed per circuit of trac. Key Features: • 10 gauge solid copper conductors with 25-amp capacity • Rigid aluminum miniature TH x 15/16MW profile • Accepts all standard Trac 12* lampholders • Can be surface or pendant mounted • White, black or silver finish | | |
| | | |
| | | catalog # | | |
| | | finishes | | |
| | | |
| | | | | | | | | | | TLR2 | 2' Trac (actual length 20%") | White(WH), Black(BL), Silver(SL) | | | | TLR4 | 4' Trac (actual length 44%") | White(WH), Black(BL), Silver(SL) | | | | TLR6 | 6' Trac (actual length 68%") | White(WH), Black(BL), Silver(SL) | | | | | | | | | | |
| | | |
| | | TLR8 | | 8' Trac (actual length 92%") | | White(WH), Black(BL), Silver(SL) | | |
| | | |
| | | |
| | | |
| | | |
| | | Electrical Feeds and Dead End | | |
| | | TLR21 End Feed Connector and Outlet Box Cover Allows trac to be fed via remote transformer from an outlet box. Includes terminal block, cover and mounting plate. finishes: white(wh), black(bl), silver(sl) | | TLR36 Outlet Box/T-Bar Ceiling Canopy Mounts over outlet boxes or on T-bar ceiling to feed up to four tracs via a remote transformer. Includes one TLR36TB, mounting plate and cover. To feed more than one trac, order additional TLR36TB connectors. Requires TLR37 for T-bar installation. finishes: white(wh), black(bl), silver(sl) TLR36TB Terminal Block Connector finishes: wh te(wh), black(bl) | | |
| | | |
| | | |
| | | TLR38 End Feed Connector Allows trac to be fed via remote transformer from top using standard electrical connectors. Includes terminal block connector and cover. finishes: white(wh), black(bl), silver(sl) | | |
| | | |
| | | TLR28 Dead End Dead end to use on extra field-cut trac sections. finishes: white(wh), black(bl), silver(sl) | | |
| | | ^¡0 | | |
| | | |
| | | TLR34 End Feed Connector and Conduit Feed Allows trac to be fed via remote transformer with conduit through the end or top using standard ^" electrical connectors. Includes terminal block feed connector, mounting plate and cover. finishes: white(wh), black(bl), silver(sl) | | |
| | | |
| | | |
| | | TLR50 Pendant Feed End Connector For use in conjunction with TLR90/91/96 Pendant Stem assemblies to feed power into end of trac. Includes terminal block connector, support plate and cover. finishes: white(wh), black(bl), silver(sl) | | |
| | | |
| | | |
| | | Joiners and T-Bar Attachment Clip | | TLR23 Miniature Straight Connector Joins two trac sections end-to- end. Includes terminal block joiner and cover. finishes: white(wh), black(bl), silver(sl) | | TLR20 Accordion Adjustable Joiner Joins two trac sections at variable angles to left, right, up or down. Includes two terminal block connectors, joiner wires and covers. finishes: white(wh), black(bl), silver(sl) | | |
| | | |
| | | |
| | | |
| | | TLR24 Adjustable Connector Joins two trac sections to form a 90-degree corner or straight coupling. Includes two terminal block connectors, joiner wires and cover. finishes: white(wh), black(bl), silver(sl) | | TLR37 T-Bar Attachment Clip To attach trac to inverted ,6/is" T-bar ceiling runner. Compatible with either flush tile or drop tile installations. | | |
| | | |
| | | |
| | | Trac 12 | | |
| | | 104 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
