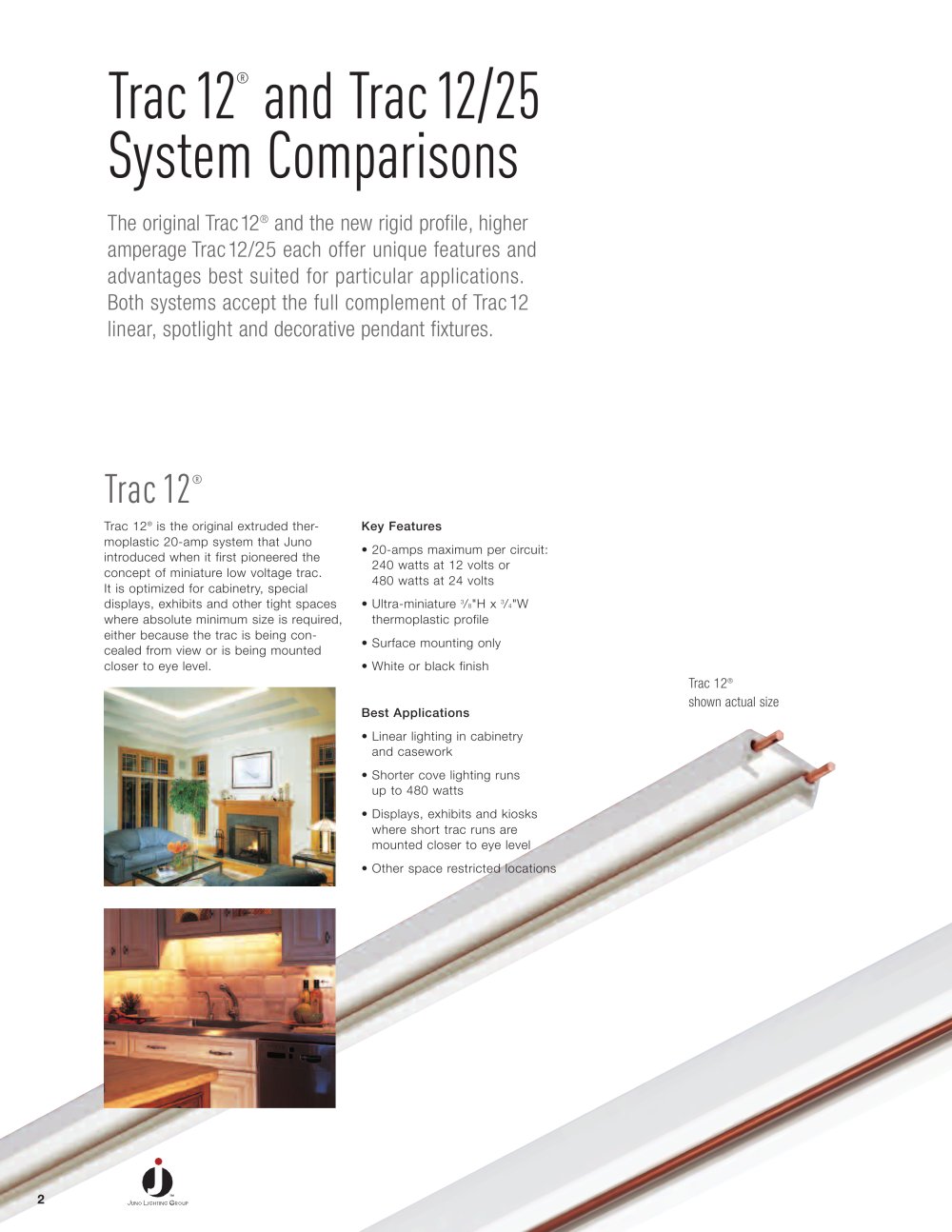

Trac12
®
and Trac12/25 System Comparisons
The original Trac12
® and the new rigid profile,higher amperage Trac12/25 each offer unique features and advantages best suited for particular applications.
Both systems accept the full complement of Trac12 linear,spotlight and decorative pendant fixtures.
Key Features • 20-amps maximum per circuit: 240 watts at 12 volts or 480 watts at 24 volts• Ultra-miniature ® Trac 12
Trac12
® is the original extruded ther-moplastic 20-amp system that Juno
introduced when it first pioneered the
concept of miniature low voltage trac. It is optimized for cabinetry, special displays, exhibits and other tight spaces
where absolute minimum size is required,
either because the trac is being con-
cealed from view or is being mounted
closer to eye level.
3 /
8 "H x
3 /
4 "W thermoplastic profile• Surface mounting only
• White or black finish Best Applications
® •
Linear lighting in cabinetry and casework• Shorter cove lighting runs up to 480 watts • Displays, exhibits and kiosks where short trac runs are mounted closer to eye level• Other space restricted locations
Trac 12 shown actual size
2
Trac 12
