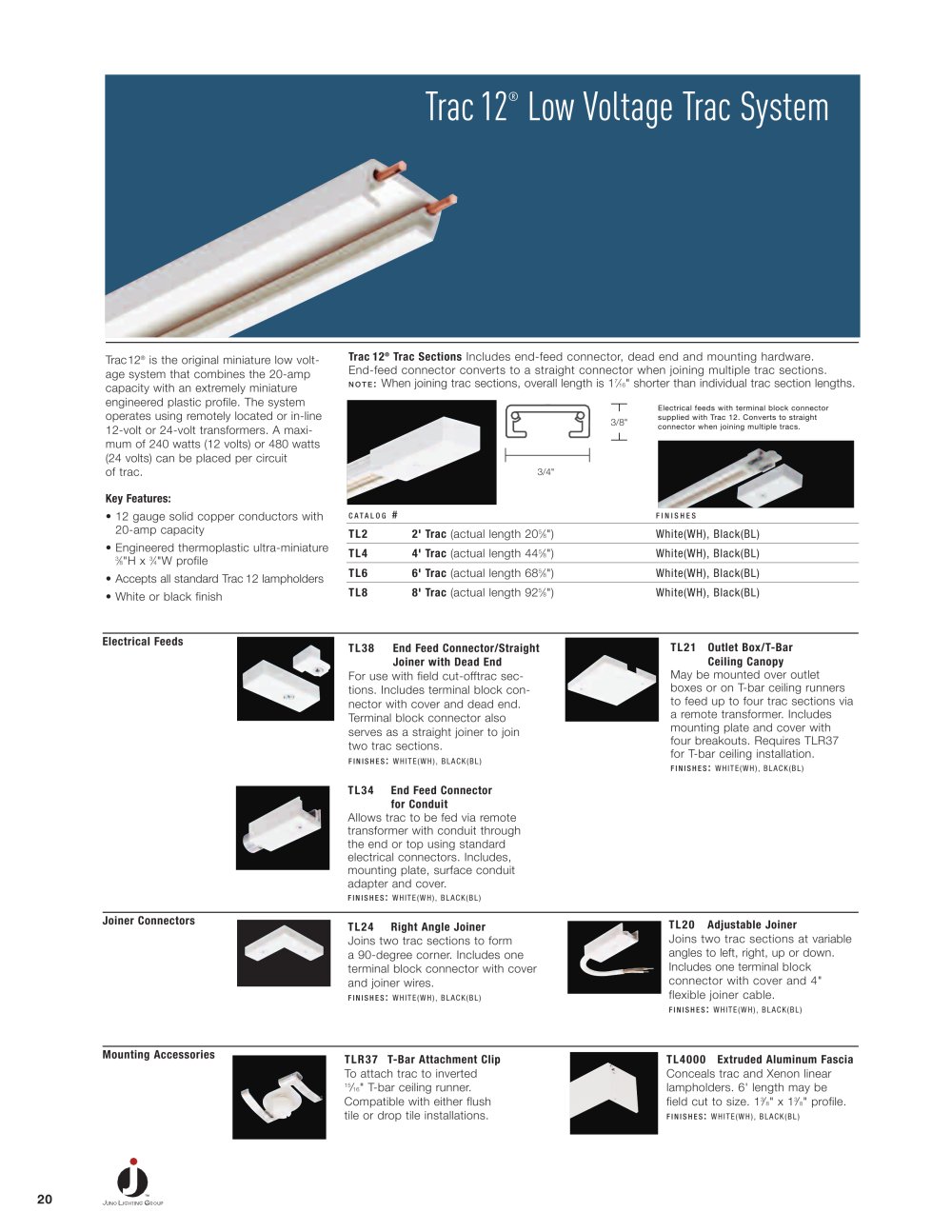

Trac12

®

Low Voltage Trac System

Key Features: • 12 gauge solid copper conductors with20-amp capacity• Engineered thermoplastic ultra-miniature Trac12
® is the original miniature low volt-age system that combines the 20-amp capacity with an extremely miniature engineered plastic profile. The system operates using remotely located or in-line 12-volt or 24-volt transformers. A maxi- mum of 240 watts (12 volts) or 480 watts (24 volts)can be placed per circuit of trac. Trac 1 2
® Trac Sections Includes end-feed connector, dead end and mounting hardware.End-feed connector converts to a straight connector when joining multiple trac sections.
NOTE : When joining trac sections, overall length is 1
7 �
16 " shorter than individual trac section lengths.
Electrical feeds with terminal block connectorsupplied with Trac 12. Converts to straight connector when joining multiple tracs. 3/8" 3/4" CATALOG # FINISHES TL22' Trac (actual length 20
5 �
8 ") White(WH),Bl a ck(BL)
3 �
8 "H x
3 �
4 "W profile• Accepts all standard Trac12 lampholders • White or black finish TL44' Trac (actual length 44
5 �
8 ") White(WH),Bl a ck(BL) TL66' Trac (actual length 68
5 �
8 ") White(WH),Bl a ck(BL) TL88' Trac (actual length 92
5 �
8 ") White(WH),Bl a ck(BL) Electrical Feeds TL38End Feed Connector/Straight Joiner with Dead End TL2 1 Outlet Box/T - Bar Ceiling Canopy For use with field cut-offtrac sec- tions. Includes terminal block con- nector with cover and dead end. Terminal block connector also serves as a straight joiner to join two trac sections. May be mounted over outlet boxes or on T-bar ceiling runners to feed up to four trac sections via a remote transformer. Includes mounting plate and cover with four breakouts. Requires TLR37 for T-bar ceiling installation.
FINISHES : WHITE(WH),BLACK(BL) FINISHES : WHITE(WH),BLACK(BL) Allows trac to be fed via remotetransformer with conduit through the end or top using standard electrical connectors. Includes, mounting plate, surface conduit adapter and cover.
FINISHES : WHITE(WH),BLACK(BL) Joiner Connectors TL24Right Angle Joiner TL20 Adjustable Joiner Joins two trac sections to form a 90-degree corner. Includes one terminal block connector with cover and joiner wires. Joins two trac sections at variable angles to left, right, up or down. Includes one terminal block connector with cover and 4" flexible joiner cable.
FINISHES : WHITE(WH),BLACK(BL) FINISHES : WHITE(WH),BLACK(BL) TL4000Extruded Aluminum Fascia Conceals trac and Xenon linear lampholders. 6' length may be field cut to size. 1 Mounting Accessories TL34 End Feed Connector for Conduit TLR37T - Bar Attachment Clip To attach trac to inverted
15 /
16 " T-bar ceiling runner.Compatible with either flush tile or drop tile installations.
3 /
8 " x 1
3 /
8 " profile.
FINISHES : WHITE(WH),BLACK(BL)

20

Trac 12
