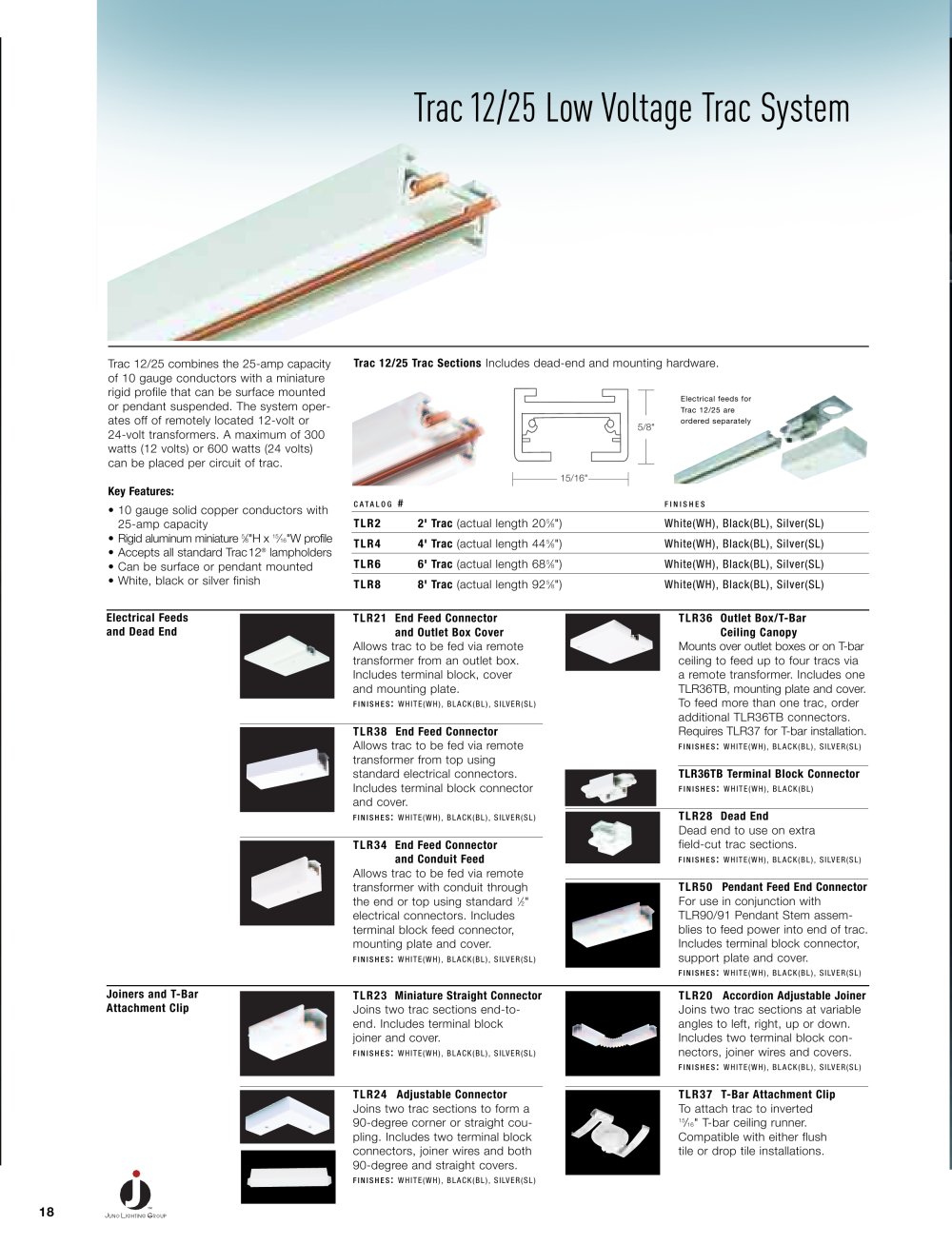

Trac12/25 Low Voltage Trac System
Key Features: Trac 12/25 combines the 25-amp capacityof10 gauge conductors with a miniaturerigid profile that can be surface mounted
or pendant suspended. The system oper-
ates off of remotely located 12-volt or 24-volt transformers. A maximum of 300
watts (12 volts) or 600 watts (24 volts)
can be placed per circuit of trac. 10 gauge solid copper conductors with25-amp capacityRigid aluminum miniature Trac 1 2/25 Trac Sections Includes dead-end and mounting hardware.
Electrical feeds for Trac 12/25 are ordered separately 5/8"15/16" CATALOG # FINISHES TLR22' Trac (actual length 20
5 ⁄
8 ") White(WH),Bl a ck(BL),Silver(SL)
5 ⁄
8 "H x
15 ⁄
16 "W profileAccepts all standard Trac12
lampholdersCan be surface or pendant mounted
White, black or silver finish TLR44' Trac (actual length 44
5 ⁄
8 ") White(WH),Bl a ck(BL),Silver(SL) TLR66' Trac (actual length 68
5 ⁄
8 ") White(WH),Bl a ck(BL),Silver(SL) TLR88' Trac (actual length 92
5 ⁄
8 ") White(WH),Bl a ck(BL),Silver(SL) Electrical Feedsand Dead End TLR2 1 End Feed Connector and Outlet Box Cover TLR36Outlet Box/T - Bar Ceiling Canopy Allows trac to be fed via remotetransformer from an outlet box.
Includes terminal block, cover and mounting plate. Mounts over outlet boxes or on T-barceiling to feed up to four tracs via
aremote transformer. Includes one
TLR36TB, mounting plate and cover.
To feed more than one trac, order
additional TLR36TB connectors.
Requires TLR37 for T-bar installation.
FINISHES : WHITE(WH),BLACK(BL),SILVER(SL) TLR38End Feed Connector Allows trac to be fed via remotetransformer from top using standard electrical connectors.
Includes terminal block connector
and cover.
FINISHES : WHITE(WH),BLACK(BL),SILVER(SL) TLR36TB Terminal Block Connector
FINISHES : WHITE(WH),BLACK(BL) FINISHES : WHITE(WH),BLACK(BL),SILVER(SL) TLR28Dead End Dead end to use on extra field-cut trac sections. TLR34End Feed Connector and Conduit Feed
FINISHES : WHITE(WH),BLACK(BL),SILVER(SL) Allows trac to be fed via remotetransformer with conduit through
the end or top using standard TLR50Pendant Feed End Connector
1 ⁄
2 "electrical connectors. Includes terminal block feed connector,
mounting plate and cover. For use in conjunction withTLR90/91 Pendant Stem assem-
blies to feed power into end of trac.
Includes terminal block connector,support plate and cover.
FINISHES : WHITE(WH),BLACK(BL),SILVER(SL) FINISHES : WHITE(WH),BLACK(BL),SILVER(SL) Joiners and T - BarAttachment Clip TLR23Miniature Straight Connector TLR20Accordion Adjustable Joiner Joins two trac sections end-to-end. Includes terminal block joiner and cover. Joins two trac sections at variableangles to left, right, up or down.
Includes two terminal block con-
nectors, joiner wires and covers.
FINISHES : WHITE(WH),BLACK(BL),SILVER(SL) FINISHES : WHITE(WH),BLACK(BL),SILVER(SL) TLR24Adjustable Connector TLR37T - Bar Attachment Clip Joins two trac sections to form a90-degree corner or straight cou-
pling. Includes two terminal block
connectors, joiner wires and both
90-degree and straight covers. To attach trac to inverted
15 /
16 "T-bar ceiling runner.Compatible with either flush
tile or drop tile installations.
FINISHES : WHITE(WH),BLACK(BL),SILVER(SL) Trac
