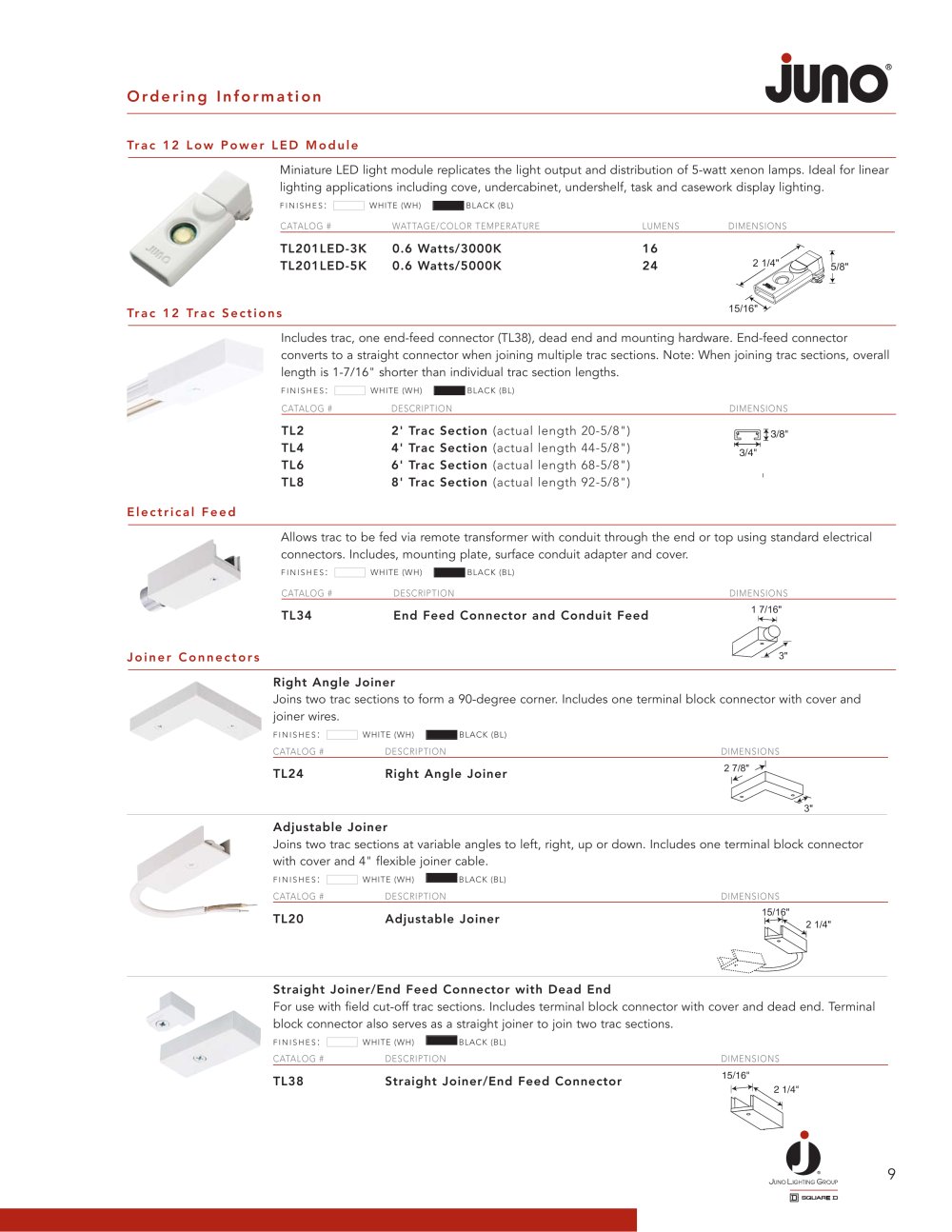

Ordering Information

Trac 12 Low Power LED Module Miniature LED light module replicates the light output and distribution of 5-watt xenon lamps. Ideal for linear lighting applications including cove, undercabinet, undershelf, task and casework display lighting.
FINISHES : WHITE (WH)BLACK (BL) CATALOG#WATTAGE/COLOR TEMPERATURELUMENSDIMENSIONS TL201LED-3K0.6 Watts/3000K16TL201LED-5K0.6 Watts/5000K24
5/8"2 1/4"15/16" Trac 12 Trac Sections Includes trac, one end-feed connector (TL38), dead end and mounting hardware. End-feed connectorconverts to a straight connector when joining multiple trac sections. Note: When joining trac sections, overall length is 1-7/16" shorter than individual trac section lengths.
FINISHES : WHITE (WH)BLACK (BL) CATALOG#DESCRIPTIONDIMENSIONS TL22' TracSection (actual length20-5/8") TL44' TracSection (actual length 44-5/8")
3/4"3/8" TL66' TracSection (actual length 68-5/8") TL88' TracSection (actual length 92-5/8") Electrical Feed Right Angle Joiner Allows trac to be fed via remote transformer with conduit through the end or top using standard electricalconnectors. Includes, mounting plate, surface conduit adapter and cover.
FINISHES : WHITE (WH)BLACK (BL) CATALOG#DESCRIPTIONDIMENSIONS TL34End Feed Connector and Conduit Feed
1 7/16"3" Joiner Connectors Joins two trac sections to form a 90-degree corner. Includes one terminal block connector with cover and joiner wires.
FINISHES : WHITE (WH)BLACK (BL) CATALOG#DESCRIPTIONDIMENSIONS TL24Right Angle Joiner
2 7/8"3" Adjustable Joiner Joins two trac sections at variable angles to left, right, up or down. Includes one terminal block connector with cover and 4" flexible joiner cable.
FINISHES : WHITE (WH)BLACK (BL) CATALOG#DESCRIPTIONDIMENSIONS TL20Adjustable Joiner
15/16"2 1/4" Straight Joiner/End Feed Connector with Dead End For use with field cut-off trac sections. Includes terminal block connector with cover and dead end. Terminal block connector also serves as a straight joiner to join two trac sections.
FINISHES : WHITE (WH)BLACK (BL) CATALOG#DESCRIPTIONDIMENSIONS TL38Straight Joiner/End Feed Connector
15/16"2 1/4"
