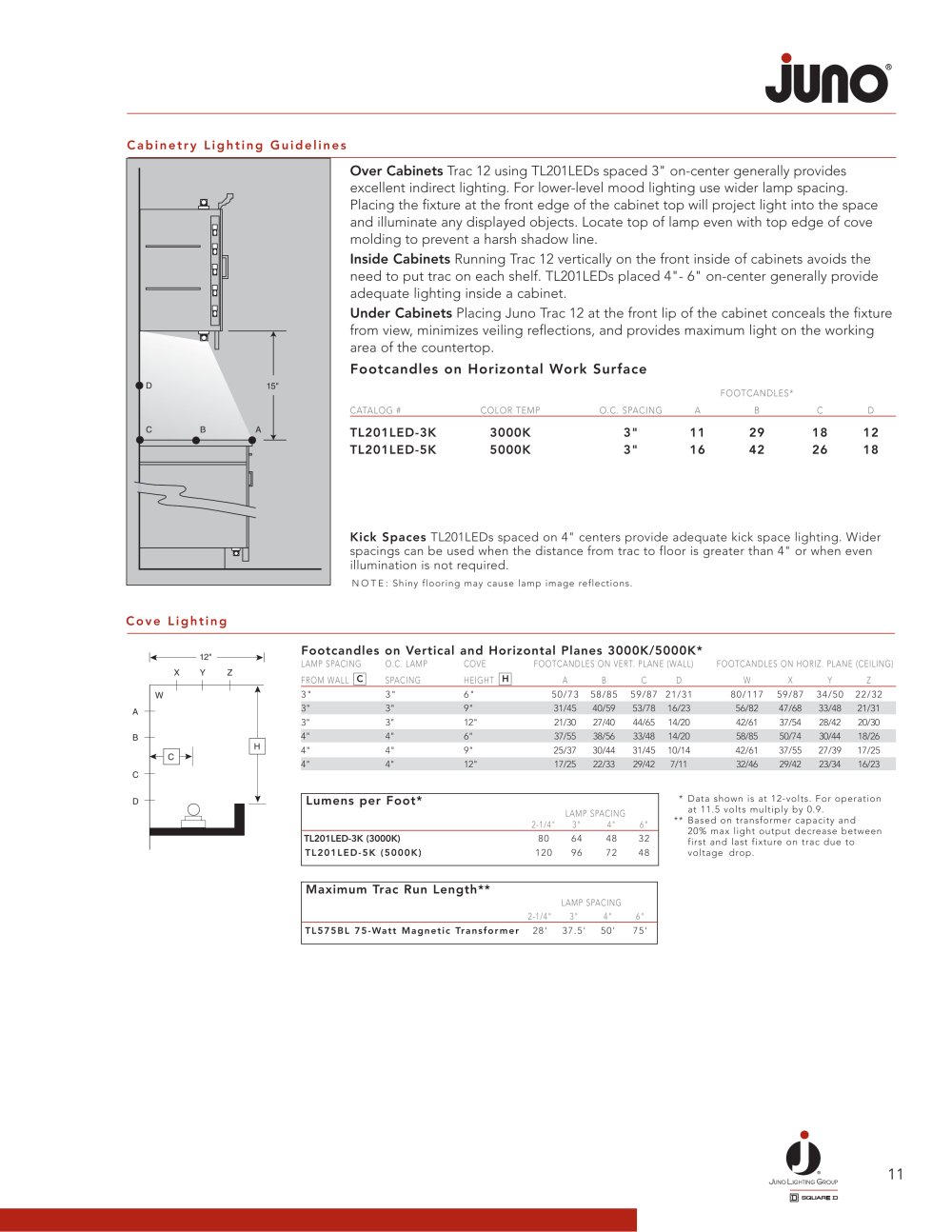

Cabinetry Lighting Guidelines
Over Cabinets Trac 12 using TL201LEDs spaced 3" on-center generally provides excellent indirect lighting. For lower-level mood lighting use wider lamp spacing. Placing the fixture at the front edge of the cabinet top will project light into the space and illuminate any displayed objects. Locate top of lamp even with top edge of cove molding to prevent a harsh shadow line.
Inside Cabinets Running Trac 12 vertically on the front inside of cabinets avoids the need to put trac on each shelf. TL201LEDs placed 4"- 6" on-center generally provide adequate lighting inside a cabinet.
Under Cabinets Placing Juno Trac 12 at the front lip of the cabinet conceals the fixture from view, minimizes veiling reflections, and provides maximum light on the working area of the countertop.
Footcandles on Horizontal Work Surface
FOOTCANDLES B
CATALOG #
COLOR TEMP
O.C. SPACING
TL201LED-3K TL201LED-5K
3000K 5000K
3" 3"
11 16
29 42
18
26
12 18
Kick Spaces TL201LEDs spaced on 4" centers provide adequate kick space lighting. Wider spacings can be used when the distance from trac to floor is greater than 4" or when even illumination is not required.
NOTE: Shiny flooring may cause lamp image reflections.
Cove Lighting
Footcandles on Vertical and Horizontal Planes 3000K/5000K*
\<-12" -►
X Y Z
LAMP SPACING
FOOTCANDLES ON VERT. PLANE (WALL;
FOOTCANDLES ON HORIZ. PLANE (CEILING)
O.C. LAMP
COVE
FROM WALL \C
SPACING
HEIGHT [H
A
B
C
D
W
X
Y
Z
3"
3"
6"
50/73
58/85
59/87
21/31
80/117
59/87
34/50
22/32
3
3
9"
31/45
40/59
53/78
16/23
56/82
47/68
33/48
21/31
3
3
12"
21/30
27/40
44/65
14/20
42/61
37/54
28/42
20/30
4
4
6"
37/55
38/56
33/48
14/20
58/85
50/74
30/44
18/26
4
4
9"
25/37
30/44
31/45
10/14
42/61
37/55
27/39
17/25
4
4
12"
17/25
22/33
29/42
7/11
32/46
29/42
23/34
16/23
W
A
B
Lumens per Foot*
LAMP SPACING
2-1/4"
3"
4"
6"
TL201LED-3K (3000K)
80
64
48
32
TL201LED-5K (5000K)
120
96
72
48
Data shown is at 12-volts. For operatlor at 11.5 volts multiply by 0.9. : Based on transformer capacity anc 20% max light output decrease between first and last fixture on trac due to voltage drop.
O
J
Maximum Trac Run Length**
LAMP SPACING
3' 4'
2-1/4"
TL575BL 75-Watt Magnetic Transformer 28 37.5
50'75
11
Juno Lighting Group
