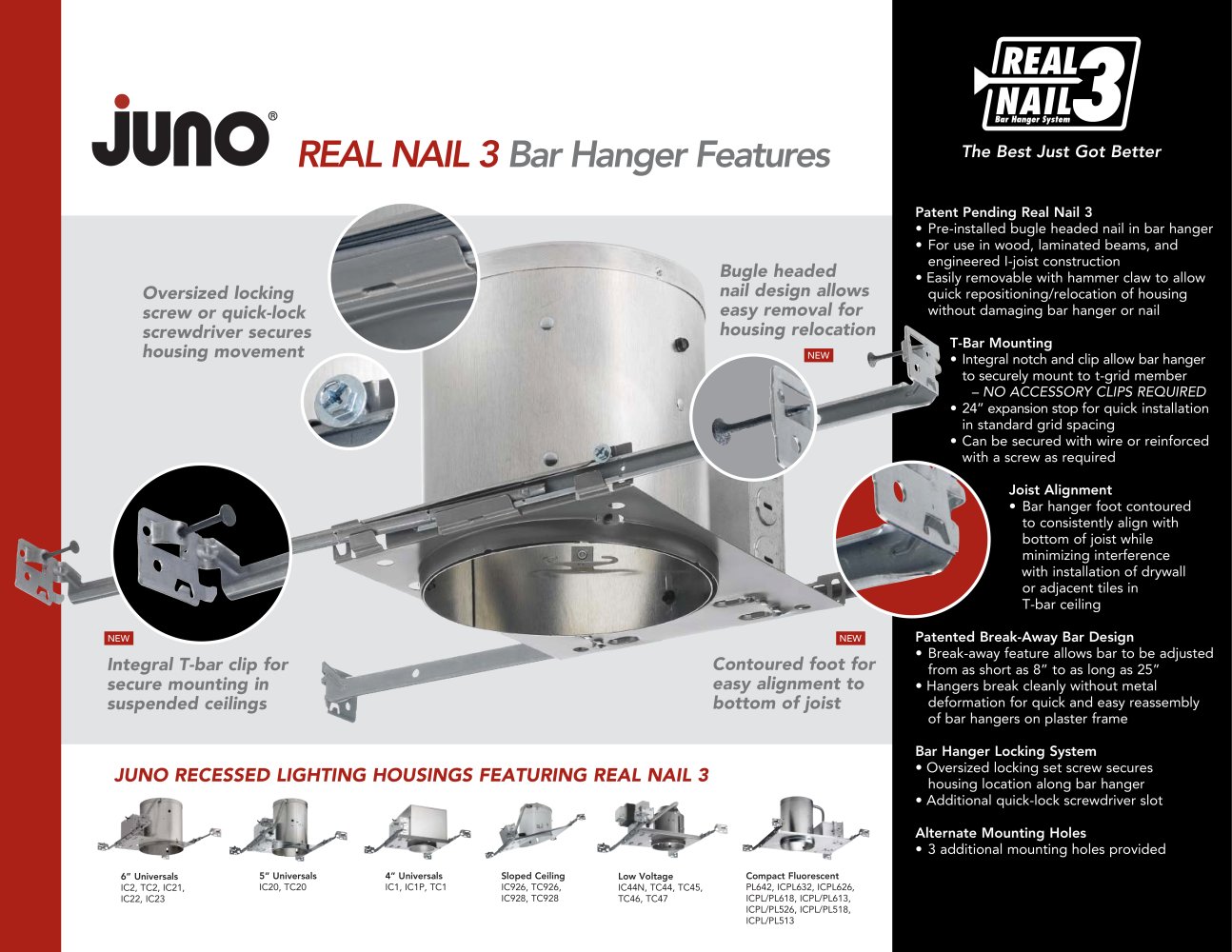

REAL NAIL 3 Bar Hanger Features

The Best Just Got Better

Patent Pending Real Nail 3 • Pre-installed bugle headed nail in bar hanger • For use in wood, laminated beams, and engineered I-joist construction• Easily removable with hammer claw to allowquick repositioning/relocation of housing without damaging bar hanger or nail

Bugle headed nail design allows easy removal for housing relocation

T-Bar Mounting

Oversized locking screw or quick-lock screwdriver secures housing movement

• Integral notch and clip allow bar hanger to securelymount to t-grid member – NO ACCESSORY CLIPS REQUIRED •24” expansion stop for quick installationin standard grid spacing• Can be secured with wire or reinforced with a screw as required

NEW

Joist Alignment • Bar hanger foot contoured to consistently align with bottom of joist while minimizing interference with installation of drywall or adjacent tiles in T-bar ceiling Patented Break-Away Bar Design • Break-away feature allows bar to be adjusted from as short as 8” to as long as 25”• Hangers break cleanly without metal deformation for quick and easy reassembly of bar hangers on plaster frame Bar Hanger Locking System • Oversized locking set screw secures housing location along bar hanger• Additional quick-lock screwdriver slot

NEW NEW

Alternate Mounting Holes

Integral T-bar clip forsecure mounting in suspended ceilings Contoured foot foreasy alignment to bottom of joist

• 3 additional mounting holes provided

JUNO RECESSED LIGHTING HOUSINGS FEATURINGREAL NAIL 3

Compact Fluorescent PL642, ICPL632, ICPL626, ICPL/PL618, ICPL/PL613, ICPL/PL526, ICPL/PL518, ICPL/PL513 Low Voltage IC44N, TC44, TC45, TC46, TC47 4” Universals Sloped Ceiling IC20, TC20 IC1, IC1P, TC1 IC926, TC926, IC928, TC928 6” Universals 5” Universals IC2, TC2, IC21, IC22, IC23
