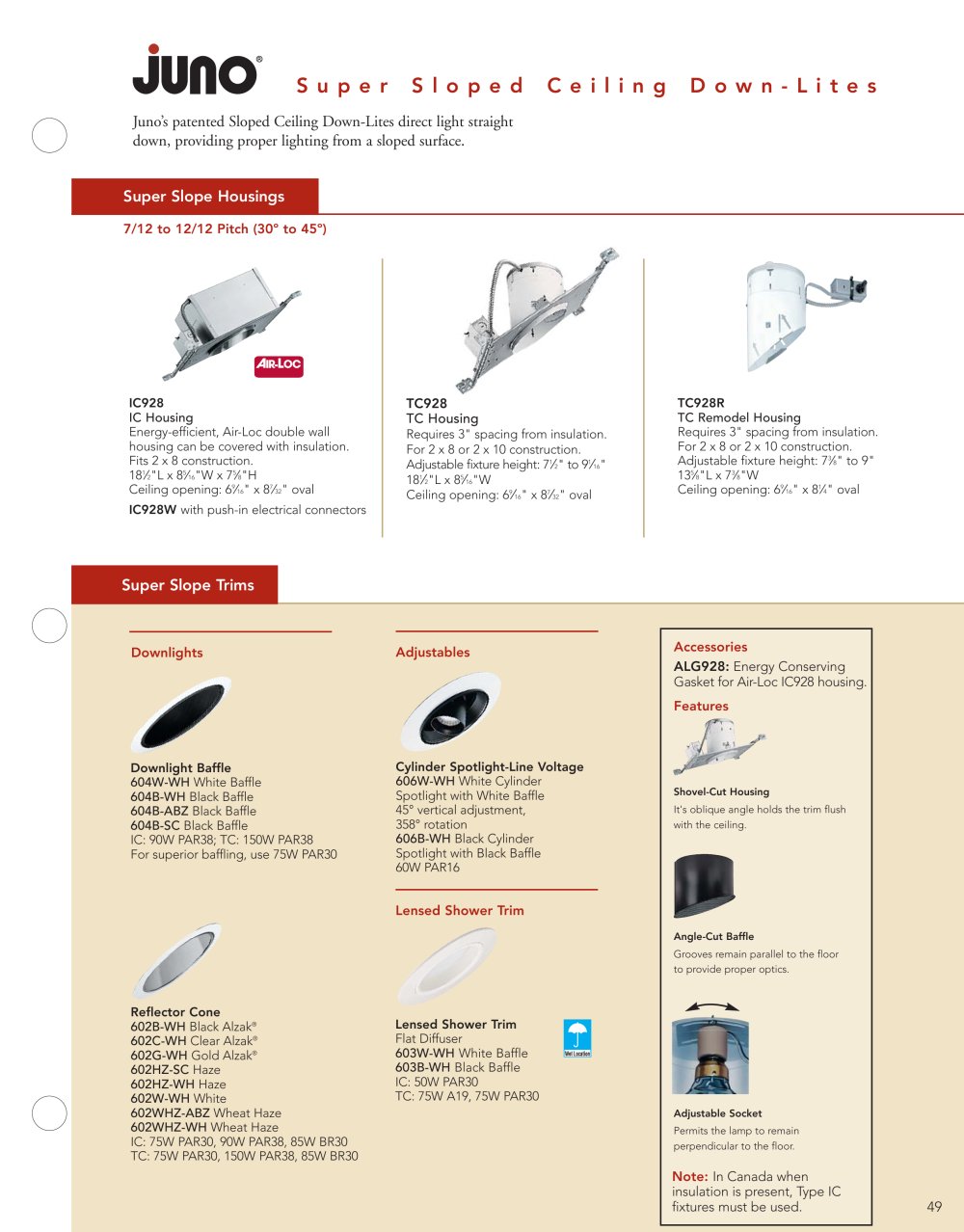

Super Sloped Ceiling Down-Lites
Junos patented Sloped Ceiling Down-Lites direct light straight down, providing proper lighting from a sloped surface. Super Slope Housings
7/12 to 12/12 Pitch (30 to 45)
IC928 Energy-efficient, Air-Loc double wall
housing can be covered with insulation. Fits 2 x 8 construction.
18
TC928
TC928R Requires 3" spacing from insulation. For 2 x 8 or 2 x 10 construction.
Adjustable fixture height: 7 IC Housing
TC Housing
TC Remodel Housing Requires 3" spacing from insulation. For 2 x 8 or 2 x 10 construction.
Adjustable fixture height: 7
1 3 2 1 16 ⁄
8 " to 9"13
1 ⁄
" to 9
⁄
"18 ⁄
2 "L x 8
5 ⁄
16 "W x 7
5 ⁄
8 "HCeiling opening: 6
1 5 3 2 5 16 ⁄
8 "L x 7 ⁄
8 "WCeiling opening: 6
9 "L x 8 "WCeiling opening: 6 ⁄
16 " x 8
7 ⁄
32 " oval
⁄ ⁄
9 1 9 ⁄
16 4 16 " x 8
7 ⁄
32 " oval ⁄ " x 8 ⁄ " oval IC928W with push-in electrical connectors
Super Slope Trims
AdjustablesDownlights Accessories ALG928: Energy ConservingGasket for Air-Loc IC928 housing. Features
606B-WH Black Cylinder Spotlight with Black Baffle
60W PAR16 Cylinder Spotlight-Line Voltage 606W-WH White Cylinder Spotlight with White Baffle
45vertical adjustment, 358rotation
Downlight Baffle 604W-WH White Baffle 604B-WH Black Baffle
Shovel-Cut Housing 604B-ABZ Black Baffle
It's oblique angle holds the trim flushwith the ceiling. 604B-SC Black BaffleIC: 90W PAR38; TC: 150W PAR38
For superior baffling, use 75W PAR30
Lensed Shower Trim
Angle-Cut Baffle Grooves remain parallel to the floorto provide proper optics. Reflector Cone 602B-WH Black Alzak
Lensed Shower Trim Flat Diffuser 603W-WH White Baffle 602C-WH Clear Alzak
603B-WH Black BaffleIC: 50W PAR30
TC: 75W A19, 75W PAR30 602G-WH Gold Alzak
602HZ-SC Haze 602HZ-WH Haze 602W-WH White 602WHZ-ABZ Wheat Haze
Adjustable Socket 602WHZ-WH Wheat HazeIC: 75W PAR30, 90W PAR38, 85W BR30
TC: 75W PAR30, 150W PAR38, 85W BR30
Permits the lamp to remainperpendicular to the floor. Note: In Canada when insulation is present, Type ICfixtures must be used.
49
