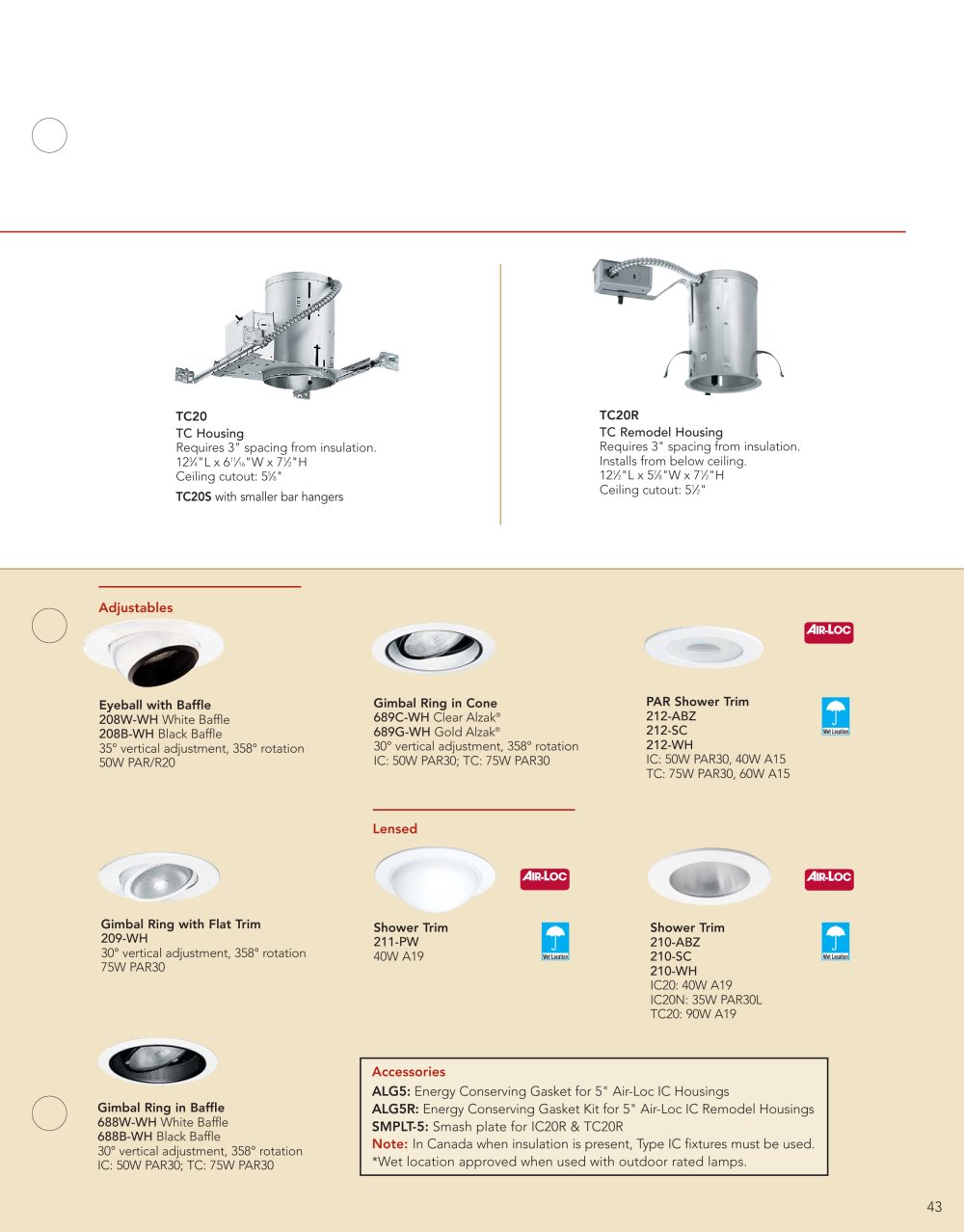

TC20 TC20R TC Housing TC Remodel Housing Requires 3" spacing from insulation.
12 Requires 3" spacing from insulation. Installs from below ceiling.
12
3 ⁄
4 "L x 6
11 ⁄
16 "W x 7
1 ⁄
2 "HCeiling cutout: 5
5 ⁄
1 7 1 8 " ⁄
2 "L x 5 ⁄
8 "W x 7 ⁄
2 "HCeiling cutout: 5
1 TC20S with smaller bar hangers ⁄
2 "
Adjustables
Eyeball with Baffle 208W-WH White Baffle Gimbal Ring in Cone 689C-WH Clear Alzak PAR Shower Trim 212-ABZ
212-SC
212-WH IC: 50W PAR30, 40W A15
TC: 75W PAR30, 60W A15 208B-WH Black Baffle35vertical adjustment, 358rotation
50W PAR/R20
689G-WH Gold Alzak
30vertical adjustment, 358rotationIC: 50W PAR30; TC: 75W PAR30
Lensed
IC20: 40W A19
IC20N: 35W PAR30L
TC20: 90W A19 Gimbal Ring with Flat Trim 209-WH 30vertical adjustment, 358rotation
75W PAR30 Shower Trim 40W A19 Shower Trim 211-PW 210-ABZ
210-SC
210-WH
Accessories ALG5: Energy Conserving Gasket for 5"Air-Loc IC Housings
Gimbal Ring in Baffle
ALG5R: Energy Conserving Gasket Kit for 5"Air-Loc IC Remodel Housings
688W-WH White Baffle 688B-WH Black Baffle30vertical adjustment, 358rotation
IC: 50W PAR30; TC: 75W PAR30
SMPLT-5: Smash plate for IC20R & TC20R Note: In Canada when insulation is present, Type IC fixtures must be used.*Wet location approved when used with outdoor rated lamps.
43
