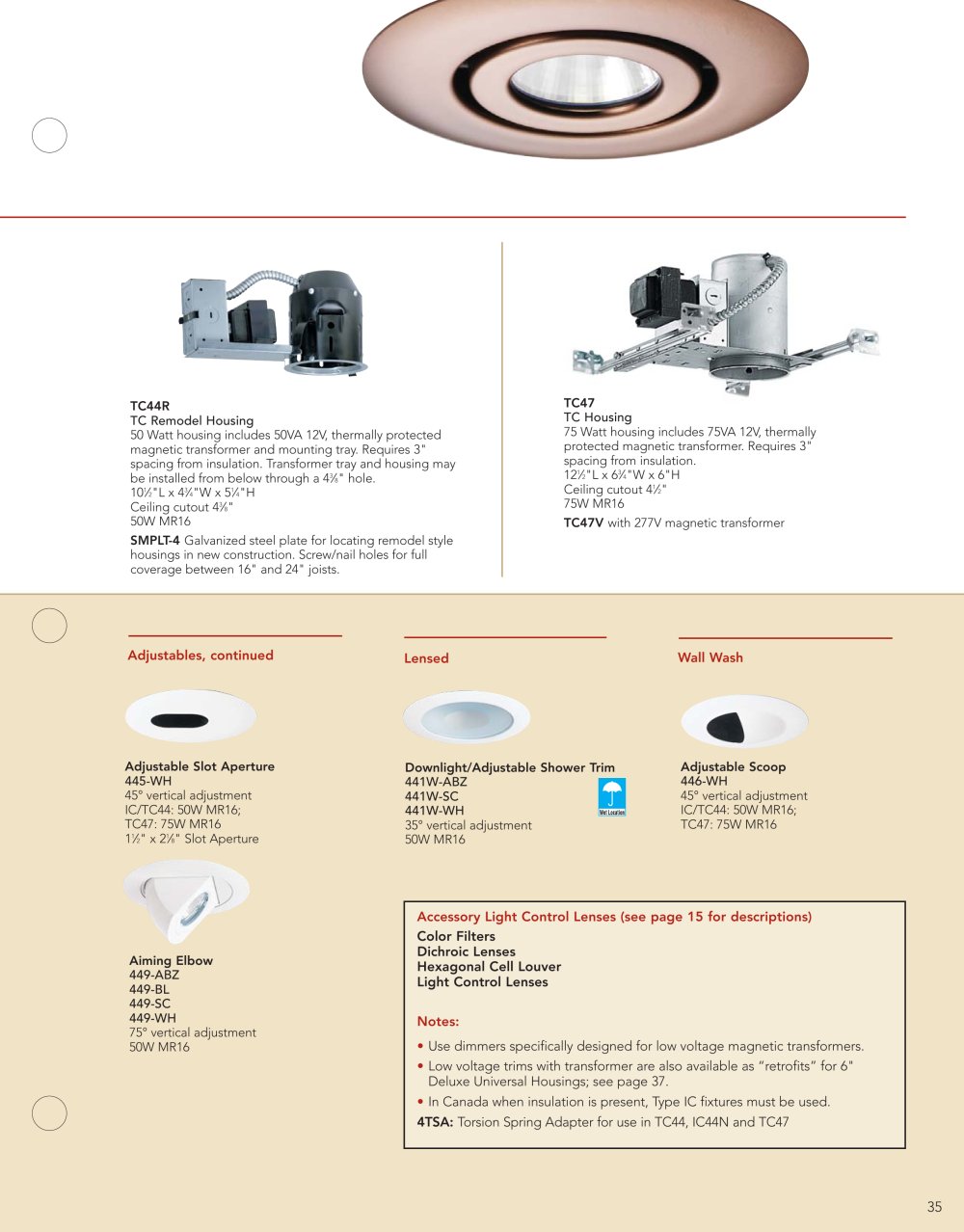

TC44R 50 Watt housing includes 50VA 12V, thermally protected magnetic transformer and mounting tray. Requires 3" spacing from insulation. Transformer tray and housing may be installed from below through a 4 TC47 75 Watt housing includes 75VA 12V, thermally protected magnetic transformer. Requires 3" spacing from insulation. 12 TC Remodel Housing TC Housing
3 �
1 3 8 " hole.10 �
2 "L x 6 �
4 "W x 6"HCeiling cutout 4
1 �
1 2 "L x 4
3 �
4 "W x 5
1 �
4 "H Ceiling cutout 4 �
2 "75W MR16
3 �
8 "50W MR16 TC47V with 277V magnetic transformer SMPLT-4 Galvanized steel plate for locating remodel stylehousings in new construction. Screw/nail holes for full coverage between 16" and 24" joists. Adjustable Slot Aperture 45°vertical adjustment IC/TC44: 50W MR16; TC47: 75W MR16 1 35°vertical adjustment 50W MR16 445-WH

Adjustables, continued Lensed

Downlight/Adjustable Shower Trim 441W-ABZ 441W-SC 441W-WH

Wall Wash

Adjustable Scoop 45°vertical adjustment IC/TC44: 50W MR16; TC47: 75W MR16 446-WH
1 �
2 " x 2
1 �
8 " Slot Aperture 75°vertical adjustment 50W MR16

Accessory Light Control Lenses (see page 15 for descriptions) Color FiltersDichroic LensesHexagonal Cell Louver Light Control Lenses

Aiming Elbow 449-ABZ 449-BL 449-SC 449-WH

Notes: • Use dimmers specifically designed for low voltage magnetic transformers. • Low voltage trims with transformer are also available as “retrofits” for 6"Deluxe Universal Housings; see page 37. • In Canada when insulation is present, Type IC fixtures must be used. 4TSA: Torsion Spring Adapter for use in TC44, IC44N and TC47
