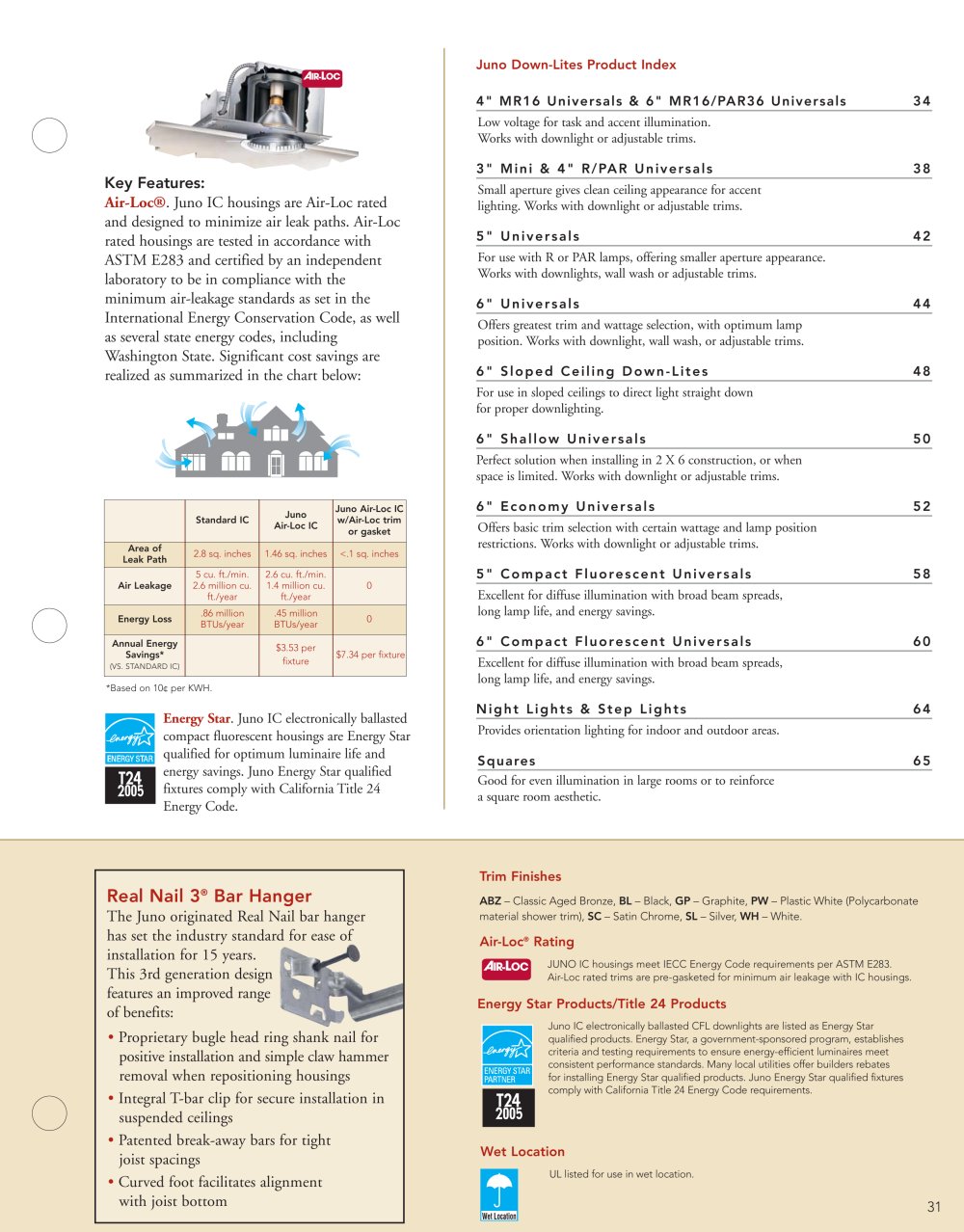

Juno Down-Lites Product Index 4" MR16 Universals & 6" MR16/PAR36 Universals34 Low voltage for task and accent illumination. Works with downlight or adjustable trims. 3" Mini & 4" R/PAR Universals38

Key Features:

Small aperture gives clean ceiling appearance for accent lighting. Works with downlight or adjustable trims.

Air-Loc® . Juno IC housings are Air-Loc ratedand designed to minimize air leak paths. Air-Loc rated housings are tested in accordance with ASTM E283 and certified by an independent laboratory to be in compliance with the minimum air-leakage standards as set in the International Energy Conservation Code, as well as several state energy codes, including Washington State. Significant cost savings are realized as summarized in the chart below:

5" Universals42 For use with R or PAR lamps, offering smaller aperture appearance. Works with downlights, wall wash or adjustable trims. 6" Universals44 Offers greatest trim and wattage selection, with optimum lamp position. Works with downlight, wall wash, or adjustable trims. 6" Sloped Ceiling Down-Lites48 For use in sloped ceilings to direct light straight down for proper downlighting. 6" Shallow Universals50 Perfect solution when installing in 2 X 6 construction, or when space is limited. Works with downlight or adjustable trims.
Juno Air-Loc ICw/Air-Loc trimor gasket 6" Economy Universals52
Standard IC Juno Air-Loc IC Offers basic trim selection with certain wattage and lamp position restrictions. Works with downlight or adjustable trims.
Area of Leak Path 2.8 sq. inches 1.46 sq. inches <.1 sq. inches 5 cu. ft./min. 2.6 million cu.ft./year 2.6 cu. ft./min.1.4 million cu.ft./year Air Leakage 5" Compact Fluorescent Universals58 Excellent for diffuse illumination with broad beam spreads, long lamp life, and energy savings.
Energy Loss .86 millionBTUs/year .45 millionBTUs/year Annual EnergySavings* $3.53 per fixture 6" Compact Fluorescent Universals60
$7.34 per fixture (VS. STANDARDIC) Excellent for diffuse illumination with broad beam spreads, long lamp life, and energy savings.
*Based on 10¢ per KWH.

Energy Star . Juno IC electronically ballasted compact fluorescent housings are Energy Star qualified for optimum luminaire life and energy savings. Juno Energy Star qualified fixtures comply with California Title 24 Energy Code.

Night Lights & Step Lights64 Provides orientation lighting for indoor and outdoor areas. Squares65 Good for even illumination in large rooms or to reinforce a square room aesthetic. Trim Finishes

Real Nail 3

®

Bar Hanger

ABZ – Classic Aged Bronze, BL – Black, GP – Graphite, PW – Plastic White (Polycarbonatematerial shower trim),

The Juno originated Real Nail bar hanger has set the industry standard for ease of installation for 15 years. This 3rd generation design features an improved range of benefits:

SC – Satin Chrome, SL – Silver, WH – White. Air-Loc
® Rating
JUNOIC housings meet IECC Energy Code requirements per ASTM E283. Air-Loc rated trims are pre-gasketed for minimum air leakage with IC housings. Energy Star Products/Title 24 Products
Juno IC electronically ballasted CFL downlights are listed as Energy Star qualified products. Energy Star, a government-sponsored program, establishes criteria and testing requirements to ensure energy-efficient luminaires meet consistent performance standards. Many local utilities offer builders rebates for installing Energy Star qualified products. Juno Energy Star qualified fixturescomply with California Title 24 Energy Code requirements.

• Proprietary bugle head ring shank nail for positive installation and simple claw hammer removal when repositioning housings • Integral T-bar clip for secure installation insuspended ceilings • Patented break-away bars for tight joist spacings

Wet Location

• Curved foot facilitates alignment with joist bottom

UL listed for use in wet location.

31
