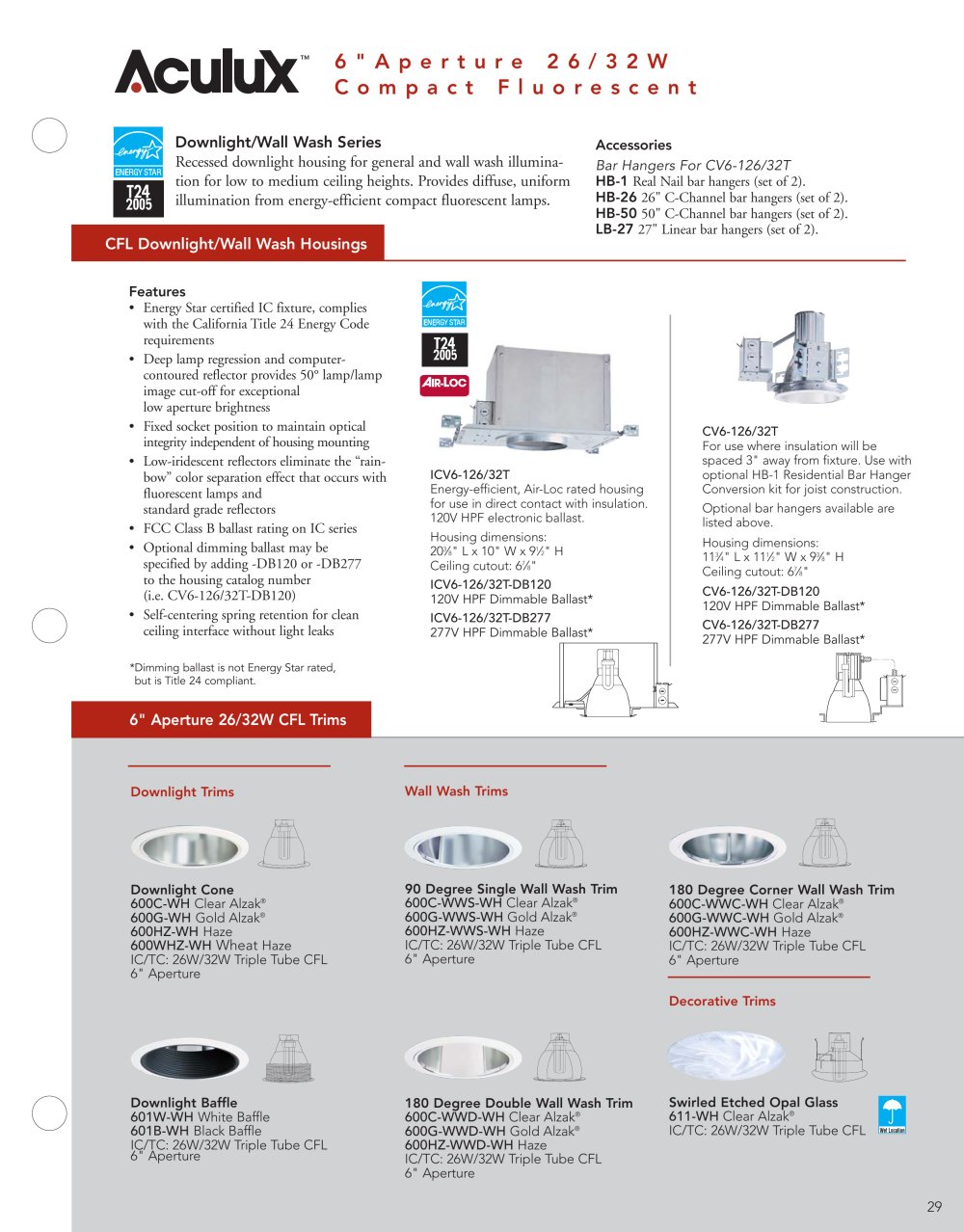

6"Aperture 26/32W Compact Fluorescent
Accessories
Recessed downlight housing for general and wall wash illumina-
tion for low to medium ceiling heights. Provides diffuse, uniform
illumination from energy-efficient compact fluorescent lamps.
Bar Hangers For CV6-126/32T HB-1 Real Nail bar hangers (set of 2). HB-26 26" C-Channel bar hangers (set of 2). HB-50 50" C-Channel bar hangers (set of 2). LB-27 27" Linear bar hangers (set of 2).
CFL Downlight/Wall Wash Housings
Features Energy Star certified IC fixture, complieswith the California Title 24 Energy Code
requirements Deep lamp regression and computer-contoured reflector provides 50lamp/lamp
image cut-off for exceptional low aperture brightness Fixed socket position to maintain opticalintegrity independent of housing mountingLow-iridescent reflectors eliminate the rain-bow color separation effect that occurs with
fluorescent lamps and standard grade reflectors FCC Class B ballast rating on IC series Optional dimming ballast may bespecified by adding -DB120 or -DB277
to the housing catalog number (i.e. CV6-126/32T-DB120) Self-centering spring retention for clean ceiling interface without light leaks
CV6-126/32T For use where insulation will be
spaced 3" away from fixture. Use with
optional HB-1 Residential Bar Hanger
Conversion kit for joist construction.Optional bar hangers available arelisted above.Housing dimensions: 11 ICV6-126/32T Energy-efficient, Air-Loc rated housing
for use in direct contact with insulation.
120V HPF electronic ballast.Housing dimensions: 20 3 ⁄ 8 " L x 10" W x 9 1 ⁄ 2 " HCeiling cutout: 6 3 1 3 7 ⁄ 4 2 8 8 " ⁄ " L x 11 ⁄ " W x 9 ⁄ " HCeiling cutout: 6 7 ⁄ 8 " ICV6-126/32T-DB120 120V HPF Dimmable Ballast* CV6-126/32T-DB120 120V HPF Dimmable Ballast* ICV6-126/32T-DB277 277V HPF Dimmable Ballast* CV6-126/32T-DB277 277V HPF Dimmable Ballast* *Dimming ballast is not Energy Star rated,but is Title 24 compliant. 6" Aperture 26/32W CFL Trims
Downlight Trims Wall Wash Trims 180 Degree Corner Wall Wash Trim 600C-WWC-WH Clear Alzak Downlight Cone
90 Degree Single Wall Wash Trim 600C-WH Clear Alzak
600C-WWS-WH Clear Alzak
600G-WH Gold Alzak 600G-WWS-WH Gold Alzak
600G-WWC-WH Gold Alzak
600HZ-WH Haze 600HZ-WWS-WH HazeIC/TC: 26W/32W Triple Tube CFL
6" Aperture 600HZ-WWC-WH HazeIC/TC: 26W/32W Triple Tube CFL
6" Aperture 600WHZ-WH
Wheat
HazeIC/TC: 26W/32W Triple Tube CFL
6" Aperture Decorative Trims Downlight Baffle 180 Degree Double Wall Wash Trim 601W-WH White Baffle 600C-WWD-WH Clear Alzak 601B-WH Black BaffleIC/TC: 26W/32W Triple Tube CFL6" Aperture
Swirled Etched Opal Glass 611-WH Clear Alzak
600G-WWD-WH Gold Alzak
IC/TC: 26W/32W Triple Tube CFL 600HZ-WWD-WH HazeIC/TC: 26W/32W Triple Tube CFL
6" Aperture
29
