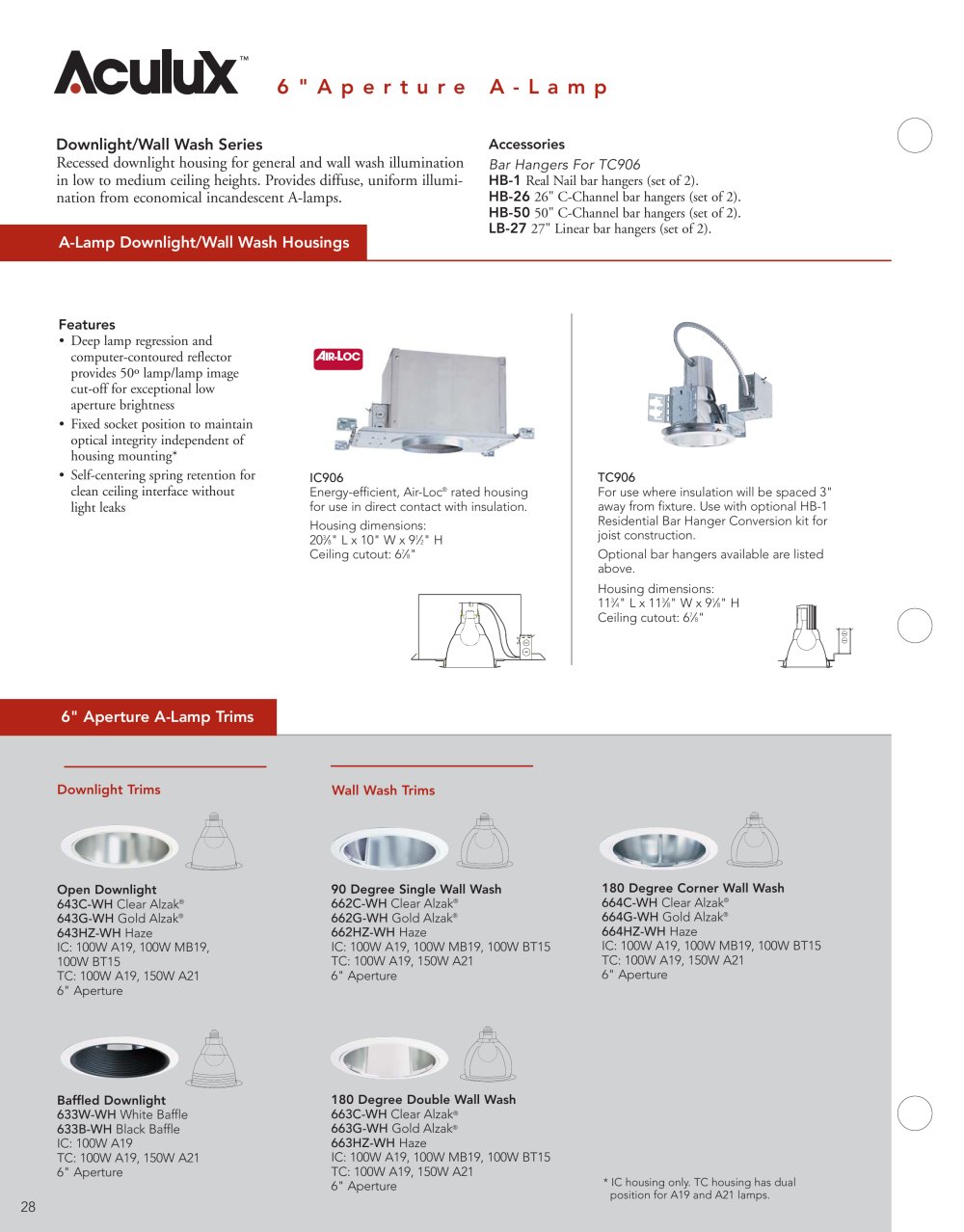

6"Aperture A-Lamp
Accessories
Recessed downlight housing for general and wall wash illumination
in low to medium ceiling heights. Provides diffuse, uniform illumi-
nation from economical incandescent A-lamps.
Bar Hangers For TC906 HB-1 Real Nail bar hangers (set of 2). HB-26 26" C-Channel bar hangers (set of 2). HB-50 50" C-Channel bar hangers (set of 2). LB-27 27" Linear bar hangers (set of 2).
A-Lamp Downlight/Wall Wash Housings
Features • Deep lamp regression and computer-contoured reflector provides 50º lamp/lamp image
cut-off for exceptional low aperture brightness• Fixed socket position to maintain optical integrity independent of housing mounting*• Self-centering spring retention for clean ceiling interface without light leaks
IC906 TC906 Energy-efficient, Air-Loc
® rated housing for use in direct contact with insulation.Housing dimensions:20 For use where insulation will be spaced 3"
away from fixture. Use with optional HB-1
Residential Bar Hanger Conversion kit for
joist construction.Optional bar hangers available are listedabove.Housing dimensions: 11
3 â„
8 " L x 10" W x 9
1 â„
2 " HCeiling cutout: 6
7 â„
8 "
3 â„
4 " L x 11
3 â„
8 " W x 9
1 â„
8 " HCeiling cutout: 6
7 â„
8 "
6" Aperture A-Lamp Trims
Downlight Trims Wall Wash Trims
Open Downlight 90 Degree Single Wall Wash 643C-WH Clear Alzak 662C-WH Clear Alzak 180 Degree Corner Wall Wash 664C-WH Clear Alzak
® ® ® 643G-WH Gold Alzak
® 662G-WH Gold Alzak
® 664G-WH Gold Alzak
® 643HZ-WH HazeIC: 100W A19, 100W MB19, 100W BT15
TC: 100W A19, 150W A21
6" Aperture 662HZ-WH HazeIC: 100W A19, 100W MB19, 100W BT15
TC: 100W A19, 150W A21
6" Aperture 664HZ-WH HazeIC: 100W A19, 100W MB19, 100W BT15
TC: 100W A19, 150W A21
6" Aperture 180 Degree Double Wall Wash 663C-WH Clear Alzak Baffled Downlight 633W-WH White Baffle
® 633B-WH Black BaffleIC: 100W A19
TC: 100W A19, 150W A21
6"Aperture 663G-WH Gold Alzak
® 663HZ-WH HazeIC: 100W A19, 100W MB19, 100W BT15
TC: 100W A19, 150W A21
6"Aperture
* IC housing only. TC housing has dualposition for A19 and A21 lamps. 28
