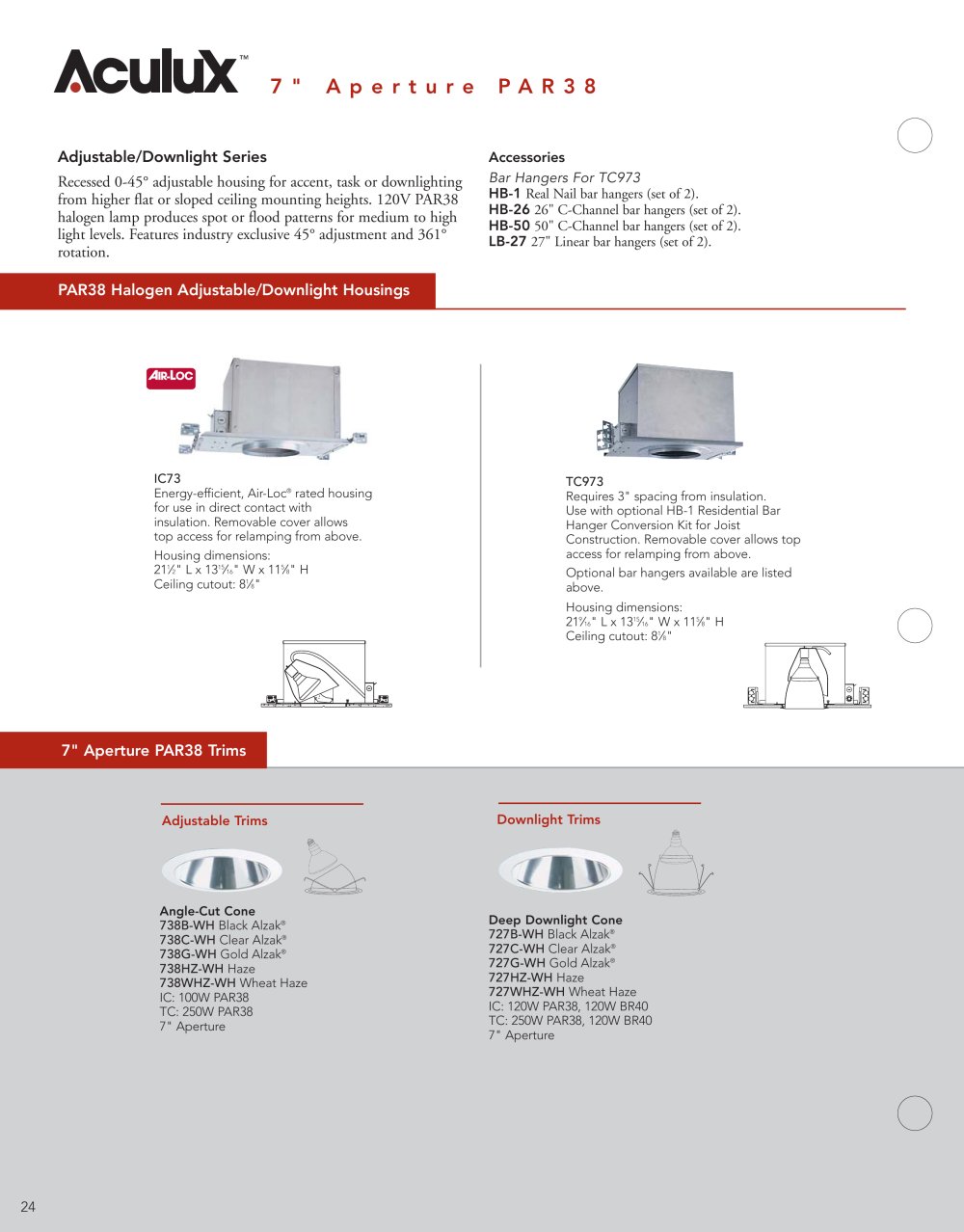

7" Aperture PAR38

Adjustable/Downlight Series

Accessories

Recessed 0-45°adjustable housing for accent, task or downlightingfrom higher flat or sloped ceiling mounting heights. 120V PAR38 halogen lamp produces spot or flood patterns for medium to high light levels. Features industry exclusive 45°adjustment and 361° rotation.

Bar Hangers For TC973 HB-1 Real Nail bar hangers (set of 2). HB-26 26" C-Channel bar hangers (set of 2). HB-50 50" C-Channel bar hangers (set of 2). LB-27 27" Linear bar hangers (set of 2).

PAR38 Halogen Adjustable/Downlight Housings

IC73 TC973 Energy-efficient, Air-Loc
® rated housingfor use in direct contact with insulation. Removable cover allows top access for relamping from above.Housing dimensions: 21 Requires 3" spacing from insulation. Use with optional HB-1 Residential Bar Hanger Conversion Kit for Joist Construction. Removable cover allows top access for relamping from above.Optional bar hangers available are listedabove.Housing dimensions: 21
1 �
2 " L x 13
15 �
16 " W x 11
5 �
8 " HCeiling cutout: 8
1 �
8 "
9 �
16 " L x 13
15 �
16 " W x 11
5 �
8 " HCeiling cutout: 8
1 �
8 "
8"

7" Aperture PAR38 Trims

Adjustable Trims Downlight Trims

Deep Downlight Cone 727B-WH Black Alzak Angle-Cut Cone 738B-WH Black Alzak
® ® 738C-WH Clear Alzak
® ® 738G-WH Gold Alzak
® 727C-WH Clear Alzak
® 738HZ-WH Haze 727G-WH Gold Alzak 738WHZ-WH Wheat HazeIC: 100W PAR38 TC: 250W PAR38 7" Aperture 727HZ-WH Haze 727WHZ-WH Wheat HazeIC: 120W PAR38, 120W BR40 TC: 250W PAR38, 120W BR40 7" Aperture

24
