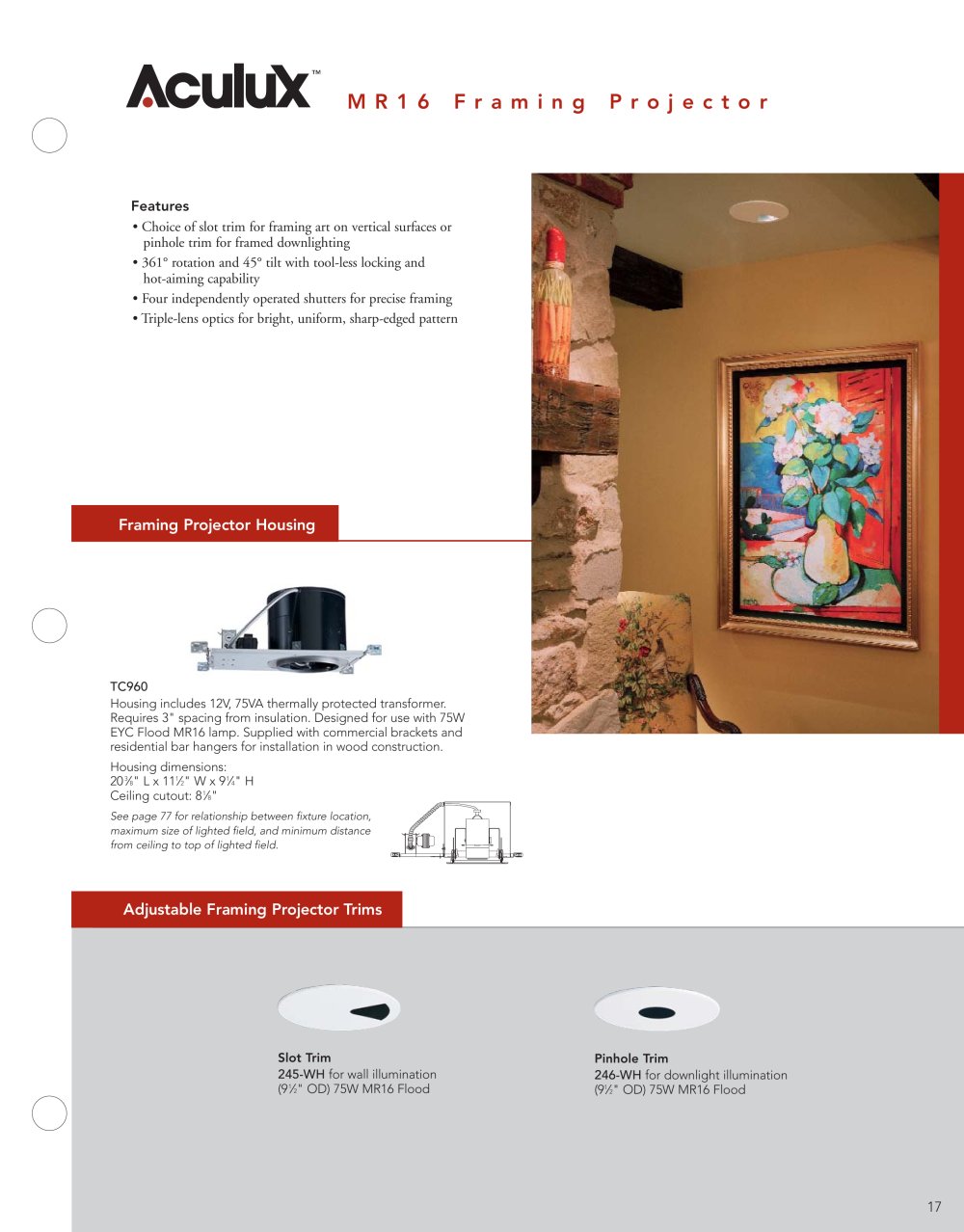

MR16 Framing Projector
Features Choice of slot trim for framing art on vertical surfaces or pinhole trim for framed downlighting 361rotation and 45tilt with tool-less locking andhot-aiming capability Four independently operated shutters for precise framing
Triple-lens optics for bright, uniform, sharp-edged pattern
Framing Projector Housing
TC960 Housing includes 12V, 75VA thermally protected transformer.Requires 3" spacing from insulation. Designed for use with 75W
EYC Flood MR16 lamp. Supplied with commercial brackets and
residential bar hangers for installation in wood construction.Housing dimensions: 20
3 ⁄
8 " L x 11
1 ⁄
2 " W x 9
1 ⁄
4 " HCeiling cutout: 8
1 ⁄
8 "
See page 77 for relationship between fixture location, maximum size of lighted field, and minimum distancefrom ceiling to top of lighted field. Adjustable Framing Projector Trims
Slot Trim Pinhole Trim 245-WH for wall illumination(9
1 246-WH for
downlight illumination (9 ⁄
2 " OD) 75W MR16 Flood
1 ⁄
2 " OD) 75W MR16 Flood
