5
5 â„

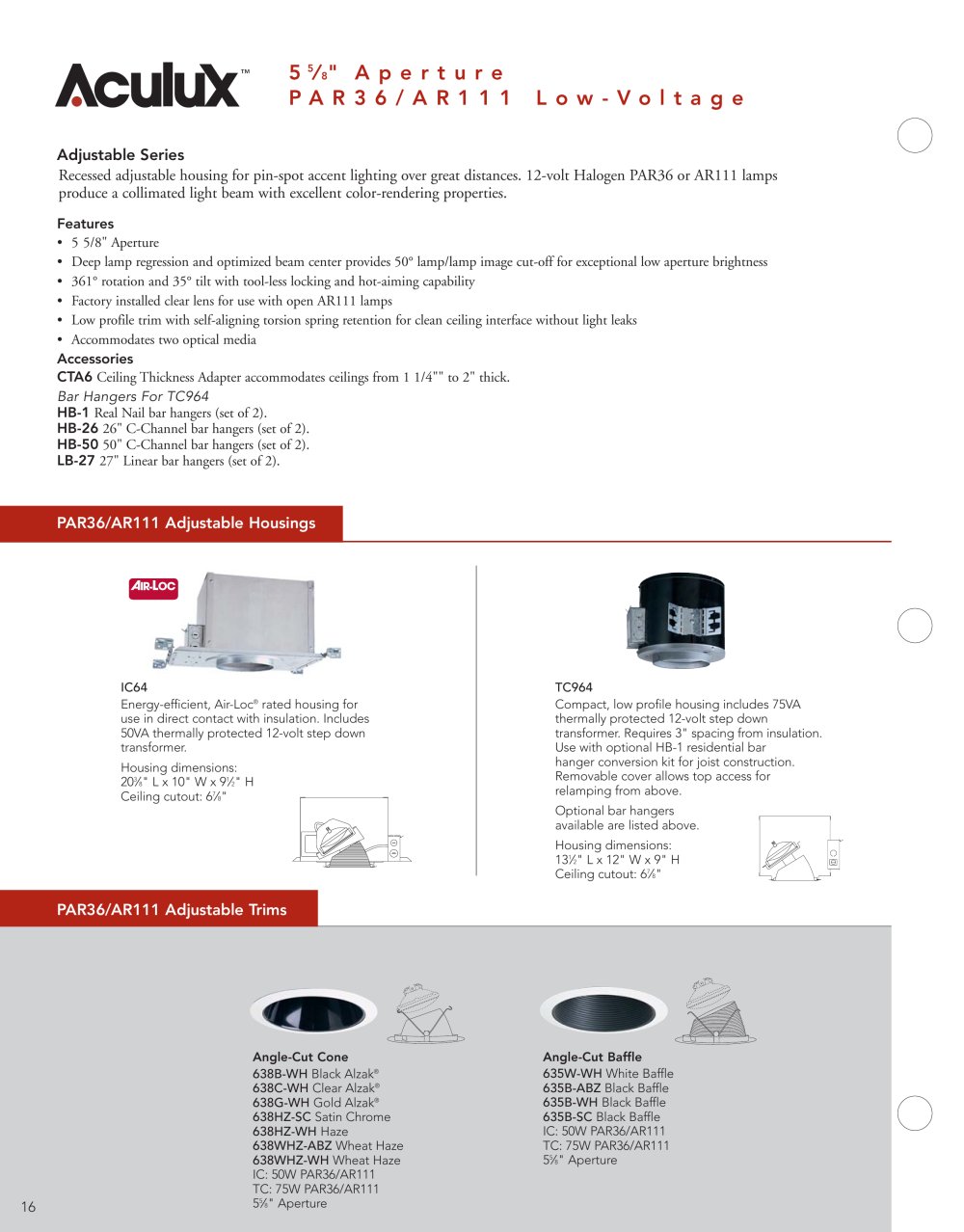

8 "Aperture PAR36/AR111 Low-Voltage
Adjustable Series Recessed adjustable housing for pin-spot accent lighting over great distances. 12-volt Halogen PAR36 or AR111 lampsproduce a collimated light beam with excellent color-rendering properties.
Features • 55/8"Aperture• Deep lamp regression and optimized beam center provides 50°lamp/lamp image cut-off for exceptional low aperture brightness
• 361°rotation and 35°tilt with tool-less locking and hot-aiming capability• Factory installed clear lens for use with open AR111 lamps• Low profile trim with self-aligning torsion spring retention for clean ceiling interface without light leaks
• Accommodates two optical media AccessoriesCTA6 Ceiling Thickness Adapter accommodates ceilings from 1 1/4""to 2"thick. Bar Hangers For TC964 HB-1 Real Nail bar hangers (set of 2). HB-26 26" C-Channel bar hangers (set of 2). HB-50 50" C-Channel bar hangers (set of 2). LB-27 27" Linear bar hangers (set of 2).
PAR36/AR111 Adjustable Housings
IC64 TC964 Energy-efficient, Air-Loc
® rated housing foruse in direct contact with insulation. Includes
50VA thermally protected 12-volt step down
transformer. Housing dimensions:20 Compact, low profile housing includes 75VAthermally protected 12-volt step down transformer. Requires 3" spacing from insulation.
Use with optional HB-1 residential bar hanger conversion kit for joist construction.
Removable cover allows top access for relamping from above.Optional bar hangersavailable are listed above.Housing dimensions:13
3 â„
8 " L x 10" W x 9
1 â„
2 " HCeiling cutout: 6
7 â„
8 "
1 â„
2 " L x 12" W x 9" HCeiling cutout: 6
7 â„
8 "
PAR36/AR111 Adjustable Trims
Angle-Cut Cone Angle-Cut Baffle 638B-WH Black Alzak
® 635W-WH White Baffle 638C-WH Clear Alzak
® 635B-ABZ Black Baffle 638G-WH Gold Alzak
® 635B-WH Black Baffle 638HZ-SC Satin Chrome 635B-SC Black BaffleIC: 50W PAR36/AR111
TC: 75W PAR36/AR111
5 638HZ-WH Haze 638WHZ-ABZ Wheat Haze 638WHZ-WH Wheat HazeIC: 50W PAR36/AR111
TC: 75W PAR36/AR111
5
5 â„
8 " Aperture
16
5 â„
8 " Aperture
