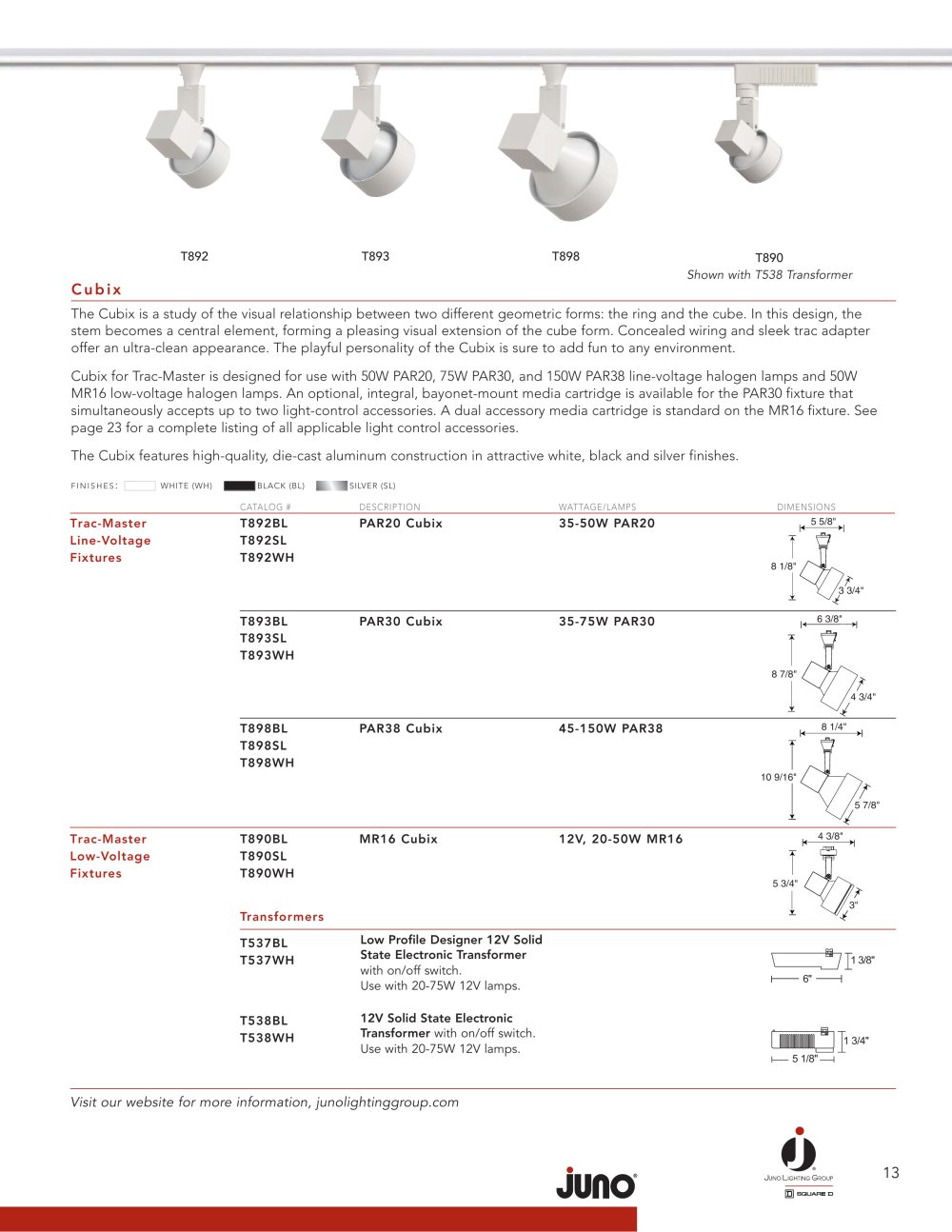

T892
T893
T898
T890
Shown with T538 Transformer
Cubix
The Cubix is a study of the visual relationship between two different geometric forms: the ring and the cube. In this design, the stem becomes a central element, forming a pleasing visual extension of the cube form. Concealed wiring and sleek trac adapter offer an ultra-clean appearance. The playful personality of the Cubix is sure to add fun to any environment.
Cubix for Trac-Master is designed for use with 50W PAR20, 75W PAR30, and 150W PAR38 line-voltage halogen lamps and 50W MR16 low-voltage halogen lamps. An optional, integral, bayonet-mount media cartridge is available for the PAR30 fixture that simultaneously accepts up to two light-control accessories. A dual accessory media cartridge is standard on the MR16 fixture. See page 23 for a complete listing of all applicable light control accessories.
The Cubix features high-quality, die-cast aluminum construction in attractive white, black and silver finishes.
I BLACK (BL) SILVER (SL)
description
WHITE (WH)
finishes:
wattage/lamps
PAR20 Cubix
5 5/8"
Trac-Master
Line-Voltage
Fixtures
T892BL T892SL T892WH
35-50W PAR20
8 1/8"
3 3/4"
. 6 3/8"
PAR30 Cubix
T893BL T893SL T893WH
35-75W PAR30
8 7/8"
7
4 3/4"
8 1/4"
N-H
PAR38 Cubix
T898BL T898SL T898WH
45-150W PAR38
10 9/16"
4 3/8" K———*\
MR16 Cubix
Trac-Master Low-Voltage Fixtures
T890BL T890SL T890WH
Transformers
12V, 20-50W MR16
Low Profile Designer 12V Solid State Electronic Transformer
with on/off switch.
Use with 20-75W 12V lamps.
T537BL T537WH
CZ^7J 3/8"
12V Solid State Electronic Transformer with on/off switch. Use with 20-75W 12V lamps.
T538BL T538WH
[¡¡¡¡¡31 3/4" I-5 1/8"—I
Visit our website for more information, junolightinggroup.com
J
Juno Lighting Group
13
 13
