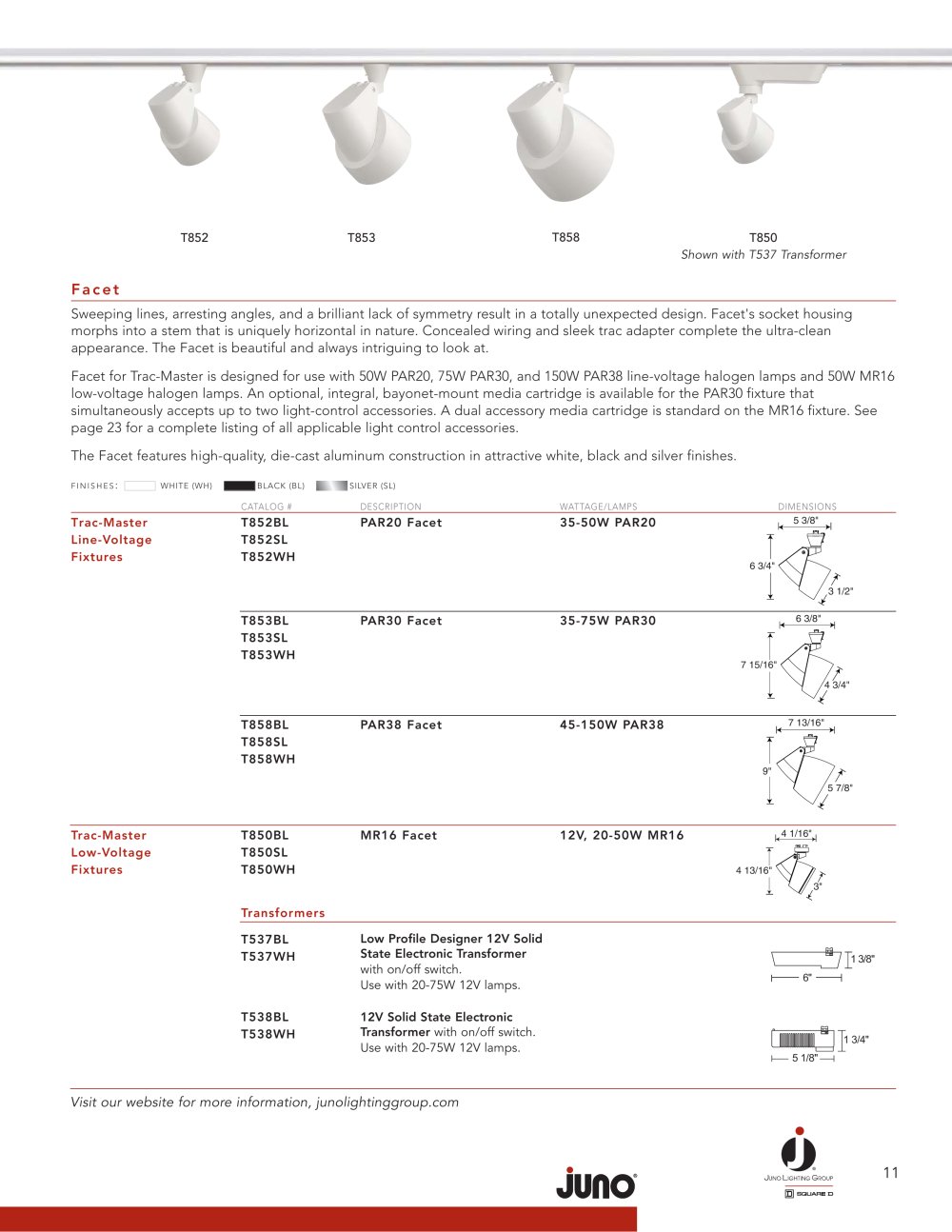

T858
T850
Shown with T537 Transformer
T852
T853
Facet
Sweeping lines, arresting angles, and a brilliant lack of symmetry result in a totally unexpected design. Facet's socket housing morphs into a stem that is uniquely horizontal in nature. Concealed wiring and sleek trac adapter complete the ultra-clean appearance. The Facet is beautiful and always intriguing to look at.
Facet for Trac-Master is designed for use with 50W PAR20, 75W PAR30, and 150W PAR38 line-voltage halogen lamps and 50W MR16 low-voltage halogen lamps. An optional, integral, bayonet-mount media cartridge is available for the PAR30 fixture that simultaneously accepts up to two light-control accessories. A dual accessory media cartridge is standard on the MR16 fixture. See page 23 for a complete listing of all applicable light control accessories.
The Facet features high-quality, die-cast aluminum construction in attractive white, black and silver finishes.
] WHITE (WH) ^^■bI/vK (BL) SILVER (SL)
CATALOG # DESCRIPTION
finishes:
WATTAGE/LAMPS
DIMENSIONS
5 3/8" <->J
Trac-Master
Line-Voltage
Fixtures
T852BL T852SL T852WH
PAR20 Facet
35-50W PAR20
3 1/2"
T853BL T853SL T853WH
PAR30 Facet
35-75W PAR30
7 15/16"
4 3/4"
7 13/16"
N-H
T858BL T858SL T858WH
PAR38 Facet
45-150W PAR38
4 1/16" <-—-H
Trac-Master
Low-Voltage
Fixtures
T850BL T850SL T850WH
Transformers
MR16 Facet
12V, 20-50W MR16
4 "h/^
T537BL Low Profile Designer 12V Solid
T537WH State Electronic Transformer
with on/off switch.
Use with 20-75W 12V lamps.
12V Solid State Electronic Transformer with on/off switch. Use with 20-75W 12V lamps.
T538BL T538WH
I-5 1/8"—I
Visit our website for more information, junolightinggroup.com
6
11
juno
Juno Lighting Group 1 1
