| | | Juno Aculux | | |
| | | |

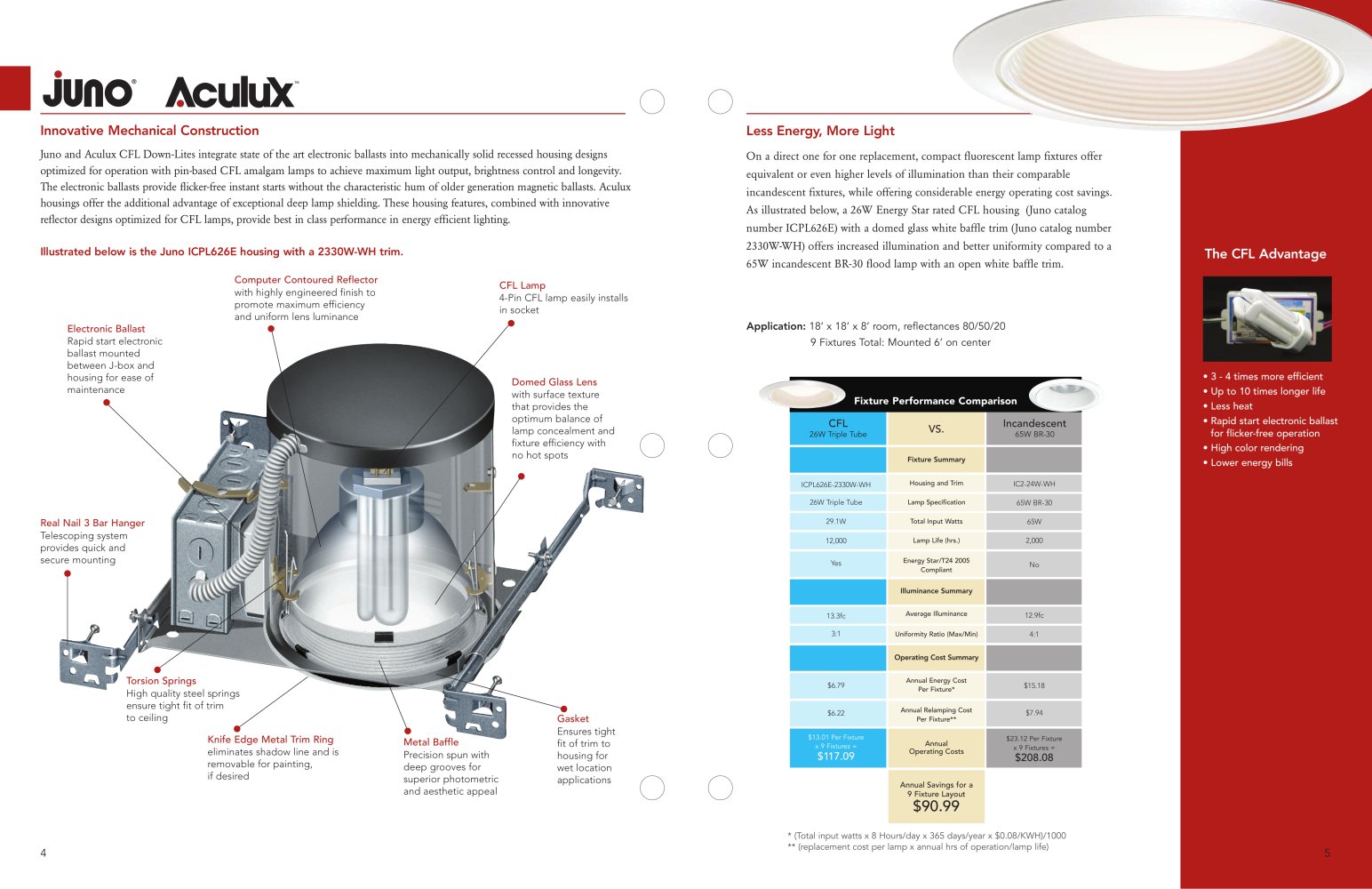

| | | innovative mechanical construction Juno and Aculux CFL Down-Lites integrate state of the art electronic ballasts into mechanically solid recessed housing designs optimized for operation with pin-based CFL amalgam lamps to achieve maximum light output, brightness control and longevity. The electronic ballasts provide flicker-free instant starts without the characteristic hum of older generation magnetic ballasts. Aculux housings offer the additional advantage of exceptional deep lamp shielding. These housing features, combined with innovative reflector designs optimized for CFL lamps, provide best in class performance in energy efficient lighting. Illustrated below is the Juno ICPL626E housing with a 2330W-WH trim. | | |
| | | On a direct one for one replacement, compact fluorescent lamp fixtures offer equivalent or even higher levels of illumination than their comparable incandescent fixtures, while offering considerable energy operating cost savings. As illustrated below, a 26W Energy Star rated CFL housing (Juno catalog number ICPL626E) with a domed glass white baffle trim (Juno catalog number 2330W-WH) offers increased illumination and better uniformity compared to a 65W incandescent BR-30 flood lamp with an open white baffle trim. | | |
| | | |
| | | |
| | | Computer Contoured Reflector with highly engineered finish to promote maximum efficiency and uniform lens luminance | | |
| | | CFL Lamp 4-Pin CFL lamp easily installs in socket | | |
| | | |
| | | |
| | | Application: 18' x 18' x 8' room, reflectances 80/50/20 9 Fixtures Total: Mounted 6' on center | | |
| | | 1 | | |
| | | Electronic Ballast Rapid start electronic ballast mounted between J-box and housing for ease of maintenance | | |
| | | |
| | | |
| | | • 3 - 4 times more efficient • Up to 10 times longer life • Less heat • Rapid start electronic ballast for flicker-free operation • High color rendering • Lower energy bills | | |
| | | | | | | | | | | ^^^^b^ Fixture Performance Comparison ^QH^^H | | | | CFL | VS. | Incandescent | | | | 26W Triple Tube | 65W BR-30 | | | | | Fixture Summary | | | | | ICPL626E-2330W-WH | Housing and Trim | IC2-24W-WH | | | | 26W Triple Tube | Lamp Specification | 65W BR-30 | | | | 29.1W | Total Input Watts | 65W | | | | 12,000 | Lamp Life (hrs.) | 2,000 | | | | Yes | Energy Star/T24 2005 Compliant | No | | | | | Illuminance Summary | | | | | 13.3fc | Average Illuminance | 12.9fc | | | | 3:1 | Uniformity Ratio (Max/Min) | 4:1 | | | | | Operating Cost Summary | | | | | $6.79 | Annual Energy Cost Per Fixture* | $15.18 | | | | $6.22 | Annual Relamping Cost Per Fixture** | $7.94 | | | | $13.01 Per Fixture | Annual Operating Costs | $23.12 Per Fixture | | | | x 9 Fixtures = $117.09 | x 9 Fixtures = $208.08 | | | | | | | | | | |
| | | Domed Glass Lens with surface texture that provides the optimum balance of lamp concealment and fixture efficiency with no hot spots | | |
| | | |
| | | |
| | | |
| | | Real Nail 3 Bar Hange Telescoping system provides quick and secure mounting | | |
| | | |
| | | Torsion Springs High quality steel springs ensure tight fit of trim to ceiling | | |
| | | Gasket Ensures tight fit of trim to housing for wet location applications | | |
| | | |
| | | Knife Edge Metal Trim Ring eliminates shadow line and is removable for painting, if desired | | |
| | | Metal Baffle Precision spun with deep grooves for superior photometric and aesthetic appea | | |
| | | |
| | | |
| | | Annual Savings for a 9 Fixture Layout $90.99 | | |
| | | |
| | | |
| | | |
| | | (Total input watts x 8 Hours/day x 365 days/year x $0.08/KWH)/1000 * (replacement cost per lamp x annual hrs of operation/lamp life) | | |
| | | 4 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
